CS-452 VL - Echo Chainsaw Air Cleaner, Ignition, Starter Parts Diagram

Chainsaw

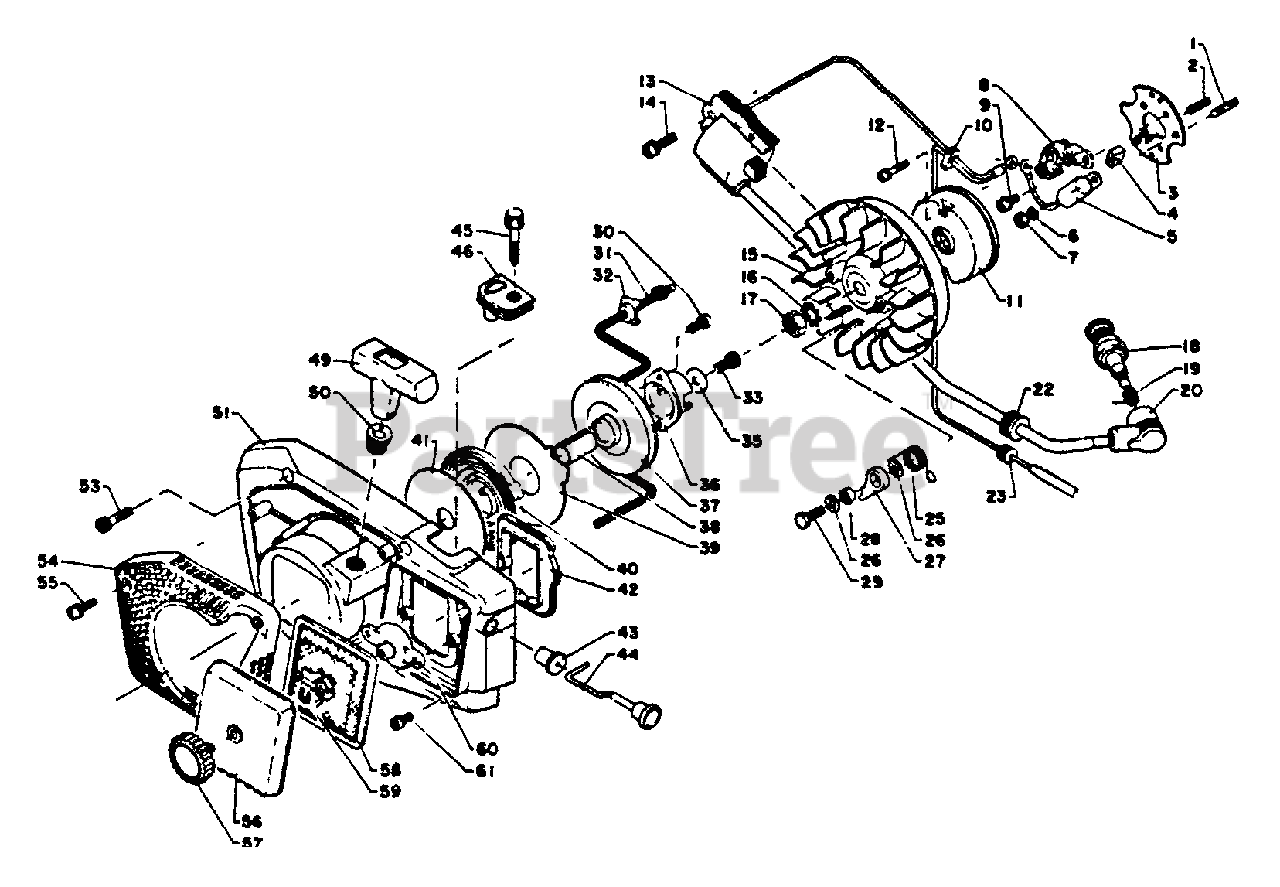

Air Cleaner, Ignition, Starter Parts Diagram

  • Title

Echo 15600010131

MAGNETO ASS'Y
(Superseded to Discontinued)

$

$

Not available

1

Echo 10026203430

STUD
(Superseded to Discontinued)

$

$

Not available

2

Echo 10025703430

STUD
(Superseded to Discontinued)

$

$

Not available

3

Echo 15613210131

PLATE, STATOR
(Superseded to Discontinued)

$

$

Not available

4

Echo 15613410130

OILER
(Superseded to Discontinued)

$

$

Not available

5

Echo 15612710130

CONDENSER
(Superseded to Discontinued)

$

$

Not available

6

Echo 900605-00004

WASHER, SPRING 4 MM

$0.99

$

In Stock, Qty 20+

0

7

Echo 900500-00004

NUT M4

$0.99

$

In Stock, Qty 20+

0

8

Echo 15610110131

CONTACT POINT SET
(Superseded to Discontinued)

$

$

Not available

9

Echo 90024204008

SCREW 4×8

$0.99

$

In Stock, Qty 8

0

10

Echo 15611410130

RUBBER BUSH (B)
(Superseded to Discontinued)

$

$

Not available

11

Echo 15411203432

COVER, BREAKER

$5.99

$

Usually ships in 2-4 days

0

12

Echo 90024203018

SCREW 3×18

$0.99

$

Usually ships in 2-4 days

0

13

Echo 15612610130

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

14

Echo 900242-05020

SCREW 5×20
(Superseded to 90024205022)

$0.99

$

In Stock, Qty 7

0

15

Echo 15620010130

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

16

Echo 90061100008

WASHER

$0.99

$

Usually ships in 2-4 days

0

17

Echo 90050000008

NUT M8

$0.99

$

In Stock, Qty 20+

0

18

Echo 159010-00330

SPARK PLUG - BM6A
(Superseded to Discontinued)

$

$

Not available

19

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

20

Echo 15901203433

CAP, SPARK PLUG

$8.49

$

In Stock, Qty 20+

0

22

Echo 15411003430

GROMMET
(Superseded to Discontinued)

$

$

Not available

23

Echo 15411103430

GROMMET
(Superseded to 15411103431)

$1.99

$

Usually ships in 2-4 days

0

25

Echo 17723402831

SPRING

$2.99

$

Usually ships in 2-4 days

0

26

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

27

Echo 17721802830

PAWL, STARTER

$7.49

$

Usually ships in 2-4 days

0

28

Echo 17721703430

SPACER

$1.99

$

Usually ships in 2-4 days

0

29

Echo 900100-05018

BOLT 5×18

$0.99

$

In Stock, Qty 8

0

30

Echo 90024104010

SCREW - 4×10
(Superseded to 90024204010)

$0.99

$

In Stock, Qty 20+

0

31

Echo 17722602830

ROPE, STARTER
(Superseded to 17722607060)

$12.99

$

In Stock, only 4 left!

0

32

Echo 17724602832

RETAINER, ROPE

$

$

Not available

33

Echo 90016205014

BOLT 5×14

$1.49

$

In Stock, Qty 7

0

35

Echo 177214-02830

WASHER 5.2×16×1.0

$0.99

$

In Stock, only 2 left!

0

36

Echo 17724302833

PAWL CATCHER

$12.99

$

Usually ships in 2-4 days

0

37

Echo 17721502834

REEL, ROPE
(Superseded to Discontinued)

$

$

Not available

38

Echo 17721602832

BUSHING

$1.99

$

In Stock, only 1 left!

0

39

Echo 17724203430

PLATE, STARTER
(Superseded to Discontinued)

$

$

Not available

40

Echo 17722002834

SPRING, RECOIL

$25.99

$

In Stock, only 1 left!

0

41

Echo 17722102830

PLATE, STARTER

$7.49

$

In Stock, only 2 left!

0

42

Echo 13032003431

PACKING
(Superseded to Discontinued)

$

$

Not available

43

Echo 17881003430

GROMMET
(Superseded to Discontinued)

$

$

Not available

44

Echo 17850103431

ROD, CHOKE
(Superseded to Discontinued)

$

$

Not available

45

Echo 17800703430

SCREW, IDLE ADJUST
(Superseded to Discontinued)

$

$

Not available

46

Echo 17821203430

GROMMET
(Superseded to Discontinued)

$

$

Not available

49

Echo 17722812330

HANDLE

$30.99

$

In Stock, Qty 12

0

50

Echo 17722700230

GUIDE, ROPE
(Superseded to 17722705330)

$

$

Not available

51

Echo 10150710130

CASE, STARTER
(Superseded to Discontinued)

$

$

Not available

53

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

54

Echo 10061610130

FILTER, DEBRIS
(Superseded to Discontinued)

$

$

Not available

55

Echo 90024204012

SCREW 4×12

$0.99

$

In Stock, Qty 20+

0

56

Echo 13031303430

COVER, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

57

Echo 13040610230

THUMBSCREW
(Superseded to Discontinued)

$

$

Not available

58

Echo 13030503430

FILTER, AIR

$

$

Not available

59

Echo 90070000004

E-RING 4

$0.99

$

In Stock, Qty 20+

0

60

Echo 13040503430

PLATE, PREVENT
(Superseded to Discontinued)

$

$

Not available

61

Echo 90024204008

SCREW 4×8

$0.99

$

In Stock, Qty 8

0

Echo 17720010130

STARTER ASSY
(Superseded to Discontinued)

$

$

Not available

62

Echo 17722914330

SPACER

$1.49

$

In Stock, Qty 5

0
