CS-452 VL - Echo Chainsaw Clutch Parts Diagram

Chainsaw

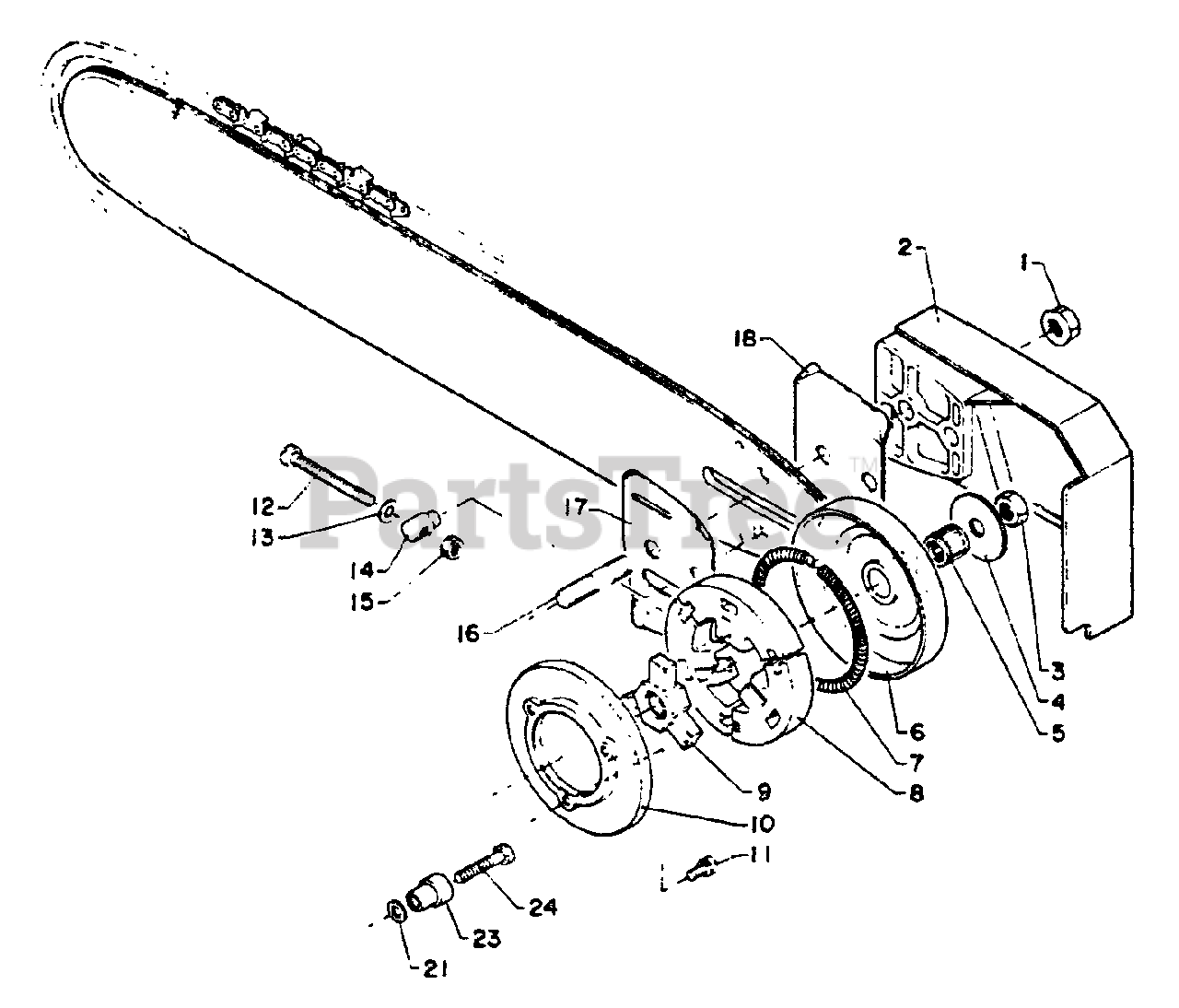

Clutch Parts Diagram

  • Title

1

Echo 43301912330

NUT - FLANGE
(Superseded to V265000200)

$1.99

$

In Stock, Qty 20+

0

2

Echo 43301003431

GUARD, SPROCKET
(Superseded to Discontinued)

$

$

Not available

3

Echo 10012903430

LOCKNUT
(Superseded to 61032003830)

$4.49

$

In Stock, Qty 12

0

4

Echo 17501503430

WASHER, CLUTCH

$2.49

$

Usually ships in 2-4 days

0

5

Echo 10001212330

BEARING, NEEDLE
(Superseded to 10001212331)

$10.99

$

In Stock, Qty 11

0

6

Echo 17500511030

DRUM, CLUTCH
(Superseded to 17500514330)

$57.99

$

Usually ships in 2-4 days

0

7

Echo 17501802831

SPRING, CLUTCH
(Superseded to Discontinued)

$

$

Not available

8

Echo 17501702830

SHOE, CLUTCH
(Superseded to Discontinued)

$

$

Not available

9

Echo 17501603430

HUB, CLUTCH
(Superseded to 17500016131)

$

$

Not available

10

Echo 10061803431

SEAL, DUST

$4.99

$

Usually ships in 2-4 days

0

11

Echo 90022004010

SCREW - 4X10

$0.99

$

Usually ships in 2-4 days

0

12

Echo 43301602830

SCREW, TENSIONER

$3.99

$

In Stock, only 1 left!

0

13

Echo 10024702830

WASHER - 5
(Superseded to Discontinued)

$

$

Not available

14

Echo 43301402830

TENSIONER, CHAIN

$4.99

$

In Stock, Qty 20+

0

15

Echo 43302202830

LOCKNUT - 5
(Superseded to 90056200005)

$1.49

$

In Stock, only 3 left!

0

16

Echo 43301100330

STUD, GUIDE BAR
(Superseded to Discontinued)

Note: S/N 001001 - 0153710

$

$

Not available

16

Echo 43301112330

STUD, GUIDE BAR

Note: S/N 0153711 & up

$2.49

$

In Stock, only 4 left!

0

17

Echo 43301312331

PLATE, GUIDE - INNER
(Superseded to 43301312332)

$6.49

$

In Stock, only 2 left!

0

18

Echo 43301212331

PLATE, GUIDE - OUTER
(Superseded to 43301212332)

$6.49

$

In Stock, only 3 left!

0

21

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

23

Echo 43300612830

CATCHER, CHAIN
(Superseded to 43300012830)

$

$

Not available

24

Echo 90022005025

SCREW - 5X25

$0.99

$

In Stock, Qty 5

0
