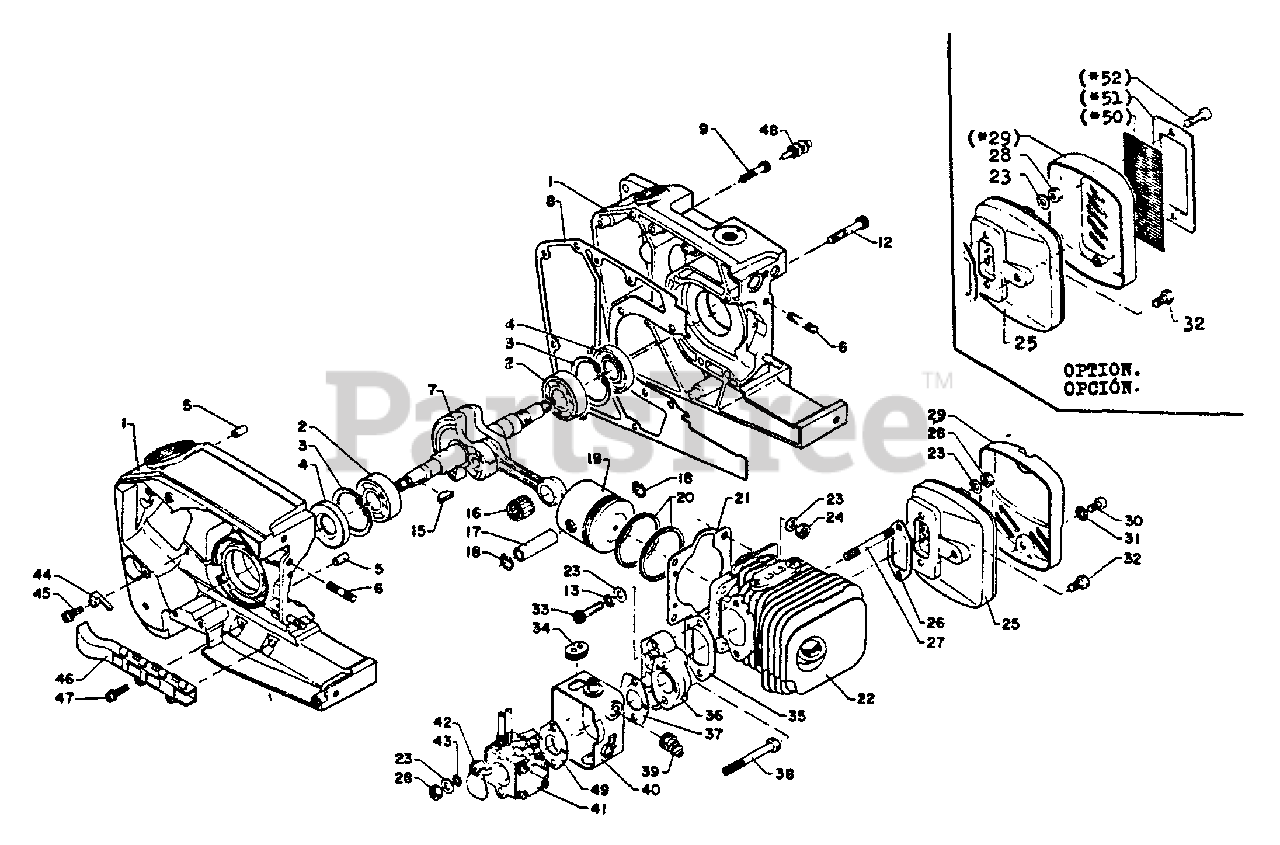

Engine, Intake, Exhaust, Crankcase Parts Diagram

  • Title

1

Echo 10020010131

CRANKCASE KIT
(Superseded to 10020010132)

$

$

Not available

2

Echo 90081006202

BEARING, BALL - 6202

$9.99

$

In Stock, Qty 14

0

3

Echo 90070200035

RING, RETAINING - 35

$1.99

$

In Stock, Qty 16

0

4

Echo 10021302830

SEAL, OIL

$6.49

$

In Stock, Qty 10

0

5

Echo 10021502830

PIN - LOCATING

$0.99

$

Usually ships in 2-4 days

0

6

Echo 10021400830

STUD
(Superseded to Discontinued)

$

$

Not available

7

Echo 10010003430

CRANKSHAFT ASSY
(Superseded to Discontinued)

$

$

Not available

8

Echo 10024210130

GASKET, CRANKCASE
(Superseded to Discontinued)

$

$

Not available

9

Echo 90016204020

SCREW - 4X20

$1.49

$

In Stock, Qty 20+

0

12

Echo 90016205030

SCREW - 5X30

$0.99

$

In Stock, Qty 5

0

13

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, only 4 left!

0

15

Echo 10014200310

KEY

$1.49

$

Usually ships in 2-4 days

0

16

Echo 10001212330

BEARING, NEEDLE
(Superseded to 10001212331)

$10.99

$

In Stock, Qty 11

0

17

Echo 10001303430

PIN, PISTON
(Superseded to Discontinued)

$

$

Not available

18

Echo 10001500120

RING, RETAINING - 8

$0.99

$

In Stock, Qty 12

0

19

Echo 10001010130

PISTON
(Superseded to 10000010130)

$

$

Not available

20

Echo 10001103430

RING, PISTON
(Superseded to 10001112330)

$7.49

$

In Stock, only 2 left!

0

21

Echo 10101003430

GASKET, CYLINDER
(Superseded to 10101003431)

$

$

Not available

22

Echo 10100010130

CYLINDER
(Superseded to Discontinued)

$

$

Not available

23

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

24

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

25

Echo 14560503432

MUFFLER ASSY
(Superseded to Discontinued)

$

$

Not available

26

Echo 14551003430

GASKET, EXHAUST
(Superseded to 14551003431)

$

$

Not available

27

Echo 10102503430

STUD

$1.49

$

Usually ships in 2-4 days

0

28

Echo 43302000830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 20+

0

29

Echo 14561303431

LID, MUFFLER
(Superseded to Discontinued)

$

$

Not available

30

Echo 90022005016

SCREW - 5X16

$0.99

$

In Stock, Qty 10

0

31

Echo 90061000005

LOCKWASHER - 5

$0.99

$

Usually ships in 2-4 days

0

32

Echo 90010005010

BOLT - 5X10

$0.99

$

Usually ships in 2-4 days

0

33

Echo 90010505020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

34

Echo 12901003430

GROMMET
(Superseded to Discontinued)

$

$

Not available

35

Echo 13001003431

GASKET, INTAKE
(Superseded to 13001003432)

$

$

Not available

36

Echo 13000503434

CASE, CARBURETOR
(Superseded to Discontinued)

$

$

Not available

37

Echo 13001603430

GASKET, INTAKE
(Superseded to 13001603431)

$

$

Not available

38

Echo 13002103430

BOLT

$1.49

$

Usually ships in 2-4 days

0

39

Echo 17821003430

GROMMET
(Superseded to 17821039130)

$2.49

$

In Stock, Qty 16

0

40

Echo 13030603431

CASE, CARBURETOR
(Superseded to Discontinued)

$

$

Not available

41

Echo 12300010130

CARBURETOR WA-38

$80.99

$

Usually ships in 2-4 days

0

42

Echo 17851503430

SHUTTER, CHOKE
(Superseded to Discontinued)

$

$

Not available

43

Echo 17851600830

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

44

Echo 15911210130

CLIP

$1.49

$

Usually ships in 2-4 days

0

45

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

46

Echo 15910510130

CLAMP
(Superseded to Discontinued)

$

$

Not available

47

Echo 90024204014

SCREW - 4X14

$0.99

$

In Stock, Qty 15

0

48

Echo 10027810130

SEAL, DUST

$2.49

$

Usually ships in 2-4 days

0

49

Echo 13002210130

GASKET, INTAKE
(Superseded to 13002210131)

$

$

Not available

29

Echo 14586103430

COVER, MUFFLER
(Superseded to Discontinued)

Note: OPTIONAL

$

$

Not available

50

Echo 14586203431

SCREEN, SPARK ARRESTOR
(Superseded to Discontinued)

Note: OPTIONAL

$

$

Not available

51

Echo 14586303431

RETAINER, SCREEN

Note: OPTIONAL

$4.99

$

In Stock, only 1 left!

0

52

Echo 90022005016

SCREW - 5X16

Note: OPTIONAL

$0.99

$

In Stock, Qty 10

0
