CS-452 VL - Echo Chainsaw Handles S/N: 023442 - 999999 Parts Diagram

Chainsaw

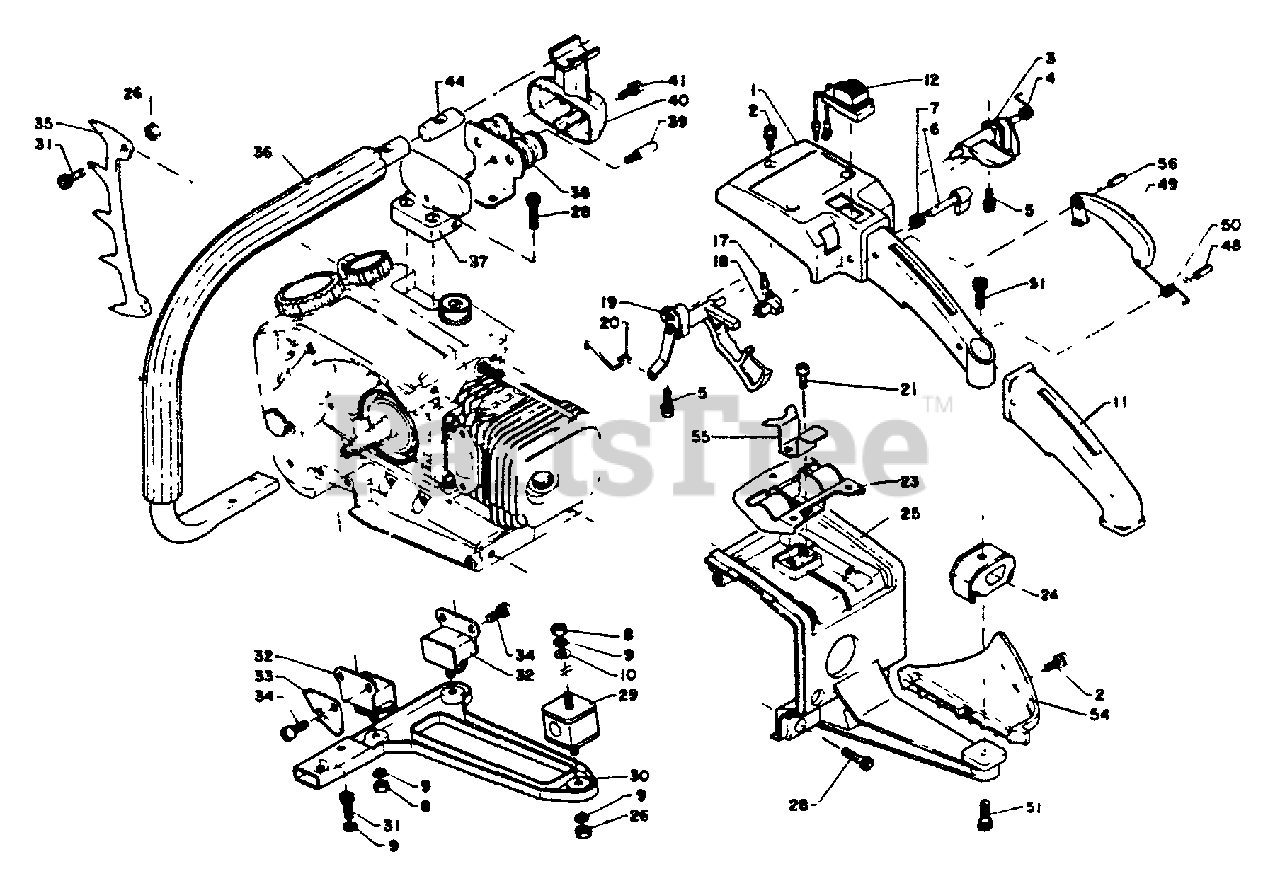

Handles S/N: 023442 - 999999 Parts Diagram

  • Title

1

Echo 35111010130

HANDLE, REAR
(Superseded to Discontinued)

$

$

Not available

2

Echo 900242-04014

SCREW 4×14

$0.99

$

In Stock, Qty 5

0

3

Echo 70700510130

PUSH LEVER
(Superseded to Discontinued)

$

$

Not available

4

Echo 70701703430

SPRING

$2.49

$

In Stock, only 4 left!

0

5

Echo 900242-04014

SCREW 4×14

$0.99

$

In Stock, Qty 5

0

6

Echo 17800803430

LEVER, THROTTLE
(Superseded to Discontinued)

$

$

Not available

7

Echo 17801303430

SPRING, THROTTLE LOCK

$1.99

$

Usually ships in 2-4 days

0

8

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

9

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

10

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

11

Echo 35111110130

GRIP
(Superseded to Discontinued)

$

$

Not available

12

Echo 16340012330

IGNITION SWITCH ASSY
(Superseded to Discontinued)

$

$

Not available

17

Echo 17804510630

PIN, LOCKING

$1.49

$

In Stock, Qty 5

0

18

Echo 17801211030

LOCKOUT, TRIGGER

$3.49

$

Usually ships in 2-4 days

0

19

Echo 17830610130

TRIGGER, THROTTLE
(Superseded to Discontinued)

$

$

Not available

20

Echo 17801103430

ROD, THROTTLE
(Superseded to 17801110130)

$

$

Not available

21

Echo 90024105012

SCREW 5×12

$0.99

$

Usually ships in 2-4 days

0

23

Echo 35110510130

CUSHION

$17.99

$

Usually ships in 2-4 days

0

24

Echo 35110710130

CUSHION
(Superseded to Discontinued)

$

$

Not available

25

Echo 10151410130

COVER, ENGINE
(Superseded to Discontinued)

$

$

Not available

26

Echo 43302202830

LOCKNUT - 5
(Superseded to 90056200005)

$1.99

$

In Stock, only 2 left!

0

28

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

29

Echo 35160903430

CUSHION RUBBER (L-L: 2)
(Superseded to Discontinued)

$

$

Not available

30

Echo 35161303431

BRACKET, HANDLE - LOWER
(Superseded to Discontinued)

$

$

Not available

31

Echo 90010505012

BOLT 5×12

$1.49

$

In Stock, only 3 left!

0

32

Echo 35160703430

CUSHION RUBBER (L-L)
(Superseded to Discontinued)

$

$

Not available

33

Echo 10027610130

PLATE, WIND PROOF

$1.99

$

Usually ships in 2-4 days

0

34

Echo 90024105012

SCREW 5×12

$0.99

$

Usually ships in 2-4 days

0

35

Echo 88021003430

BUMPER, SPIKED
(Superseded to 88020003430)

$

$

Not available

36

Echo 35150910130

HANDLE, FRONT
(Superseded to Discontinued)

$

$

Not available

37

Echo 35163110130

CUSHION RUBBER HOLDER
(Superseded to Discontinued)

$

$

Not available

38

Echo 35160510130

CUSHION (L-U)
(Superseded to Discontinued)

$

$

Not available

39

Echo 35163710130

STOPPER

$2.49

$

Usually ships in 2-4 days

0

40

Echo 35161410130

BRACKET, HANDLE - UPPER
(Superseded to Discontinued)

$

$

Not available

41

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

44

Echo 35161710531

SPACER

$3.99

$

Usually ships in 2-4 days

0

48

Echo 90034040013

PIN, SPRING 4×13

$0.99

$

In Stock, Qty 7

0

49

Echo 17809012730

LOCKOUT, THROTTLE

$5.49

$

Usually ships in 2-4 days

0

50

Echo 17809110130

SPRING, LOCKOUT RETURN

$2.49

$

Usually ships in 2-4 days

0

51

Echo 90016205014

BOLT 5×14

$1.49

$

In Stock, Qty 7

0

54

Echo 35113310130

HAND GUARD
(Superseded to Discontinued)

$

$

Not available

55

Echo 35112610130

STOPPER
(Superseded to Discontinued)

$

$

Not available

56

Echo 90034040016

PIN, SPRING 4×16
(Superseded to Discontinued)

$

$

Not available
