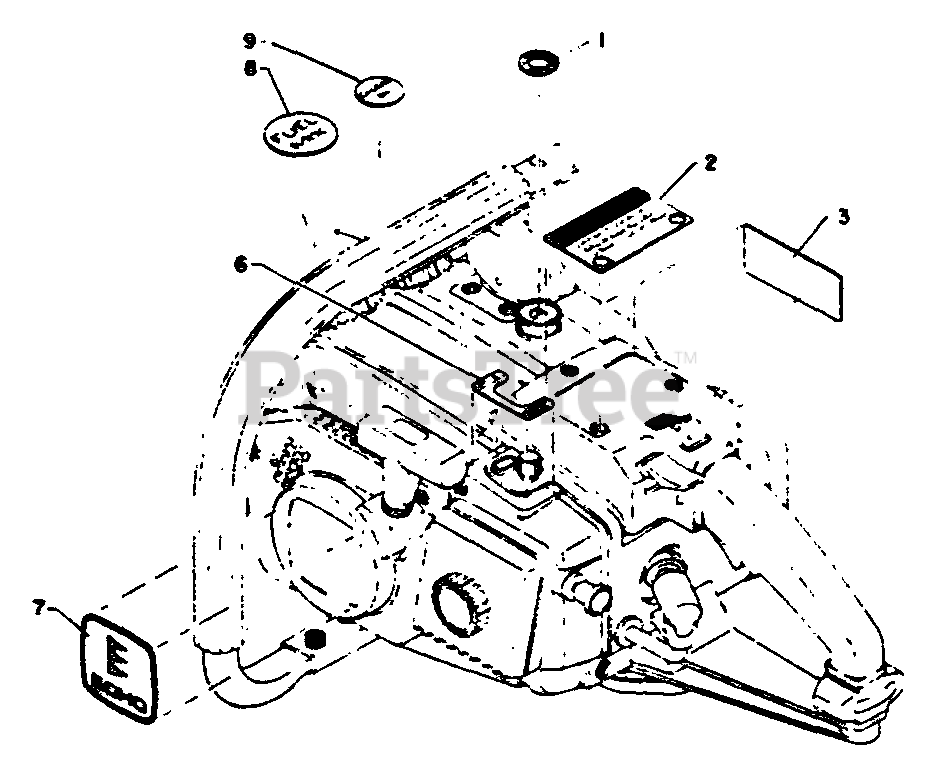

CS-452 VL - Echo Chainsaw Labels Parts Diagram

Dimensions: 381x261x261 mm (15x10.3x10.3 in); Weight: 6.0 kg (13.2 lb) Engine: 2-stroke, 44.3 cc, air-cooled; Carburetor: Walbro diaphragm; Magneto: flywheel breaker-point; Spark plug: NGK BM-6A/Champion CJ-8 Starter: recoil; Transmission: auto centrifugal clutch Fuel: regular gasoline; Motor oil: 1 pt (16.9 fl oz); Chain oil: 0.25 pt (8.5 fl oz) Chain: 3/8" pitch, .050" gauge, 60/64/72 links; Guide bar: 40 m50/43 m50/50 m50 Safety: front/rear hand guards, throttle lock, chain catcher, anti-vibration, optional chain brake.
