CS-452 VL - Echo Chainsaw Tools Parts Diagram

Dimensions: 381x261x261 mm (15x10.3x10.3 in); Weight: 6.0 kg (13.2 lb) Engine: 2-stroke, 44.3 cc, air-cooled; Carburetor: Walbro diaphragm; Magneto: flywheel breaker-point; Spark plug: NGK BM-6A/Champion CJ-8 Starter: recoil; Transmission: auto centrifugal clutch Fuel: regular gasoline; Motor oil: 1 pt (16.9 fl oz); Chain oil: 0.25 pt (8.5 fl oz) Chain: 3/8" pitch, .050" gauge, 60/64/72 links; Guide bar: 40 m50/43 m50/50 m50 Safety: front/rear hand guards, throttle lock, chain catcher, anti-vibration, optional chain brake.

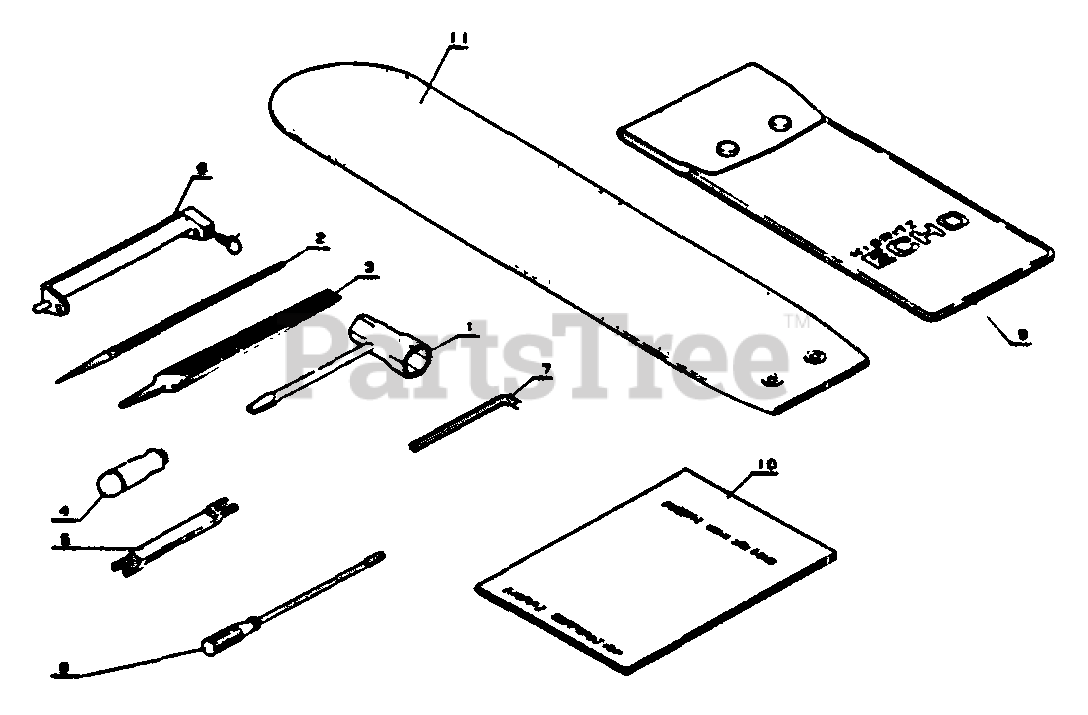

Tools Parts Diagram

  • Title

Echo 89600010130

TOOL SET
(Superseded to Discontinued)

$

$

Not available

1

Echo 89541006960

T-WRENCH 13×19×180
(Superseded to 89541006961)

$4.49

$

In Stock, only 2 left!

0

2

Echo 89751000230

ROUND FILE

Note: Optional Part, To Be Supplied On Special Order

$15.99

$

Usually ships in 2-4 days

0

3

Echo 89751100230

FLAT FILE
(Superseded to X620000030)

Note: Optional Part, To Be Supplied On Special Order

$13.99

$

Usually ships in 2-4 days

0

4

Echo 89751200230

FILE GRIP
(Superseded to Discontinued)

$

$

Not available

5

Echo 89751400231

GAUGE, DEPTH

$3.99

$

Usually ships in 2-4 days

0

6

Echo 89760000330

FILE HOLDER
(Superseded to Discontinued)

$

$

Not available

7

Echo A605000100

WRENCH, ALLEN 4 MM

$

$

Currently unavailable

8

Echo 89581100130

SCREWDRIVER, SLOTTED

Note: Standard Tool Supplied With Chain Saw

$4.99

$

Usually ships in 2-4 days

0

9

Echo 89851002830

BAG, TOOL
(Superseded to 89851039130)

$1.99

$

In Stock, only 3 left!

0

------------------

OWNER'S MANUAL

Note: Standard Tool Supplied With Chain Saw

$

$

Not available

11

Echo 89851310130

COVER, CHAIN
(Superseded to Discontinued)

$

$

Not available
