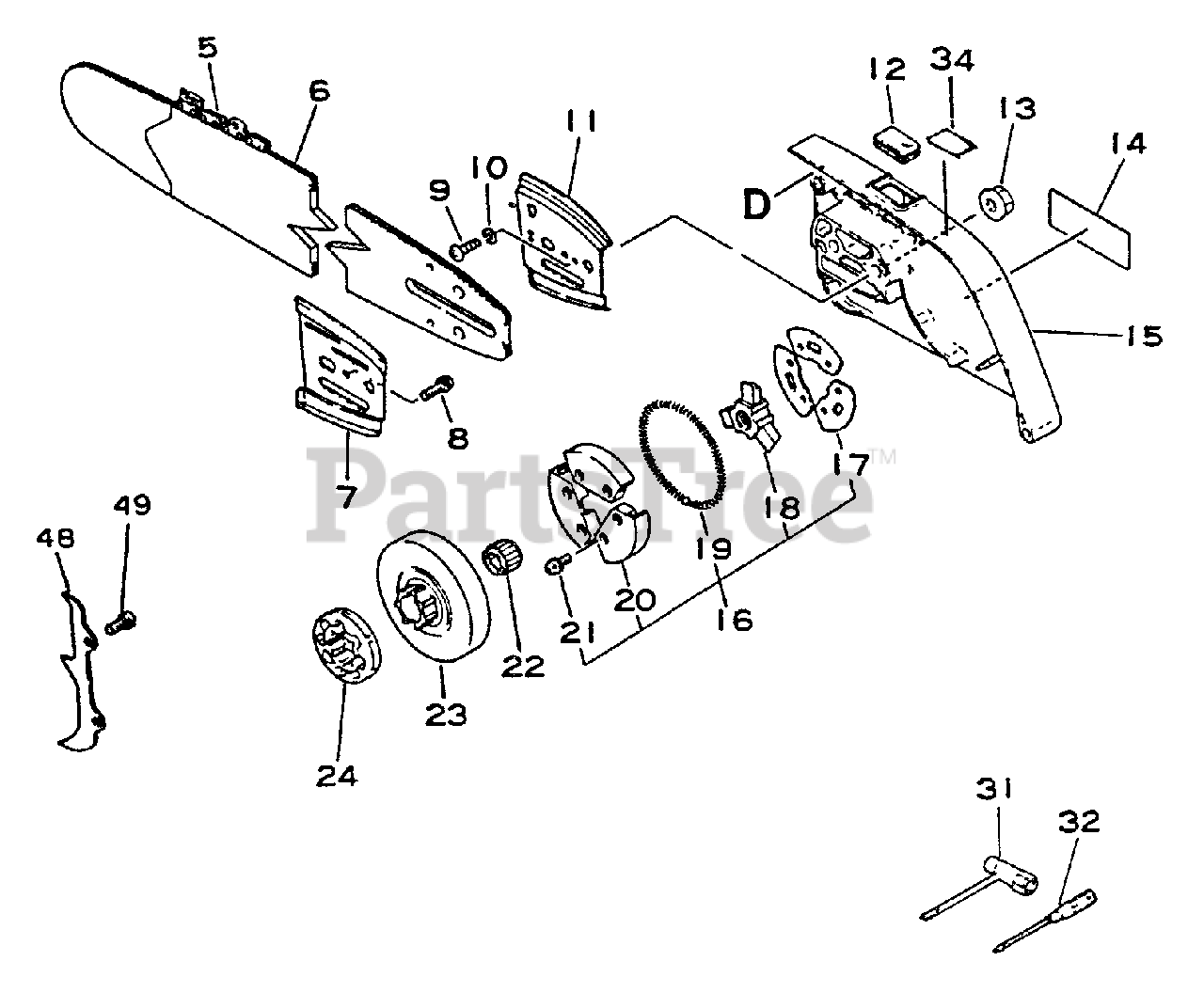

CS-4600 - Echo Chainsaw (SN: 0001001 - 0027191) Clutch, Cutting Attch, Tools Parts Diagram

Chainsaw

Clutch, Cutting Attch, Tools Parts Diagram

  • Title

------------------

SAW CHAIN

Note: See Chainsaw Accessories

$

$

Not available

6

GUIDE BAR

Note: See Chainsaw Accessories

$

$

Not available

7

Echo 43301319831

PLATE, GUIDE

$6.49

$

In Stock, only 1 left!

0

8

Echo 90028104008

SCREW - 4×8
(Superseded to 90023804008)

$0.99

$

In Stock, only 2 left!

0

9

Echo 90022003006

SCREW 3×6

$0.99

$

In Stock, Qty 12

0

10

Echo 90060500003

LOCKWASHER - 3

$0.99

$

Usually ships in 2-4 days

0

11

Echo 43301214533

PLATE, GUIDE
(Superseded to Discontinued)

$

$

Not available

12

Echo 43331219930

SEAL

$3.49

$

In Stock, only 1 left!

0

13

Echo 43301912330

NUT, FLANGE M8×1.25
(Superseded to V265000200)

$2.49

$

In Stock, Qty 20+

0

14

Echo 89011818332

LABEL - ECHO
(Superseded to 89011838130)

$

$

Not available

15

Echo 43300530130

GUARD, SPROCKET
(Superseded to Discontinued)

$

$

Not available

16

Echo 17500019830

CLUTCH ASSY
(Superseded to 17500037530)

$77.99

$

In Stock, only 2 left!

0

17

Echo 17501919830

PLATE, CLUTCH

$3.49

$

Usually ships in 2-4 days

0

18

Echo 17501619830

HUB, CLUTCH

$19.99

$

Usually ships in 2-4 days

0

19

Echo 17501819830

SPRING, CLUTCH

$3.99

$

Usually ships in 2-4 days

0

20

Echo 17500219830

SHOE SET, CLUTCH (3PCS)

$48.99

$

Usually ships in 2-4 days

0

21

Echo 90028104008

SCREW - 4×8
(Superseded to 90023804008)

$0.99

$

In Stock, only 2 left!

0

22

Echo 17501219830

BEARING, NEEDLE

$14.99

$

In Stock, only 3 left!

0

23

Echo 17510519831

DRUM, CLUTCH
(Superseded to 17510533330)

$

$

Not available

24

Echo 17511412530

SPROCKET, 0.325 RIM

$22.99

$

In Stock, Qty 11

0

25

Echo 89015530130

LABEL, CAUTION
(Superseded to X524000680)

$4.49

$

Usually ships in 2-4 days

0

31

Echo 89541006960

T-WRENCH 13×19×180
(Superseded to 89541006961)

$4.49

$

In Stock, only 2 left!

0

32

Echo 89581203930

SCREWDRIVER, PHILLIPS

$4.99

$

In Stock, only 1 left!

0

34

UNKNOWN

$

$

Not available

48

Echo 88020030131

SPIKE KIT, BUMPER
(Superseded to Discontinued)

$

$

Not available

49

Echo 88021130130

BOLT

$12.99

$

In Stock, only 1 left!

0
