CS-4600 - Echo Chainsaw (SN: 0001001 - 0027191) Handles, Fuel System Parts Diagram

Model CS-4600 technical data: dimensions 385 x 220 x 285 mm (15.2" x 8.66" x 11.2"); power head dry weight 4.3 kg (10.8 lb). 2-stroke, air-cooled single-cylinder engine, 45 cc displacement, diaphragm carburetor, magneto ignition (capacitor discharge), spark plug Champion CJ-6Y, recoil starter, automatic centrifugal clutch. Fuel ratio 32:1 (regular gas + oil) or 50:1 with approved oil. Fuel tank 0.47 L (15.9 fl oz), oil tank 0.29 L (9.8 fl oz). Standard features: hand guards, front/rear lock-out, throttle control, anti-vibration latch, high-speed idle kick guard, chain catcher, chain brake. Recommended chain guide bar combos: parts 1GA0AD3366 (16-e50k Oregon 33 sl), 18ADAD3372 (18-e50k Oregon 338 l), 20A0AD3378 (20-eb0k Oregon 335 l).

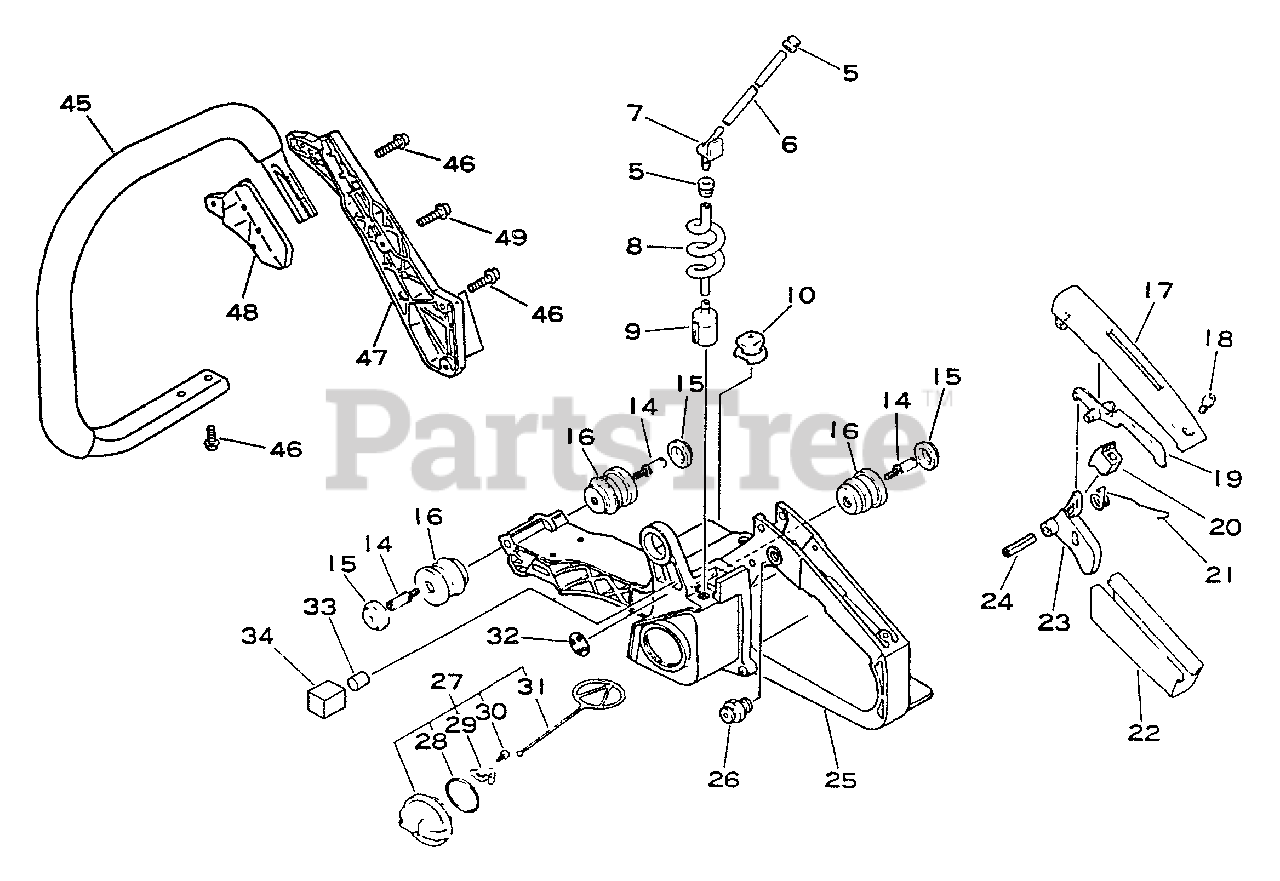

Handles, Fuel System Parts Diagram

  • Title

5

Echo 13211501460

GROMMET
(Superseded to 13211501461)

$1.99

$

In Stock, Qty 20+

0

6

Echo 13201219830

PIPE, FUEL - 3×6×100
(Superseded to 43721720760)

Note: RePower BULK OPTION: 90015

$6.49

$

In Stock, Qty 6

0

7

Echo 13201119830

CONNECTOR, PIPE
(Superseded to 13201119831)

$5.49

$

In Stock, Qty 7

0

8

Echo 13201019830

PIPE - SPIRAL
(Superseded to Discontinued)

$

$

Not available

9

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

$9.99

$

In Stock, Qty 20+

0

10

Echo 10025119830

CUSHION

$5.99

$

Usually ships in 2-4 days

0

14

Echo 10091533930

SCREW 5

$2.99

$

In Stock, Qty 20+

0

15

Echo 10091819830

CAP, CUSHION

$2.49

$

In Stock, Qty 20+

0

16

Echo 10091033930

CUSHION
(Superseded to Discontinued)

$

$

Not available

17

Echo 35115530131

COVER, HANDLE

$8.99

$

In Stock, only 2 left!

0

18

Echo 90024604014

SCREW TAPPING 4×14

$0.99

$

In Stock, Qty 8

0

19

Echo 17809030130

CONTROL, THROTTLE

$4.99

$

Usually ships in 2-4 days

0

20

Echo 17807332430

CUSHION, THROTTLE

$3.49

$

In Stock, only 1 left!

0

21

Echo 17804319830

SPRING, THROTTLE RETURN

$2.99

$

In Stock, Qty 5

0

22

Echo 35111130130

GRIP

$3.99

$

Usually ships in 2-4 days

0

23

Echo 17800533330

TRIGGER, THROTTLE
(Superseded to 17801019830)

$5.49

$

In Stock, only 2 left!

0

24

Echo 90034550025

PIN, SPRING

$2.49

$

Usually ships in 2-4 days

0

25

Echo 35110333330

HANDLE - REAR
(Superseded to 35110333331)

$240.99

$

Usually ships in 2-4 days

0

32

Echo 10025219830

CUSHION (B)

$0.99

$

In Stock, only 1 left!

0

33

Echo 13102019830

BREATHER
(Superseded to Discontinued)

$

$

Not available

34

Echo 13101919830

FILTER
(Superseded to Discontinued)

$

$

Not available

26

Echo 17830230130

LOCK, THROTTLE

$8.49

$

Usually ships in 2-4 days

0

27

Echo 13100419830

CAP ASSY
(Superseded to 13100437630)

$4.49

$

In Stock, Qty 18

0

28

Echo 90072000029

O-RING 29

$3.99

$

In Stock, Qty 12

0

29

Echo 13105019830

RETAINER, CONNECTOR
(Superseded to Discontinued)

$

$

Not available

30

Echo 90025803008

SCREW 3×8
(Superseded to Discontinued)

$

$

Not available

31

Echo A365-000050

CONNECTOR, CAP L= 60 MM
(Superseded to A365000050)

$2.49

$

In Stock, Qty 20+

0

45

Echo 35160633330

HANDLE, FRONT
(Superseded to Discontinued)

$

$

Not available

46

Echo 90028505020

SCREW - 5×20
(Superseded to 90024605020)

$

$

Not available

47

Echo 35161333330

BRACKET, HANDLE - OUTER
(Superseded to 35160333330)

$

$

Not available

48

Echo 35161433330

BRACKET, HANDLE - INNER
(Superseded to 35160333330)

$

$

Not available

49

Echo 90028105014

SCREW - 5×14
(Superseded to 90016205014)

$1.49

$

In Stock, Qty 6

0
