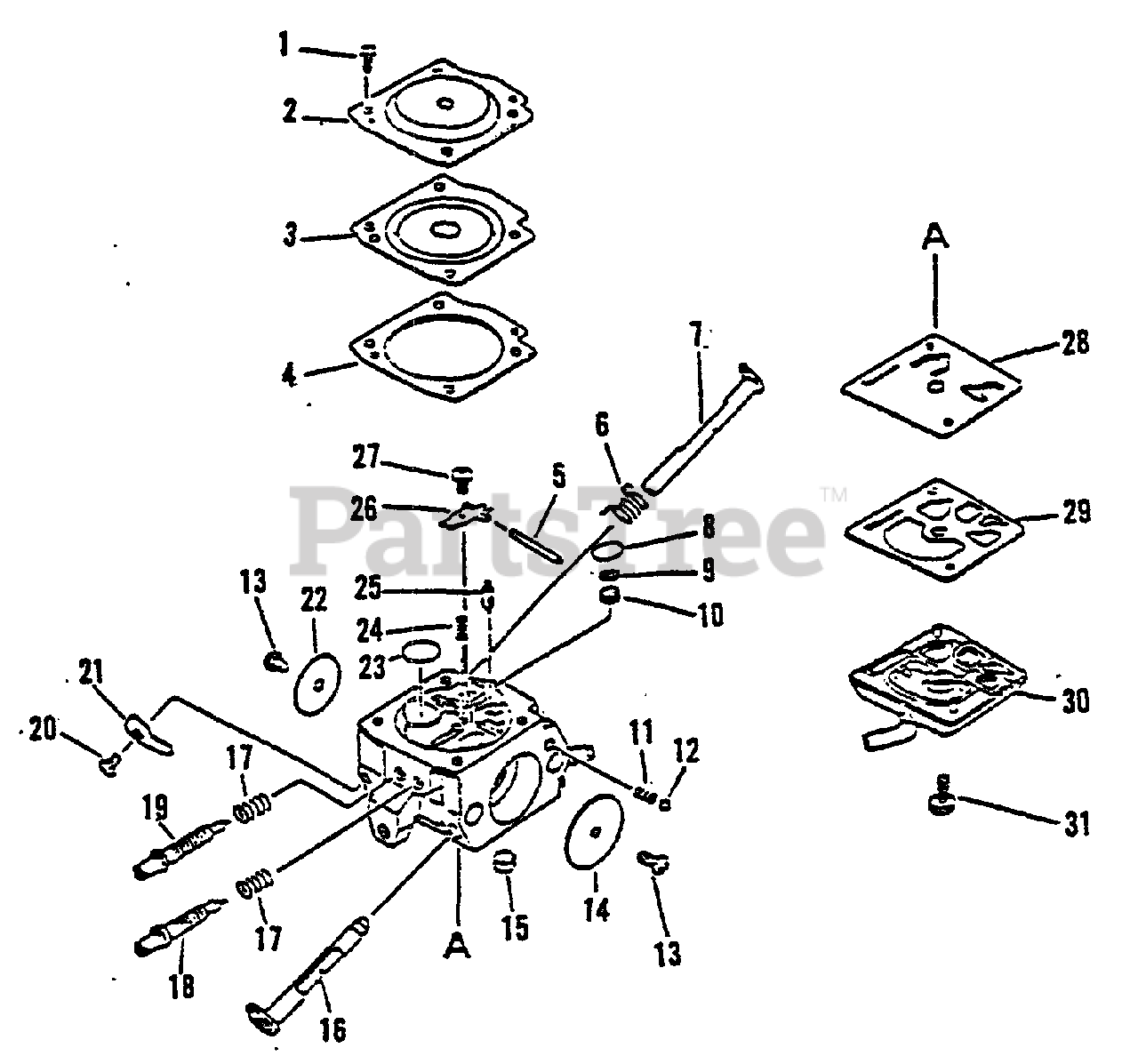

CS-4600 - Echo Chainsaw (SN: 0027192 - 0033240) Carburetor Parts Diagram

Chainsaw

Carburetor Parts Diagram

  • Title

Echo 12520033330

CARBURETOR
(Superseded to Discontinued)

Note: Includes ITEMS 1-20

$

$

Not available

1

------------------

SCREW

Note: USE 12530233330 REPAIR KIT.

$

$

Not available

2

Echo 12534233330

COVER, METERING

$5.49

$

Usually ships in 2-4 days

0

3

------------------

DIAPHRAGM

Note: USE 12530233330 REPAIR KIT AND 12530333330 GASKET/DIAPHRAGM KIT.

$

$

Not available

4

------------------

GASKET, DIAPHRAGM

Note: USE 12530233330 REPAIR KIT AND 12530333330 GASKET/DIAPHRAGM KIT.

$

$

Not available

5

------------------

PIN, METERING LEVER

Note: USE 12530233330 REPAIR KIT.

$

$

Not available

6

Echo 12531333330

SPRING, RETURN

$1.49

$

Usually ships in 2-4 days

0

7

Echo 12531733330

SHAFT, THROTTLE

$5.49

$

Usually ships in 2-4 days

0

8

------------------

PLUG, WELCH

Note: USE 12530233330 REPAIR KIT.

$

$

Not available

9

------------------

RING, RETAINING

Note: USE 12530233330 REPAIR KIT.

$

$

Not available

10

------------------

STRAINER

Note: USE 12530233330 REPAIR KIT.

$

$

Not available

11

Echo 12533533330

SPRING
(Superseded to Discontinued)

$

$

Not available

12

Echo 12533633330

BALL, CHOKE

$1.49

$

Usually ships in 2-4 days

0

13

Echo 12531413930

SCREW

$1.49

$

Usually ships in 2-4 days

0

14

Echo 12533233330

VALVE, CHOKE

$6.49

$

Usually ships in 2-4 days

0

15

Echo 12532642030

STRAINER

$3.99

$

Usually ships in 2-4 days

0

16

Echo 12533133330

SHAFT, CHOKE
(Superseded to Discontinued)

$

$

Not available

17

------------------

SPRING

Note: USE 12530233330 REPAIR KIT.

$

$

Not available

18

Echo 12532033330

NEEDLE - HIGH SPEED

$5.49

$

Usually ships in 2-4 days

0

19

Echo 12531833330

NEEDLE - LOW SPEED
(Superseded to Discontinued)

$

$

Not available

20

Echo 12534813930

SCREW

$0.99

$

In Stock, Qty 6

0

21

Echo 12535033330

LEVER, THROTTLE

$4.49

$

Usually ships in 2-4 days

0

22

Echo 12531633330

VALVE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

23

------------------

PLUG, WELCH

Note: USE 12530233330 REPAIR KIT.

$

$

Not available

24

------------------

SPRING

Note: USE 12530233330 REPAIR KIT.

$

$

Not available

25

------------------

VALVE, NEEDLE

Note: USE 12530233330 REPAIR KIT.

$

$

Not available

26

------------------

LEVER, METERING

Note: USE 12530233330 REPAIR KIT.

$

$

Not available

27

------------------

SCREW

Note: USE 12530233330 REPAIR KIT.

$

$

Not available

28

------------------

DIAPHRAGM, PUMP

Note: USE 12530233330 REPAIR KIT AND 12530333330 GASKET/DIAPHRAGM KIT.

$

$

Not available

29

------------------

GASKET, PUMP

Note: USE 12530233330 REPAIR KIT AND 12530333330 GASKET/DIAPHRAGM KIT.

$

$

Not available

30

Echo 12532433330

BASE, PURGE
(Superseded to Discontinued)

$

$

Not available

31

Echo 12531013930

SCREW, PUMP COVER

$0.99

$

Usually ships in 2-4 days

0

Echo 12530333330

DIAPHRAGM/GASKET KIT

$21.99

$

In Stock, only 2 left!

0

------------------

DIAPHRAGM

$

$

Not available

------------------

GASKET, DIAPHRAGM

$

$

Not available

------------------

DIAPHRAGM, PUMP

$

$

Not available

------------------

GASKET, PUMP

$

$

Not available

Echo 12530233330

REPAIR KIT
(Superseded to 12530033330)

$20.99

$

Usually ships in 2-4 days

0

Echo 12530333330

DIAPHRAGM/GASKET KIT

$21.99

$

In Stock, only 2 left!

0

------------------

PIN, METERING LEVER

$

$

Not available

------------------

PLUG, WELCH

$

$

Not available

------------------

RING, RETAINING

$

$

Not available

------------------

STRAINER

$

$

Not available

------------------

SPRING

$

$

Not available

------------------

PLUG, WELCH

$

$

Not available

------------------

SPRING

$

$

Not available

------------------

VALVE, NEEDLE

$

$

Not available

------------------

LEVER, METERING

$

$

Not available

------------------

SCREW

$

$

Not available
