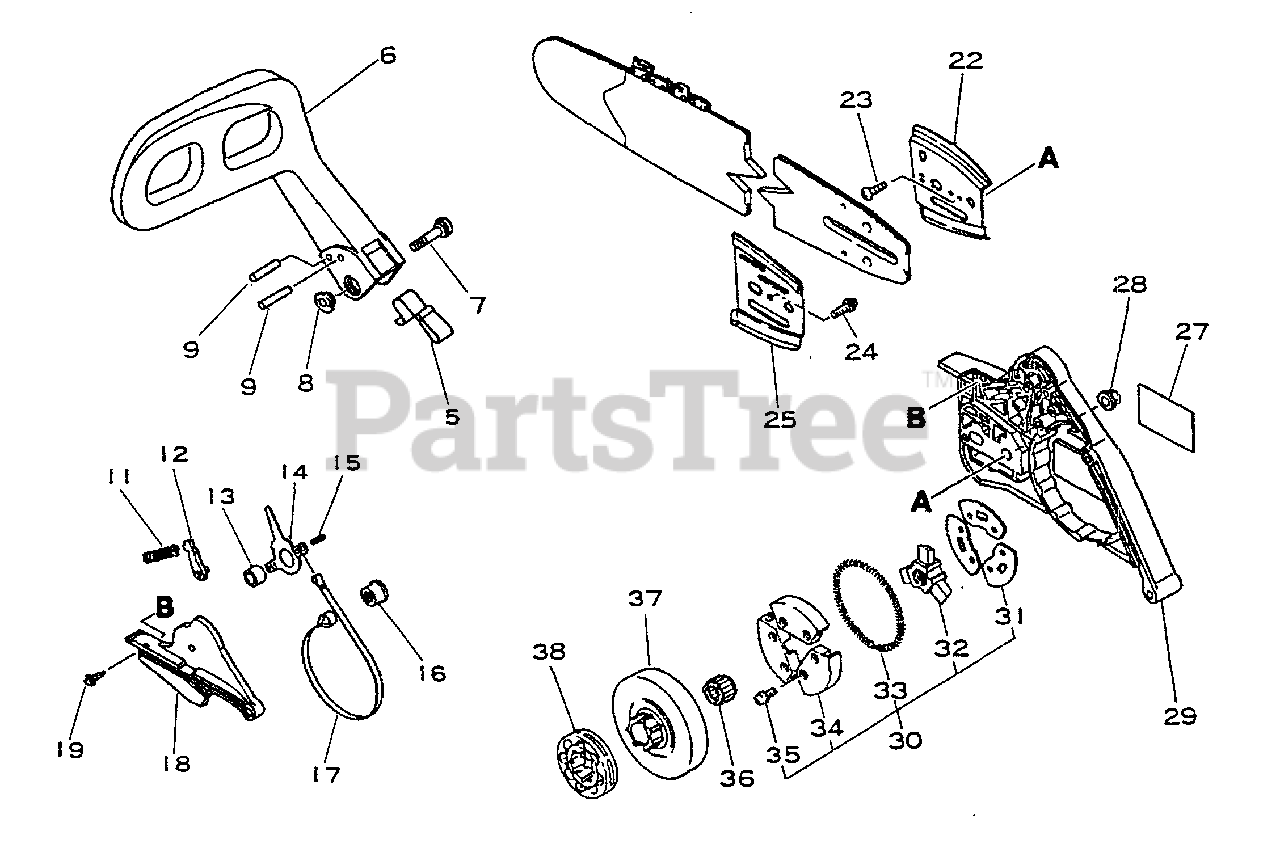

CS-4600 - Echo Chainsaw (SN: 0027192 - 0033240) Clutch, Cutting Attch, Chain Brake Parts Diagram

Chainsaw

Clutch, Cutting Attch, Chain Brake Parts Diagram

  • Title

5

Echo 43311437530

SPRING, RETURN
(Superseded to 43311437531)

$

$

Not available

6

Echo 43310537530

LEVER, BRAKE
(Superseded to 43310533930)

$

$

Not available

7

Echo 43311337530

MOUNTING KIT
(Superseded to 43311337538)

$5.49

$

In Stock, Qty 14

0

8

Echo 43313730130

NUT

$11.99

$

In Stock, only 1 left!

0

9

Echo 90033035260

PIN - 3.5X26

$0.99

$

In Stock, Qty 7

0

11

Echo 43312235430

SPRING, BRAKE

$3.49

$

In Stock, only 1 left!

0

12

Echo 43320935430

STOPPER, BRAKE

$4.99

$

Usually ships in 2-4 days

0

13

Echo 43311635430

SPACER - 8

$5.49

$

In Stock, Qty 11

0

14

Echo 43320835430

LEVER, BRAKE
(Superseded to 43320835431)

$19.99

$

Usually ships in 2-4 days

0

15

Echo 90034540080

PIN - SPRING

$

$

Currently unavailable

16

Echo 43314235430

ADJUSTER, BRAKE BAND

$3.49

$

In Stock, only 4 left!

0

17

Echo 43312335430

BAND, BRAKE
(Superseded to C328000060)

$7.49

$

In Stock, Qty 12

0

18

Echo 43331037530

COVER, BRAKE
(Superseded to Discontinued)

$

$

Not available

19

Echo 90025304010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

22

Echo 43301214533

PLATE, GUIDE - OUTER
(Superseded to Discontinued)

$

$

Not available

23

Echo 90024104008

SCREW - 4X8

$0.99

$

In Stock, Qty 11

0

24

Echo 90024103006

SCREW - 3X6

$0.99

$

In Stock, Qty 11

0

25

Echo 43301319831

PLATE, GUIDE - INNER

$5.49

$

In Stock, only 1 left!

0

27

Echo 89011818332

LABEL - ECHO
(Superseded to 89011838130)

$

$

Not available

28

Echo 43301912330

NUT - FLANGE
(Superseded to V265000200)

$1.99

$

In Stock, Qty 20+

0

29

Echo 43300537530

GUARD, SPROCKET
(Superseded to Discontinued)

$

$

Not available

30

Echo 17500037530

CLUTCH ASSY
(Superseded to 17500037531)

$65.99

$

In Stock, only 2 left!

0

31

Echo 17501919830

PLATE, CLUTCH

$2.99

$

Usually ships in 2-4 days

0

32

Echo 17501619830

HUB, CLUTCH

$16.99

$

Usually ships in 2-4 days

0

33

Echo 17501819830

SPRING, CLUTCH

$3.49

$

Usually ships in 2-4 days

0

34

Echo 17500219830

CLUTCH SHOE SET

$40.99

$

Usually ships in 2-4 days

0

35

Echo 90023804008

SCREW - 4X8

$0.99

$

In Stock, Qty 10

0

36

Echo 17501219830

BEARING, NEEDLE

$11.99

$

In Stock, only 1 left!

0

37

Echo 17510519831

DRUM, CLUTCH
(Superseded to 17510533330)

$

$

Not available

38

Echo 17511412530

SPROCKET, RIM

$18.99

$

In Stock, Qty 20+

0
