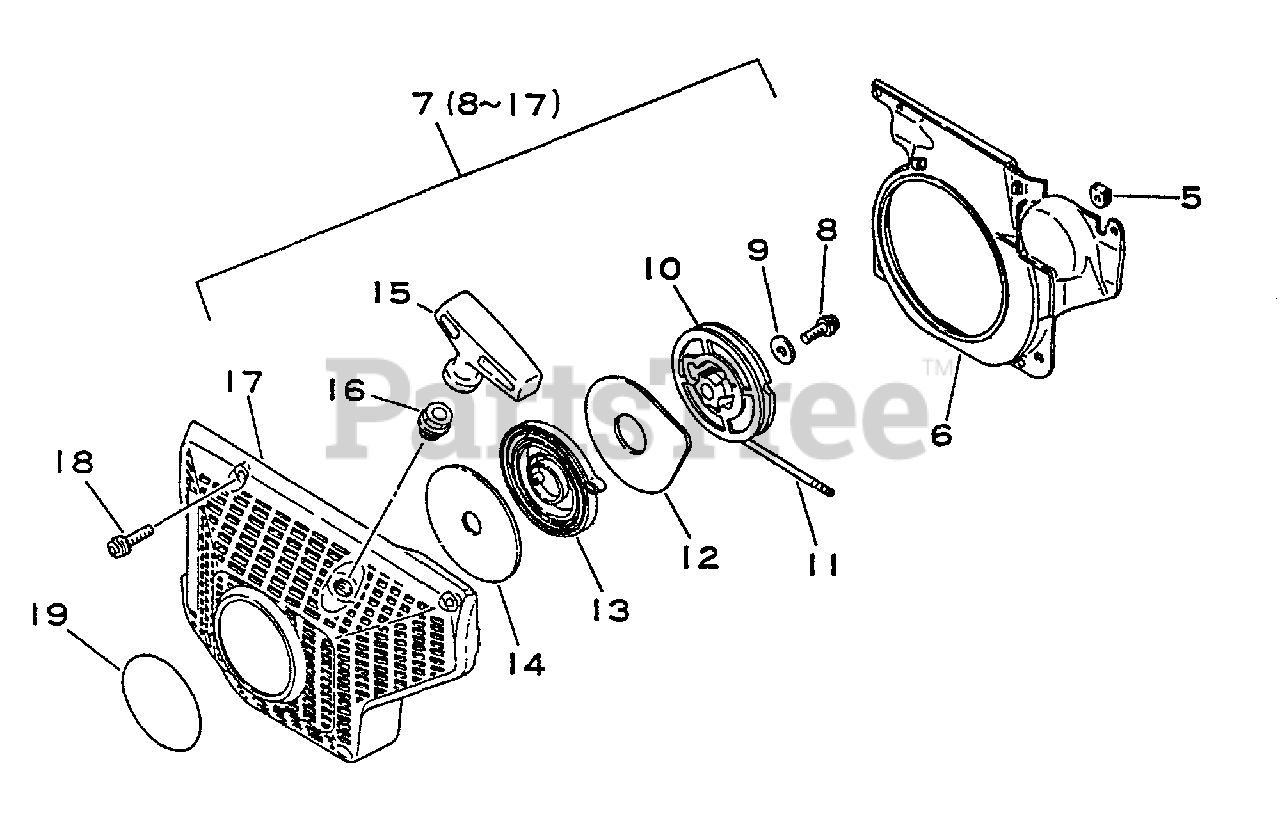

CS-4600 - Echo Chainsaw (SN: 0027192 - 0033240) Starter Parts Diagram

Chainsaw

Starter Parts Diagram

  • Title

5

Echo 15611404920

GROMMET

$0.99

$

In Stock, only 4 left!

0

6

Echo 10153519830

SHIELD, FAN
(Superseded to Discontinued)

$

$

Not available

7

Echo 17720019931

STARTER ASSY
(Superseded to 17720019932)

$

$

Not available

8

Echo 90023805014

SCREW - 5X14

$0.99

$

In Stock, Qty 15

0

9

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

10

Echo 17721519830

REEL, ROPE
(Superseded to Discontinued)

$

$

Not available

11

Echo 17722619830

ROPE, STARTER - 3.5X960

$4.99

$

Usually ships in 2-4 days

0

12

Echo 17724203930

PLATE, STARTER

$3.99

$

Usually ships in 2-4 days

0

13

Echo 17722003930

SPRING, REWIND

$18.99

$

In Stock, Qty 6

0

14

Echo 17722103930

PLATE, STARTER
(Superseded to Discontinued)

$

$

Not available

15

Echo 17722819830

GRIP, STARTER

$4.99

$

Usually ships in 2-4 days

0

16

Echo 17722705020

GUIDE, ROPE

$3.99

$

In Stock, Qty 11

0

17

Echo 10150719831

CASE, STARTER
(Superseded to 10150719832)

$62.99

$

Usually ships in 2-4 days

0

18

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, Qty 16

0

19

Echo 89011217832

LABEL - ECHO
(Superseded to 89011849330)

$6.49

$

In Stock, Qty 10

0
