CS-4600 - Echo Chainsaw (SN: 0033241 - 9999999) Exhaust, Air Cleaner Parts Diagram
Model CS-4600 technical data: dimensions 385 x 220 x 285 mm (15.2" x 8.66" x 11.2"); power head dry weight 4.3 kg (10.8 lb). 2-stroke, air-cooled single-cylinder engine, 45 cc displacement, diaphragm carburetor, magneto ignition (capacitor discharge), spark plug Champion CJ-6Y, recoil starter, automatic centrifugal clutch. Fuel ratio 32:1 (regular gas + oil) or 50:1 with approved oil. Fuel tank 0.47 L (15.9 fl oz), oil tank 0.29 L (9.8 fl oz). Standard features: hand guards, front/rear lock-out, throttle control, anti-vibration latch, high-speed idle kick guard, chain catcher, chain brake. Recommended chain guide bar combos: parts 1GA0AD3366 (16-e50k Oregon 33 sl), 18ADAD3372 (18-e50k Oregon 338 l), 20A0AD3378 (20-eb0k Oregon 335 l).

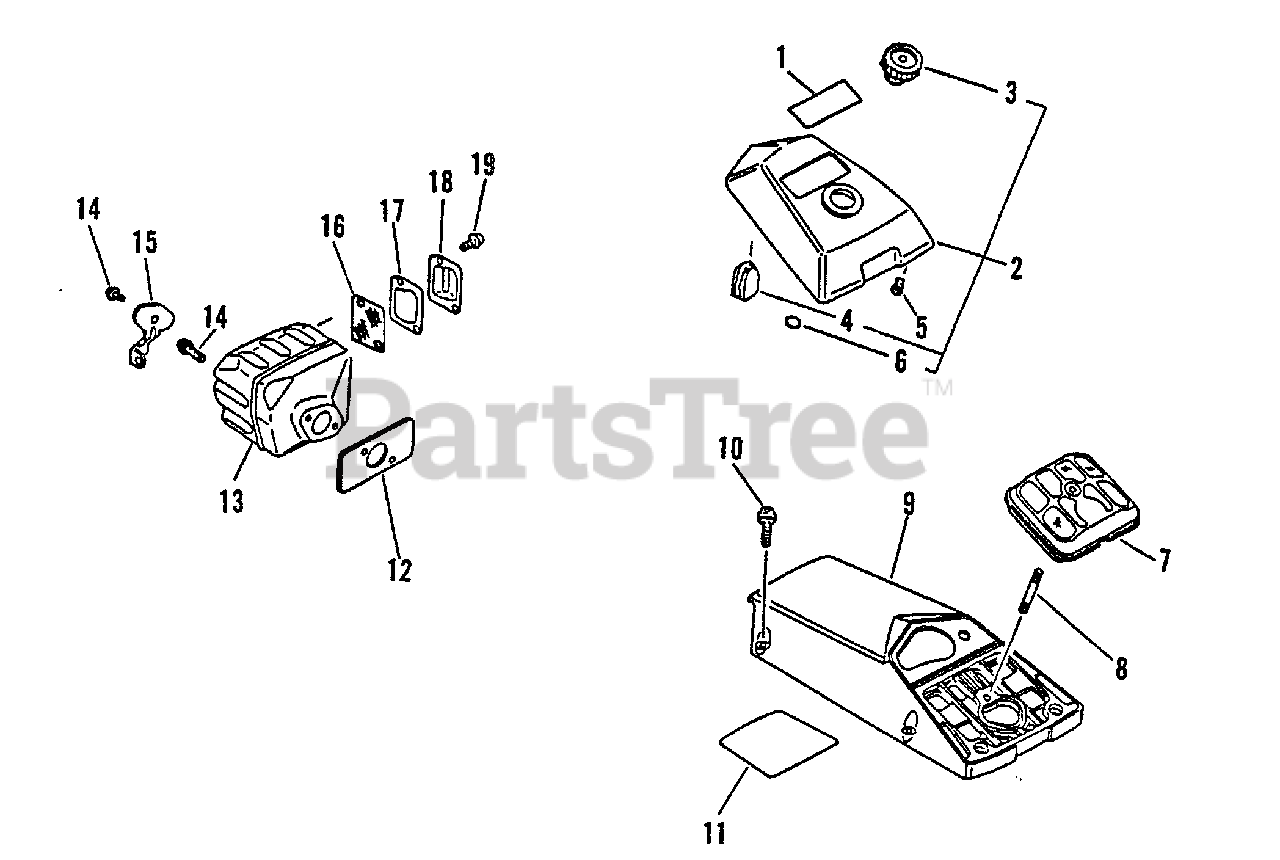

Exhaust, Air Cleaner Parts Diagram
Echo 89016133930
$3.49
$
$
$
Not available
$6.49
$
Echo 13033832430
$1.99
$
Echo 13036633330
$0.99
$
Echo 90072000011
$1.99
$
$
$
Not available
Echo 13032533330
$3.99
$
$39.99
$
Echo 900238-05020
$0.99
$
Echo 10152033330
$4.49
$
Echo 14551019831
$5.49
$
$
$
Not available
Echo 90024605010
$0.99
$
Echo 14571133330
$9.49
$
$
$
Not available
Echo 14586633331
$3.49
$
Echo 14587333930
$2.99
$
Echo 90023804008
$0.99
$
