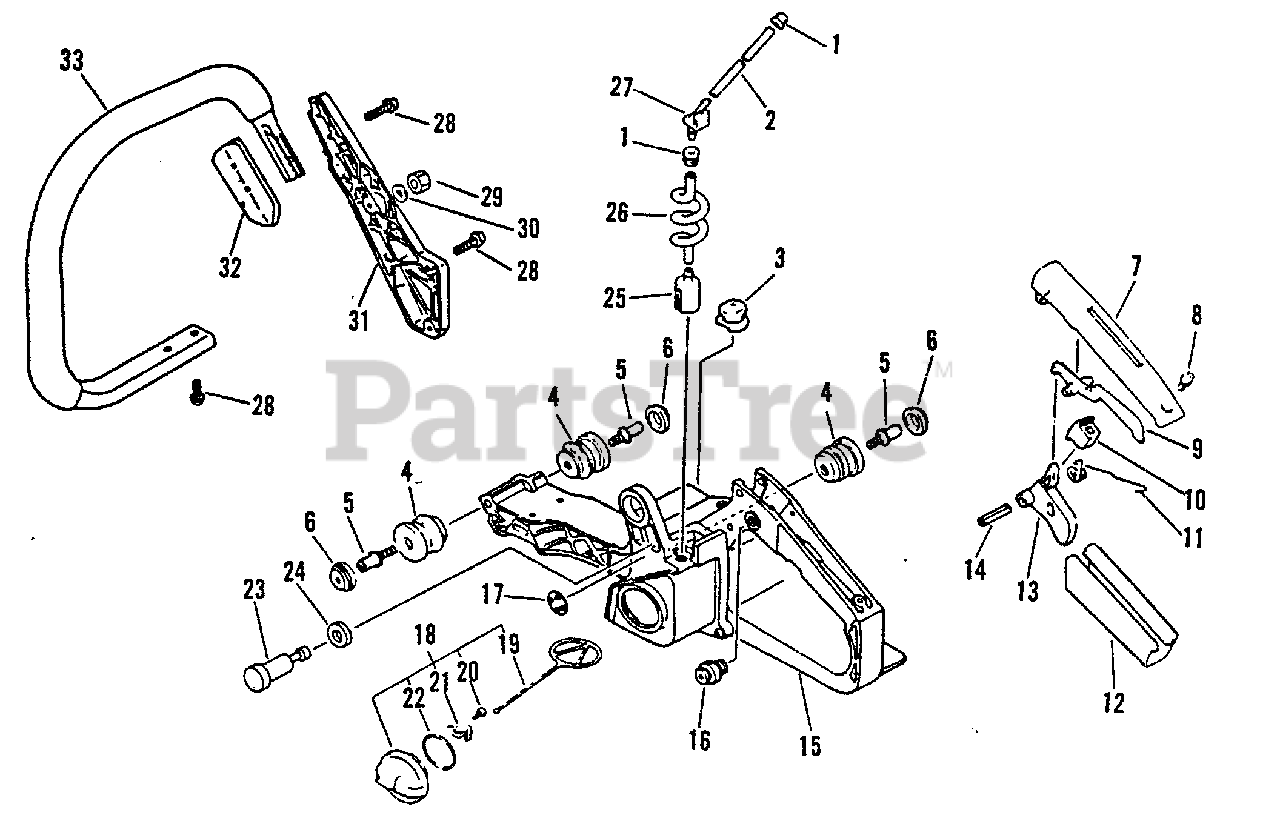

CS-4600 - Echo Chainsaw (SN: 0033241 - 9999999) Handles, Fuel System Parts Diagram

Chainsaw

Handles, Fuel System Parts Diagram

  • Title

1

Echo 13211501460

GROMMET
(Superseded to 13211501461)

$1.99

$

In Stock, Qty 20+

0

2

Echo 13201219830

PIPE, FUEL - 3×6×100
(Superseded to 43721720760)

Note: RePower BULK OPTION: 90015

$6.49

$

In Stock, only 2 left!

0

3

Echo 10025119830

CUSHION

$5.99

$

Usually ships in 2-4 days

0

4

Echo 10091033930

CUSHION
(Superseded to Discontinued)

$

$

Not available

5

Echo 10091533930

SCREW 5

$2.99

$

In Stock, only 2 left!

0

6

Echo 10091819830

CAP, CUSHION

$2.49

$

In Stock, only 2 left!

0

7

Echo 35115530131

COVER, HANDLE

$8.99

$

In Stock, only 2 left!

0

8

Echo 90025204014

SCREW 4×14

$0.99

$

Usually ships in 2-4 days

0

9

Echo 17809037930

LEVER, THROTTLE LOCKOUT

$5.99

$

Usually ships in 2-4 days

0

10

Echo 17807332430

CUSHION, THROTTLE

$3.49

$

In Stock, only 1 left!

0

11

Echo 17804319830

SPRING, THROTTLE RETURN

$2.99

$

In Stock, Qty 6

0

12

Echo 35111130130

GRIP

$3.99

$

Usually ships in 2-4 days

0

13

Echo 17800537630

TRIGGER, THROTTLE
(Superseded to 17801038130)

$6.99

$

In Stock, Qty 5

0

14

Echo 90034250025

PIN, SPRING Ø5×25 MM

$1.99

$

In Stock, Qty 8

0

15

Echo 35110337630

HANDLE - REAR
(Superseded to 35110337631)

Note: Includes ITEMS 17, 23 & 24

$

$

Not available

16

Echo 17830237630

LOCK, THROTTLE
(Superseded to Discontinued)

$

$

Not available

17

Echo 10025219830

CUSHION (B)

$0.99

$

In Stock, only 1 left!

0

18

Echo 13100437630

CAP ASSY
(Superseded to 13100437631)

Note: INCLUDES ITEMS 19 - 22

$4.49

$

In Stock, Qty 18

0

19

Echo A365-000050

CONNECTOR, CAP L= 60 MM
(Superseded to A365000050)

$2.49

$

In Stock, Qty 5

0

20

Echo 90025803008

SCREW 3×8
(Superseded to Discontinued)

$

$

Not available

21

Echo 13105019830

RETAINER, CONNECTOR
(Superseded to Discontinued)

$

$

Not available

22

Echo 90072020029

O-RING 29

$3.99

$

In Stock, only 2 left!

0

23

Echo 13130040630

VENT ASSY
(Superseded to 13130056430)

$8.99

$

In Stock, Qty 6

0

24

Echo 13132933930

GROMMET, FUEL
(Superseded to Discontinued)

$

$

Not available

25

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

$9.99

$

In Stock, Qty 20+

0

26

Echo 13201019830

PIPE - SPIRAL
(Superseded to Discontinued)

$

$

Not available

27

Echo 13201119830

CONNECTOR, PIPE
(Superseded to 13201119831)

$5.49

$

In Stock, only 4 left!

0

28

Echo 90025205020

SCREW 5×20

$0.99

$

Usually ships in 2-4 days

0

29

Echo 90052900005

NUT, SLOT 5

$0.99

$

Usually ships in 2-4 days

0

30

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

31

Echo 35161333930

BRACKET, HANDLE

$24.99

$

Usually ships in 2-4 days

0

32

Echo 35161433930

BRACKET, HANDLE

$5.49

$

Usually ships in 2-4 days

0

33

Echo 35160637630

HANDLE, FRONT
(Superseded to Discontinued)

$

$

Not available
