CS-4600 - Echo Chainsaw (SN: 0033241 - 9999999) Oiler, Auto Parts Diagram
Model CS-4600 technical data: dimensions 385 x 220 x 285 mm (15.2" x 8.66" x 11.2"); power head dry weight 4.3 kg (10.8 lb). 2-stroke, air-cooled single-cylinder engine, 45 cc displacement, diaphragm carburetor, magneto ignition (capacitor discharge), spark plug Champion CJ-6Y, recoil starter, automatic centrifugal clutch. Fuel ratio 32:1 (regular gas + oil) or 50:1 with approved oil. Fuel tank 0.47 L (15.9 fl oz), oil tank 0.29 L (9.8 fl oz). Standard features: hand guards, front/rear lock-out, throttle control, anti-vibration latch, high-speed idle kick guard, chain catcher, chain brake. Recommended chain guide bar combos: parts 1GA0AD3366 (16-e50k Oregon 33 sl), 18ADAD3372 (18-e50k Oregon 338 l), 20A0AD3378 (20-eb0k Oregon 335 l).

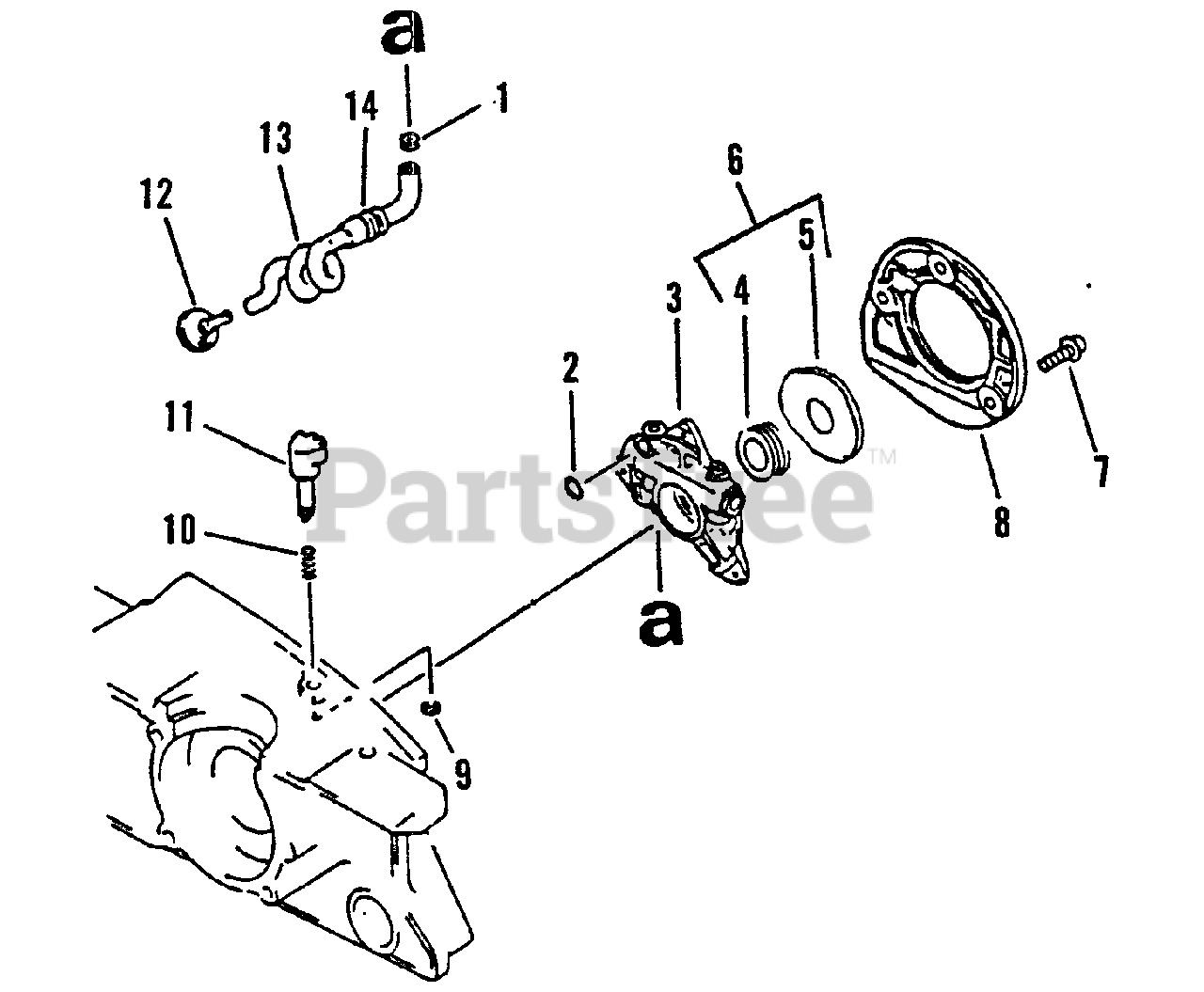

Oiler, Auto Parts Diagram
Echo V490001230
$0.99
$
Echo 90072000003
$1.49
$
$121.99
$
Echo 43706319930
Note: P/N 43700332632 WORM & PLUNGER KIT IS AVAILABLE FOR OILER SYSTEM REBUILD. KIT INCLUDES WORM GEAR AND OIL PUMP PLUNGER GEAR.
$47.99
$
Echo 43706630130
$12.99
$
$47.99
$
Echo 90023804014
$0.99
$
Echo 43760537630
$6.49
$
Echo 90070000003
$0.99
$
Echo 43701519830
$1.99
$
Echo 43703937630
$3.49
$
Echo 43620514730
$10.99
$
$
$
Not available
Echo 13211512330
$1.49
$
