CS-4600 - Echo Chainsaw (SN: 0033241 - 9999999) Starter Parts Diagram

Model CS-4600 technical data: dimensions 385 x 220 x 285 mm (15.2" x 8.66" x 11.2"); power head dry weight 4.3 kg (10.8 lb). 2-stroke, air-cooled single-cylinder engine, 45 cc displacement, diaphragm carburetor, magneto ignition (capacitor discharge), spark plug Champion CJ-6Y, recoil starter, automatic centrifugal clutch. Fuel ratio 32:1 (regular gas + oil) or 50:1 with approved oil. Fuel tank 0.47 L (15.9 fl oz), oil tank 0.29 L (9.8 fl oz). Standard features: hand guards, front/rear lock-out, throttle control, anti-vibration latch, high-speed idle kick guard, chain catcher, chain brake. Recommended chain guide bar combos: parts 1GA0AD3366 (16-e50k Oregon 33 sl), 18ADAD3372 (18-e50k Oregon 338 l), 20A0AD3378 (20-eb0k Oregon 335 l).

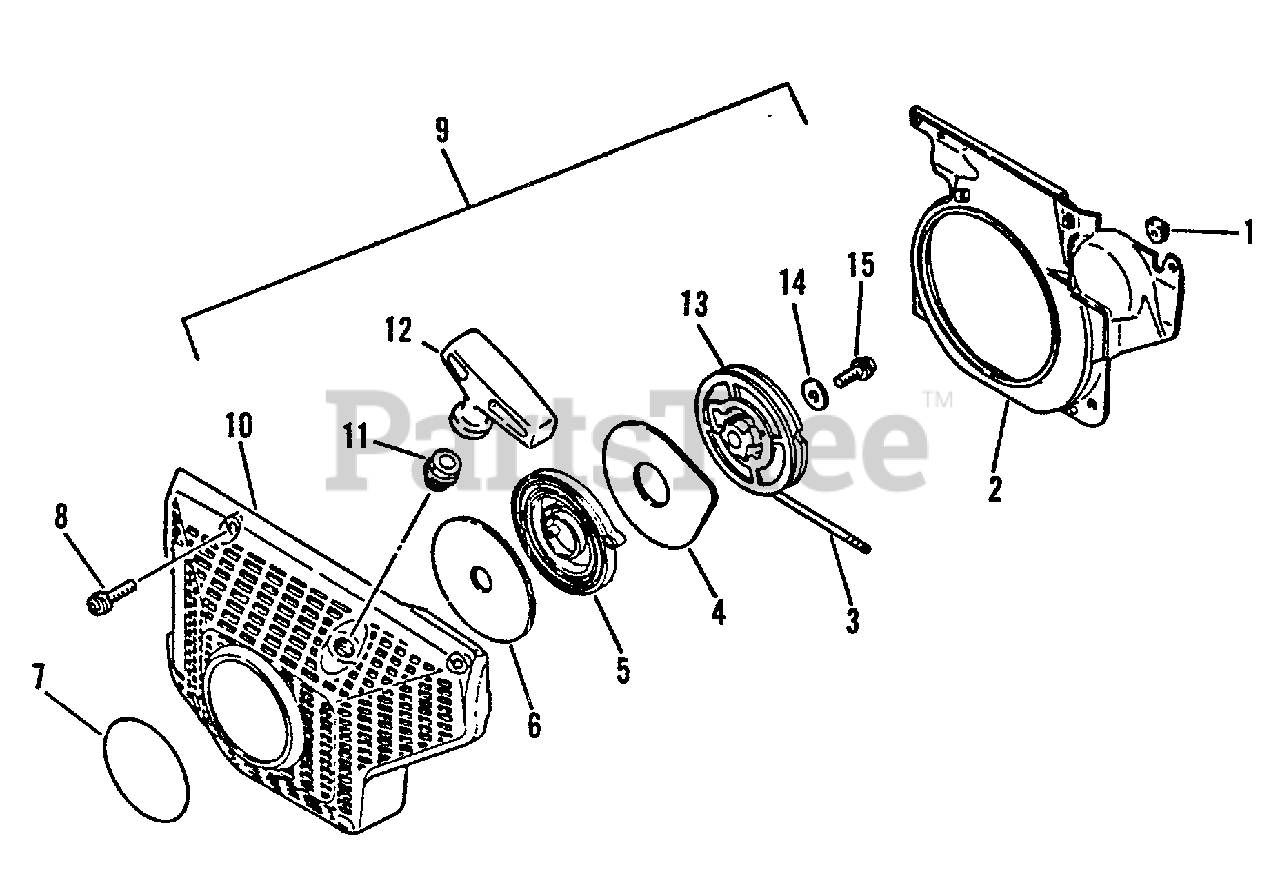

Starter Parts Diagram

  • Title

1

Echo 15611404920

GROMMET

$0.99

$

In Stock, Qty 9

0

2

Echo 10153537630

SHIELD, FAN
(Superseded to Discontinued)

$

$

Not available

3

Echo 17722619830

ROPE, STARTER

$5.99

$

In Stock, only 1 left!

0

4

Echo 17724203930

PLATE, SIDE

$

$

Not available

5

Echo 177220-03930

SPRING, RECOIL

$21.99

$

In Stock, only 2 left!

0

6

Echo 17722103930

PLATE, SIDE
(Superseded to Discontinued)

$

$

Not available

7

Echo 89011849330

LABEL, ECHO

$7.49

$

In Stock, only 4 left!

0

8

Echo 900238-05020

SCREW 5×20

$0.99

$

In Stock, Qty 20+

0

9

Echo 17720037631

STARTER ASSY
(Superseded to 17720037632)

Note: INCLUDES ITEMS 3 - 6, 10 - 15

$

$

Not available

10

Echo 10150737630

CASE, STARTER
(Superseded to 10150737632)

$72.99

$

Usually ships in 2-4 days

0

11

Echo 17722705020

GUIDE, ROPE

$4.99

$

Usually ships in 2-4 days

0

12

Echo 17722819830

GRIP, STARTER

$5.49

$

In Stock, only 2 left!

0

13

Echo 17721519830

REEL, ROPE
(Superseded to Discontinued)

$

$

Not available

14

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

15

Echo 90023805014

SCREW 5×14

$0.99

$

In Stock, Qty 11
