CS 464 M (24A-464M700) - Yard Machines Chipper Shredder (2017) Chipper Chute Parts Diagram

Chipper Shredder

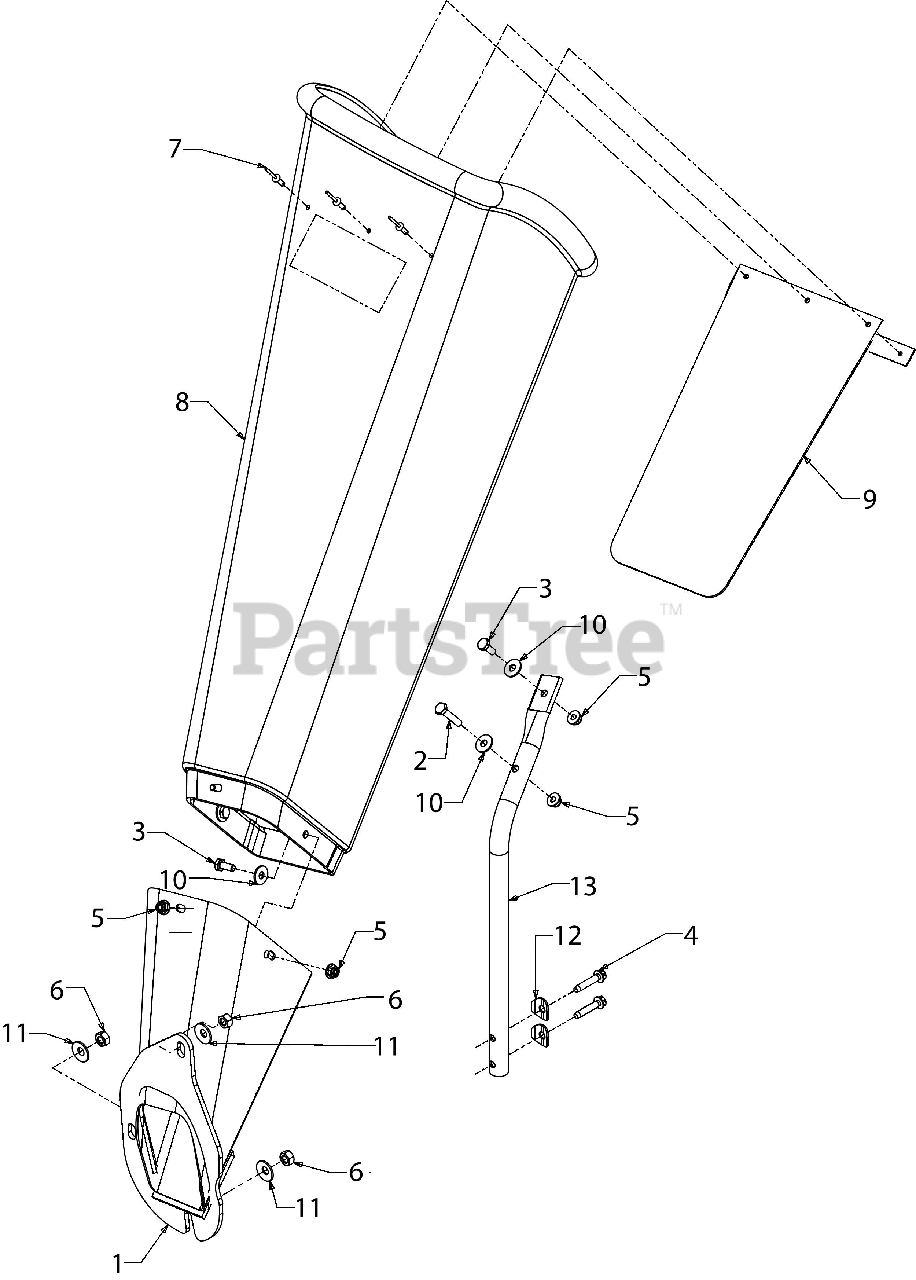

Chipper Chute Parts Diagram

  • Title

1

MTD 681-04119-0638

LOWER CHIPPER CHUTE
(Superseded to 681-04119A-0638)

$127.99

$

Usually ships in 3-6 days

0

2

MTD 710-0106

HEX SCREW 1/4-20 x 1.25

$4.49

$

In Stock, Qty 12

0

3

MTD 710-0751

SCREW 1/4-20 x .620 GR5

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-0809

SCREW 1/4-20 x 1.25

$7.49

$

In Stock, Qty 7

0

5

MTD 712-04064

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 20+

0

6

MTD 912-3010

HEX NUT
(Superseded to 712-3010)

$4.99

$

In Stock, Qty 20+

0

7

MTD 728-0175

RIVOT

$4.99

$

In Stock, Qty 20+

0

8

MTD 753-05094

CHIPPER SHREDDER KIT

$155.99

$

Usually ships in 3-6 days

0

9

MTD 735-0249A

CHUTE FLAP

$26.99

$

Usually ships in 3-6 days

0

10

MTD 736-0173

FLAT WASHER .28 ID x .74 OD x .063

$4.49

$

In Stock, Qty 20+

0

11

MTD 736-0242

BELL WASHER .337 X.867 x .057

$4.99

$

In Stock, Qty 20+

0

12

MTD 936-0451

SADDLE WASHER
(Superseded to 736-0451)

$4.99

$

In Stock, Qty 16

0

13

MTD 749-1004-0637

CHUTE SUPPORT

$49.99

$

Usually ships in 3-6 days

0

14

MTD 781-0633

FLAP STRIP

$10.99

$

Usually ships in 3-6 days

0
