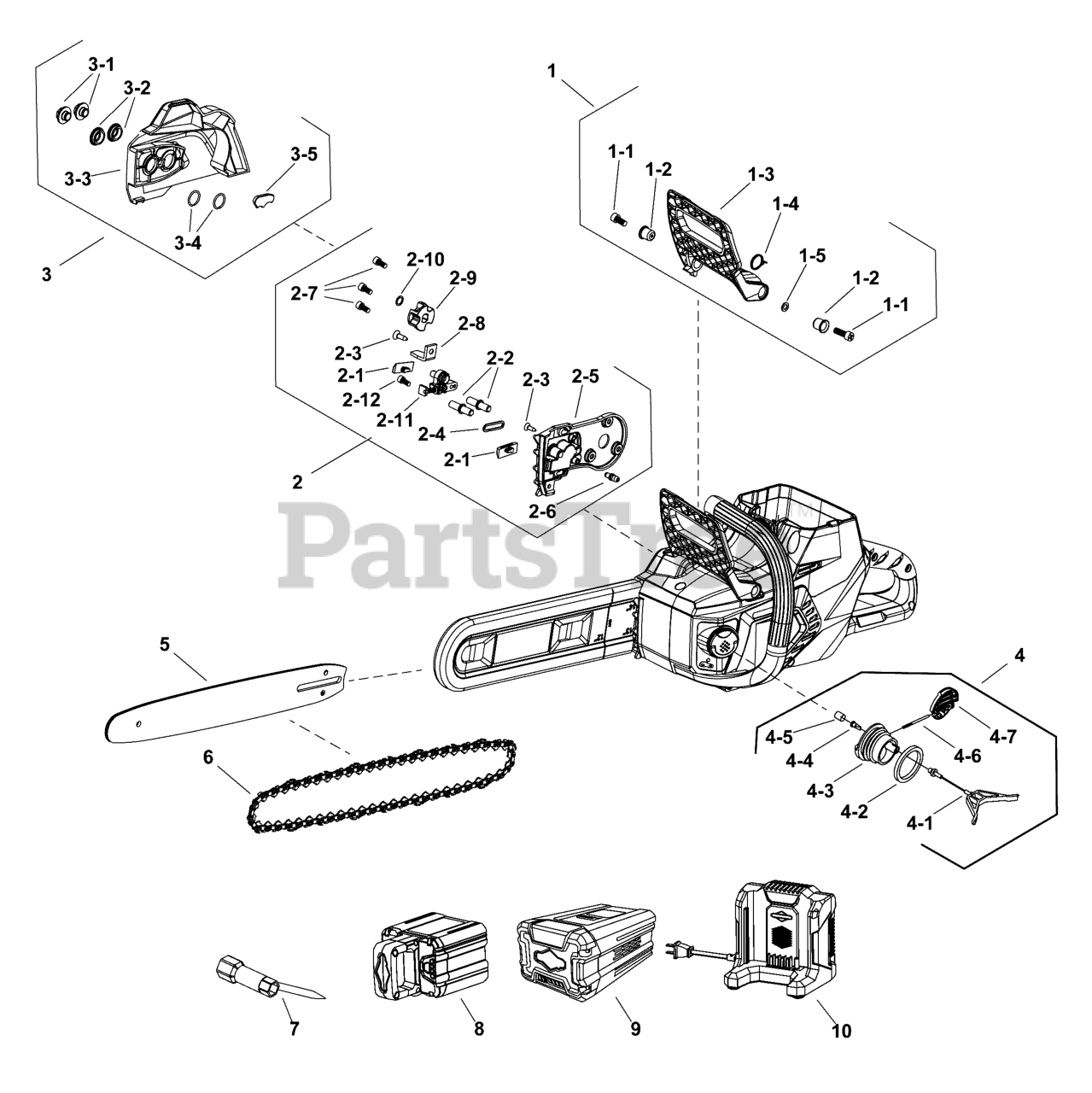

CS 48 (1697196-00) - Snapper 48V 14" Brushless Chainsaw Chainsaw Parts Diagram

48V 14" Brushless Chainsaw

Chainsaw Parts Diagram

  • Title

1

Snapper 84004419

Kit, Guard

$15.99

$

Usually ships in 2-12 days

0

1-1

SCREW, ST4.8 x 10

$

$

Not available

1-2

BUSHING

$

$

Not available

1-3

GUARD

$

$

Not available

1-4

SPRING, Torsion

$

$

Not available

1-5

WASHER, Plain

$

$

Not available

2

Snapper 84004422

KIT, Chain Tension

$69.99

$

Usually ships in 2-12 days

0

2-1

GASKET, Splash Guard

$

$

Not available

2-2

STUD

$

$

Not available

2-3

SCREW, ST4.2 x 14

$

$

Not available

2-4

SEAL, Oil

$

$

Not available

2-5

BRACKET, Bar

$

$

Not available

2-6

GROMMET, Oil

$

$

Not available

2-7

SCREW, M6 x 12

$

$

Not available

2-8

RETAINER, Chain

$

$

Not available

2-9

SPROCKET

$

$

Not available

2-10

CIRCLIP

$

$

Not available

2-11

TENSIONER, Chain

$

$

Not available

2-12

SCREW M4 x 8

$

$

Not available

3

Snapper 84004425

KIT, Side Panel

$

$

Currently unavailable

3-1

NUT, Lock, M8

$

$

Not available

3-2

SLEEVE

$

$

Not available

3-3

PANEL, Side

$

$

Not available

3-4

RING, Snap

$

$

Not available

3-5

GASKET, oil

$

$

Not available

4

Snapper 84004424

KIT, Oil Cap

$8.99

$

Usually ships in 2-12 days

0

4-1

HANDLE

$

$

Not available

4-2

SEAL

$

$

Not available

4-3

KNOB, Oil

$

$

Not available

4-4

VALVE, Air

$

$

Not available

4-5

Snapper CM-C3700016-00

FILTER

$

$

Currently unavailable

4-6

PIN

$

$

Not available

4-7

CAP, OIl

$

$

Not available

5

Snapper 84004420

KIT, Bar, 14", (TriLink M1431452-1041)

$

$

Currently unavailable

6

Snapper 84004421

KIT, Chain, 14", TRiLink CL14352

$51.99

$

Usually ships in 2-12 days

0

7

Snapper 84004423

KIT, Tool

Note: (Optional)

$

$

Currently unavailable

8

Snapper 1697088

* BATTERY, 2.0, 48V

Note: (Optional)

$155.99

$

In Stock, only 1 left!

0

9

Snapper 1697090

* BATTERY, 5.0, 48V

Note: (Optional)

$311.99

$

In Stock, only 1 left!

0

10

Snapper 1697092

* BATTERY CHARGER, 48V

Note: (Optional)

$76.99

$

In Stock, Qty 7

0

Snapper 770294

REMOTE BELT FOR BATTERY

Note: (Optional, Not Shown)

$186.99

$

Usually ships in 2-12 days

0
