CS-490 - Echo Chainsaw (SN: C34413001001 - C34413999999) Clutch Cover Parts Diagram

Chainsaw

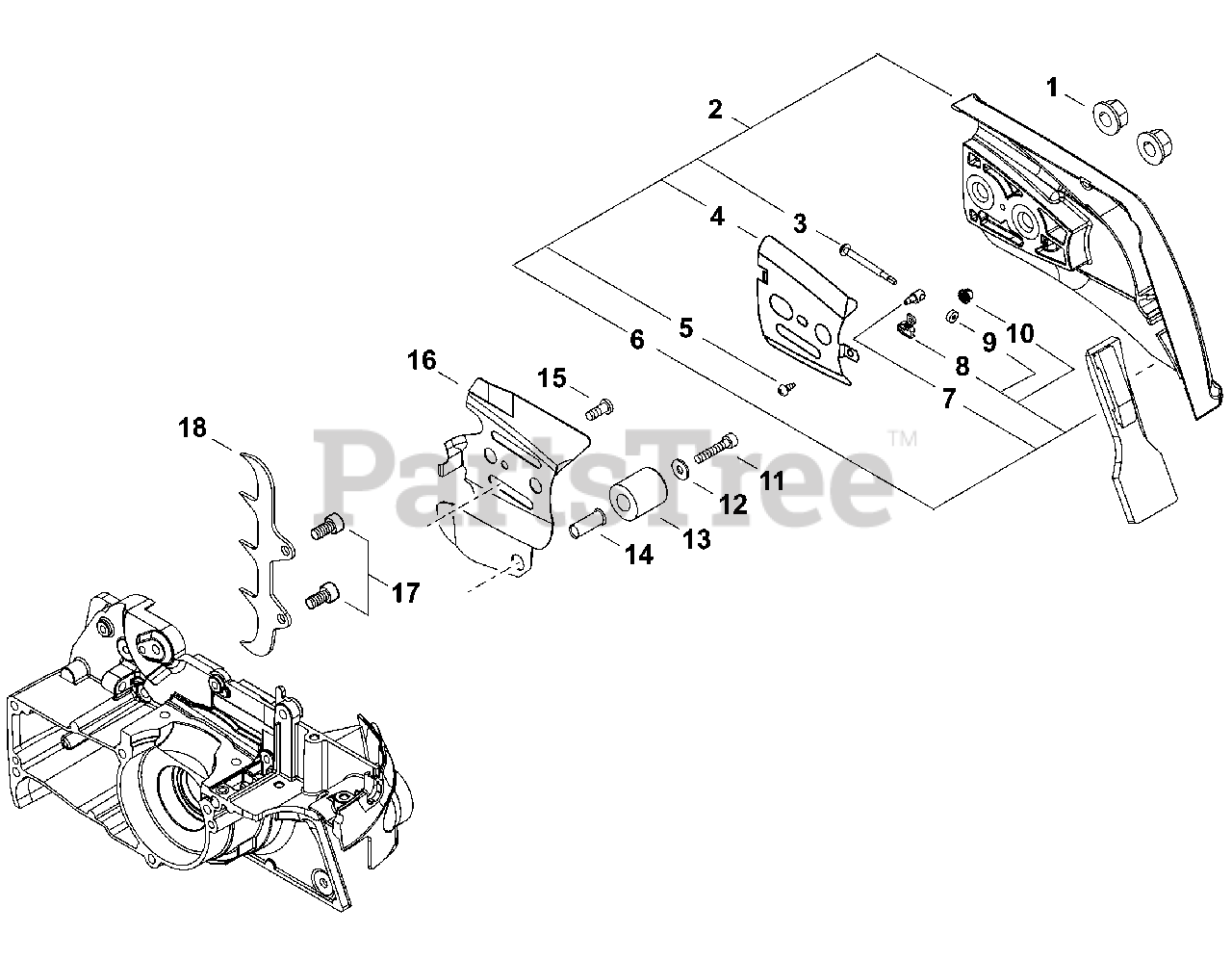

Clutch Cover Parts Diagram

  • Title

1

Echo V265000200

NUT 8

$1.99

$

In Stock, Qty 20+

0

2

Echo P021049100

COVER ASSY, CLUTCH

Note: Includes items 3-10

$50.99

$

In Stock, Qty 20+

0

3

Echo V203000021

BOLT 5

$5.99

$

Usually ships in 2-4 days

0

4

Echo C305000470

PLATE, GUIDE - OUTER

$8.99

$

In Stock, Qty 5

0

5

Echo 90025304008

SCREW 4×8

$0.99

$

In Stock, Qty 10

0

6

Echo C302000030

PROTECTOR

$2.49

$

In Stock, only 4 left!

0

7

Echo C309000190

TENSIONER, CHAIN

$2.99

$

In Stock, Qty 12

0

8

Echo V355000840

COLLAR 8

$2.99

$

In Stock, Qty 9

0

9

Echo V651000011

GEAR, BEVEL

$7.99

$

In Stock, Qty 20+

0

10

Echo V651001060

GEAR, BEVEL

$2.99

$

In Stock, Qty 5

0

11

Echo 90010505030

BOLT 5×30

$1.49

$

In Stock, Qty 6

0

12

Echo 90060000005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

13

Echo C310000110

CHAIN CATCHER

$3.49

$

In Stock, Qty 8

0

14

Echo V353000460

COLLAR 5

$0.99

$

In Stock, Qty 16

0

15

Echo V252000470

SCREW M4×7

$0.99

$

In Stock, Qty 10

0

16

Echo C305000480

PLATE, GUIDE - INNER

$8.99

$

In Stock, Qty 5

0

17

Echo 90010505012

BOLT 5×12

$1.49

$

In Stock, Qty 20+

0

18

Echo C304000310

SPIKE, BUMPER

$19.99

$

Usually ships in 2-4 days

0
