CS-490 - Echo Chainsaw (SN: C68315001001 - C68315999999) Ignition Parts Diagram

Chainsaw

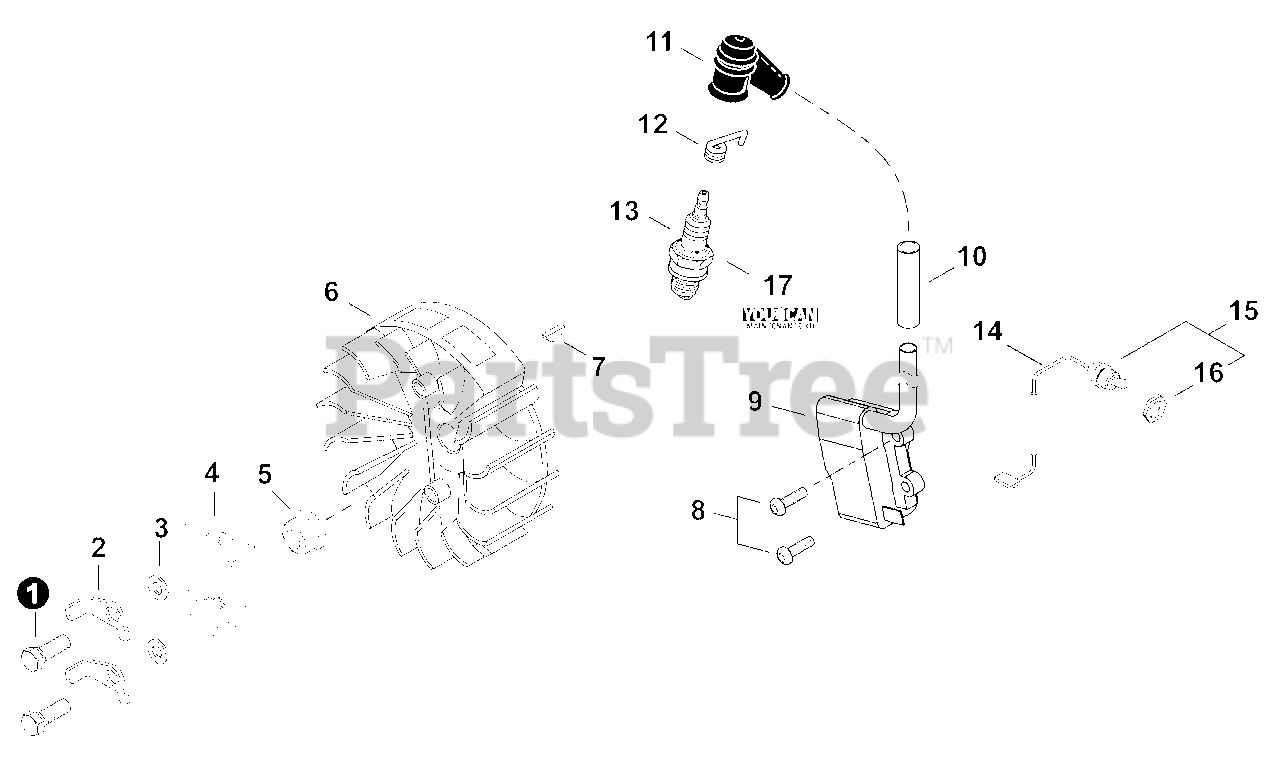

Ignition Parts Diagram

  • Title

1

Echo V204000620

BOLT 6

$2.49

$

Usually ships in 2-4 days

0

2

Echo A514000220

PAWL

$4.49

$

Usually ships in 2-4 days

0

3

Echo V304000270

WASHER 6

$1.49

$

Usually ships in 2-4 days

0

4

Echo V452000870

SPRING, TORSION

$1.99

$

Usually ships in 2-4 days

0

5

Echo V265000220

NUT M8×1.0

$1.49

$

In Stock, only 2 left!

0

6

Echo A409000901

FLYWHEEL

$199.99

$

Usually ships in 2-4 days

0

7

Echo 9311503010

KEY, WOODRUFF 3×10

$0.99

$

In Stock, Qty 20+

0

8

Echo V202000540

BOLT, ADHESIVE M4×20

$1.49

$

Usually ships in 2-4 days

0

9

Echo P021036741

COIL ASSY, IGNITION

$143.99

$

Usually ships in 2-4 days

0

10

Echo V475005180

TUBE, INSULATOR

$1.99

$

Usually ships in 2-4 days

0

11

Echo A427000013

CAP, SPARK PLUG

$3.49

$

In Stock, Qty 20+

0

12

Echo A426000010

TERMINAL, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

13

Echo A425000000

SPARK PLUG - BPMR8Y

$3.99

$

In Stock, Qty 20+

0

14

Echo V485002030

LEAD - IGNITION

$2.99

$

In Stock, only 1 left!

0

15

Echo A440002680

SWITCH ASSY, ON-OFF

Note: Includes Item 17

$14.99

$

In Stock, only 3 left!

0

16

Echo V266000090

NUT 10

$0.99

$

In Stock, only 1 left!

0

17

Echo 90174Y

TUNE-UP KIT - YOUCAN™

$41.99

$

In Stock, Qty 8

0
