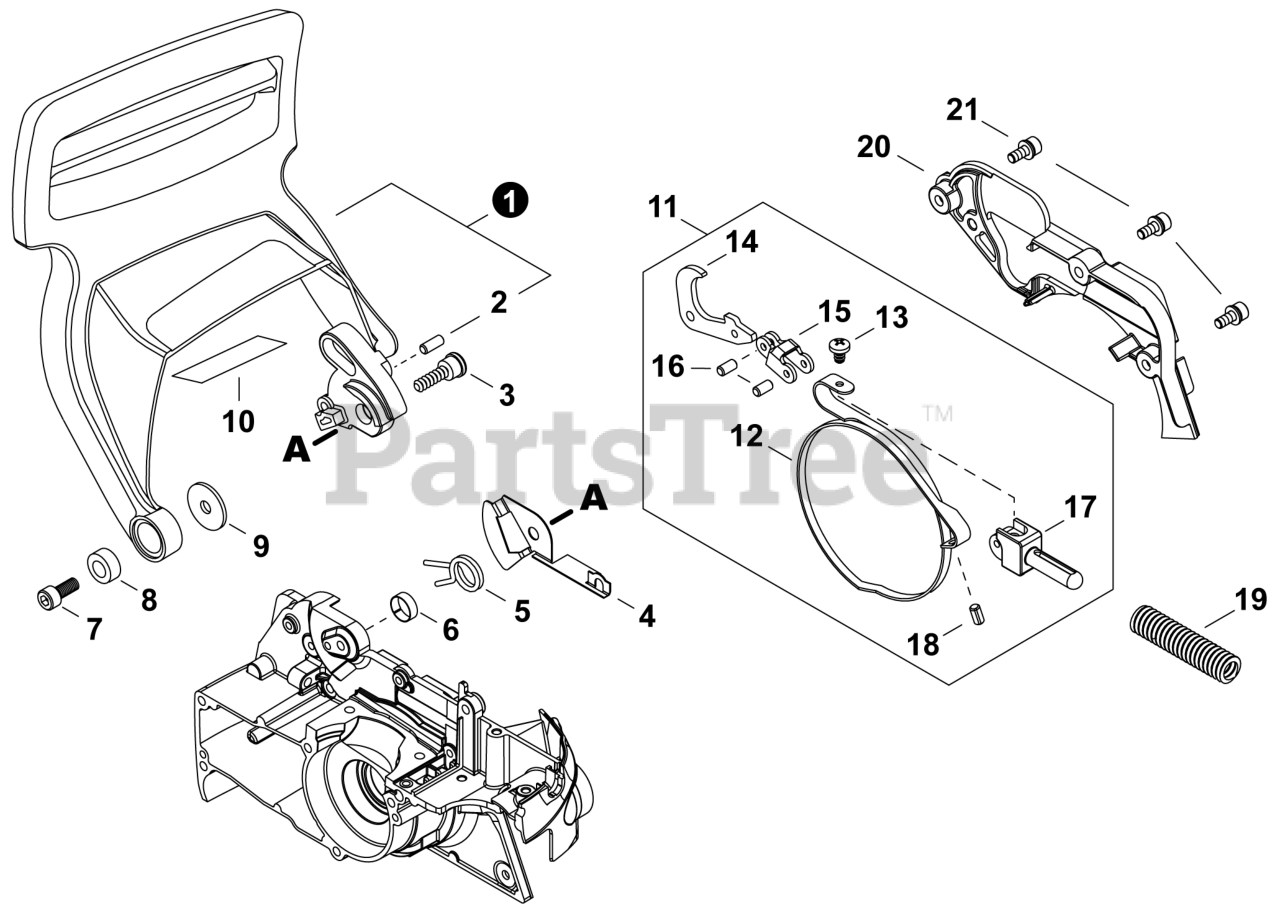

CS-4910 - Echo Chainsaw (SN: C83515001001 - C83515999999) Chain Brake Parts Diagram

Chainsaw

Chain Brake Parts Diagram

  • Title

1

Echo P021026933

GUARD ASSY, HAND

Note: Includes Item 2

$26.99

$

In Stock, only 1 left!

0

2

Echo 90033040080

PIN, LOCATING 4x8

$0.99

$

In Stock, Qty 20+

0

3

Echo V203001470

BOLT, ADHESIVE M4x38

$1.99

$

Usually ships in 2-4 days

0

4

Echo C347000010

PLATE, RETAINING

$4.49

$

Usually ships in 2-4 days

0

5

Echo V452000860

SPRING, TORSION

$4.49

$

In Stock, only 1 left!

0

6

Echo V355000460

COLLAR 8

$0.99

$

In Stock, only 1 left!

0

7

Echo V203001410

BOLT, ADHESIVE 5

$1.99

$

Usually ships in 2-4 days

0

8

Echo J211000430

COLLAR

$0.99

$

In Stock, Qty 8

0

9

Echo V303000320

WASHER 5

$0.99

$

Usually ships in 2-4 days

0

10

Echo V341000000

SHIELD, HEAT 35x60x0.10

$0.99

$

In Stock, Qty 20+

0

11

Echo C328000320

BRAKE ASSY, BAND

Note: Includes Items 12-18

$64.99

$

Usually ships in 2-4 days

0

12

Echo C328000220

BAND, BRAKE

$25.99

$

Usually ships in 2-4 days

0

13

Echo 9138104010

SCREW, TAPPING M4x10

$0.99

$

Usually ships in 2-4 days

0

14

Echo C334000350

LEVER, BRAKE

$3.99

$

Usually ships in 2-4 days

0

15

Echo C334000200

STRAP, CABLE

$5.99

$

In Stock, only 1 left!

0

16

Echo 90033030120

PIN 3x12

$0.99

$

In Stock, Qty 12

0

17

Echo C334000180

CONNECTOR, BRAKE

$2.99

$

Usually ships in 2-4 days

0

18

Echo 9304240100

PIN, SPRING 4x10 MM

$0.99

$

Usually ships in 2-4 days

0

19

Echo V450001160

SPRING, BRAKE

$4.99

$

Usually ships in 2-4 days

0

20

Echo C345000431

COVER, BRAKE

$6.49

$

In Stock, only 3 left!

0

21

Echo V202000490

BOLT, ADHESIVE M4x10

$0.99

$

Usually ships in 2-4 days

0
