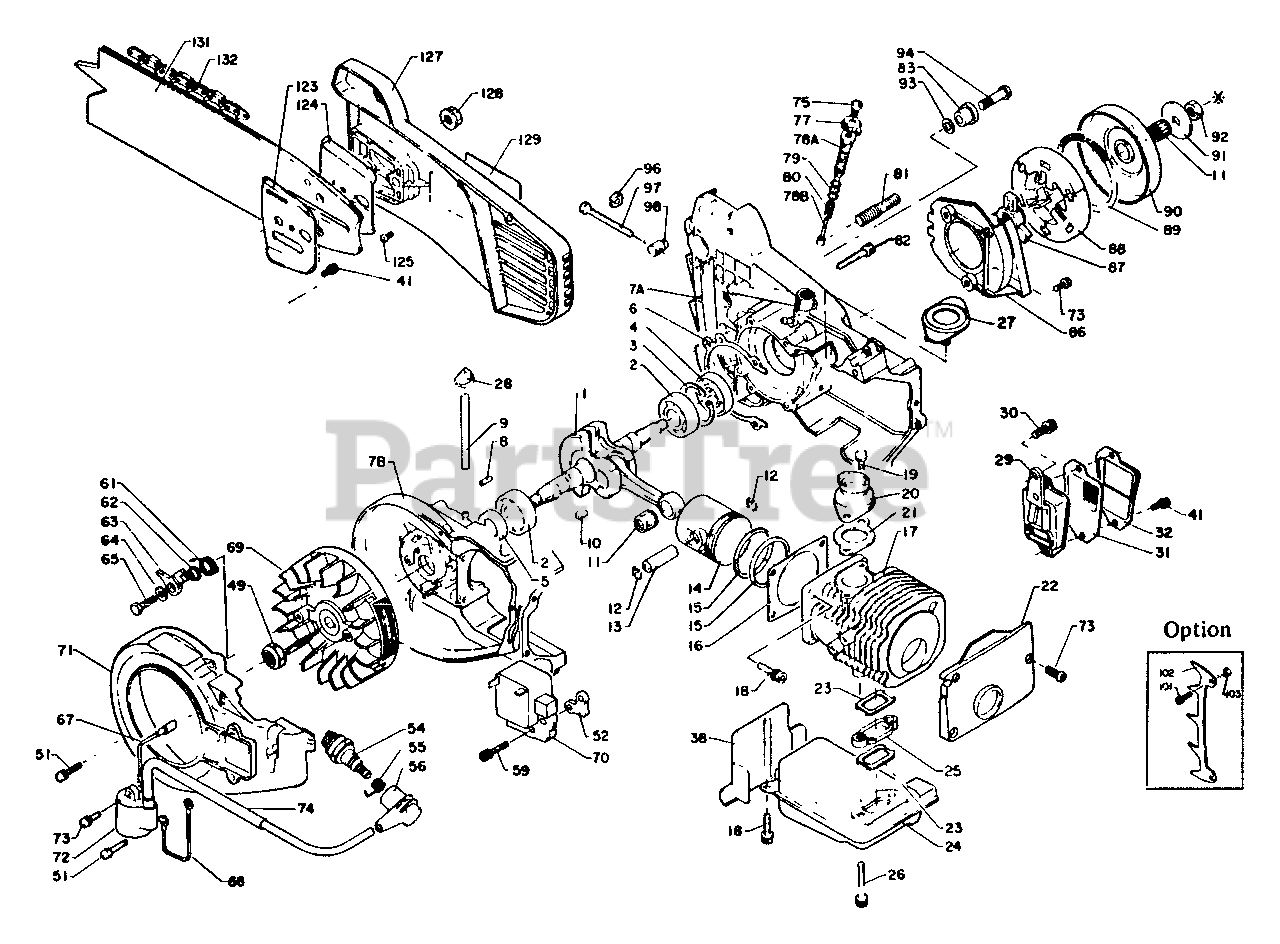

CS-500 EVL - Echo Chainsaw Cutting Attachment, Clutch, Engine, Exhaust, Ignition, Intake, Oiler Parts Diagram

Chainsaw

Cutting Attachment, Clutch, Engine, Exhaust, Ignition, Intake, Oiler Parts Diagram

  • Title

1

Echo 10010012332

CRANKSHAFT ASSY
(Superseded to 10010413730)

$

$

Not available

2

Echo 90081006202

BEARING, BALL - 6202

$11.99

$

In Stock, only 2 left!

0

3

Echo 90070200035

RING, RETAINING - 35

$2.49

$

In Stock, Qty 10

0

4

Echo 10021302830

SEAL, OIL

$7.99

$

In Stock, only 2 left!

0

5

Echo 10021300310

SEAL, OIL

$6.49

$

In Stock, Qty 9

0

6

Echo 10024215230

GASKET, CRANKCASE
(Superseded to Discontinued)

$

$

Not available

7

Echo 10020015230

CRANKCASE KIT
(Superseded to Discontinued)

$

$

Not available

7A

Echo 10020015230

CRANKCASE KIT
(Superseded to Discontinued)

Note: See Ref No. 7, Crankcase set, P/N 10020015230

$

$

Not available

7B

Echo 10020015230

CRANKCASE KIT
(Superseded to Discontinued)

Note: See Ref No. 7, Crankcase set, P/N 10020015230

$

$

Not available

8

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 5

0

9

Echo 13011014330

PIPE - 3X6X75 -- BLACK

Note: RePower BULK OPTION: 90014

$3.49

$

In Stock, only 2 left!

0

10

Echo 10014212330

KEY

$1.99

$

In Stock, Qty 7

0

11

Echo 10001212330

BEARING, NEEDLE
(Superseded to 10001212331)

$13.99

$

In Stock, only 2 left!

0

12

Echo 10001500120

RING, RETAINING - 8

$0.99

$

In Stock, Qty 5

0

13

Echo 10001300410

PIN, PISTON

$8.49

$

Usually ships in 2-4 days

0

14

Echo 10001012331

PISTON
(Superseded to 10000012330)

$

$

Not available

15

Echo 10001112330

RING, PISTON

$8.99

$

Usually ships in 2-4 days

0

16

Echo 10101012330

GASKET, CYLINDER
(Superseded to 10101012331)

$

$

Not available

17

Echo 10101115230

CYLINDER
(Superseded to Discontinued)

$

$

Not available

18

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

19

Echo 90024105010

SCREW - 5X10

$0.99

$

In Stock, only 3 left!

0

20

Echo 13050812331

ADAPTOR, INTAKE
(Superseded to Discontinued)

$

$

Not available

21

Echo 13001012330

GASKET, INTAKE
(Superseded to 13001012331)

$1.49

$

In Stock, only 3 left!

0

22

Echo 10151415230

COVER, CYLINDER

$33.99

$

Usually ships in 2-4 days

0

23

Echo 14551015230

GASKET, EXHAUST
(Superseded to 14551015231)

$2.49

$

In Stock, only 1 left!

0

24

Echo 14581012330

MUFFLER
(Superseded to Discontinued)

$

$

Not available

25

Echo 14551115230

BAFFLE, MUFFLER
(Superseded to Discontinued)

$

$

Not available

26

Echo 90016205045

SCREW - 5X40

$1.99

$

Usually ships in 2-4 days

0

27

Echo 13003412331

SEAL

$5.99

$

Usually ships in 2-4 days

0

28

Echo 13011412330

GROMMET

$2.99

$

Usually ships in 2-4 days

0

29

Echo 14580615230

ADAPTOR

$41.99

$

Usually ships in 2-4 days

0

30

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 15

0

31

Echo 14586215230

SCREEN, SPARK ARRESTOR

$7.49

$

Usually ships in 2-4 days

0

32

Echo 14586315230

GUIDE, EXHAUST

$7.49

$

Usually ships in 2-4 days

0

38

Echo 10027012330

INSULATOR

$15.99

$

Usually ships in 2-4 days

0

41

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

49

Echo 10014412331

NUT

$2.49

$

In Stock, Qty 5

0

51

Echo 90024204020

SCREW - 4X20

$0.99

$

In Stock, Qty 16

0

52

Echo 15011713730

SPACER

$3.49

$

Usually ships in 2-4 days

0

54

Echo 15901012330

SPARK PLUG -- BPM-6A
(Superseded to Discontinued)

$

$

Not available

55

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.99

$

In Stock, Qty 20+

0

56

Echo 15901203433

CAP, SPARK PLUG

$8.49

$

In Stock, Qty 20+

0

59

Echo 90016204022

SCREW - 4X22

$0.99

$

In Stock, Qty 20+

0

61

Echo 17723412330

SPRING, RETURN

$1.99

$

In Stock, Qty 10

0

62

Echo 17724712330

SPACER
(Superseded to 17724712331)

$3.49

$

In Stock, Qty 6

0

63

Echo 17721812330

PAWL, STARTER
(Superseded to Discontinued)

$

$

Not available

64

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

65

Echo 90010005020

BOLT - 5X20

$0.99

$

In Stock, Qty 8

0

67

Echo 15663015230

LEAD
(Superseded to 15663015231)

$7.49

$

Usually ships in 2-4 days

0

68

Echo 15663515230

LEAD - GROUND

$7.49

$

Usually ships in 2-4 days

0

69

Echo 15680115230

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

70

Echo 15660115230

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

71

Echo 10153515230

SHIELD, FAN
(Superseded to 10153515231)

$

$

Not available

72

Echo 15662615230

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

73

Echo 90024204014

SCREW - 4X14

$0.99

$

In Stock, Qty 5

0

74

Echo 15663315230

TUBE
(Superseded to Discontinued)

$

$

Not available

75

Echo 90022005010

SCREW - 5X10

$0.99

$

In Stock, Qty 7

0

77

Echo 43705911133

LOCKWASHER

$2.99

$

Usually ships in 2-4 days

0

78

Echo 43700003430

AUTO-OILER ASSY
(Superseded to Discontinued)

Note: INCLUDES ITEMS 78-80

$

$

Not available

78A

Echo 43700003430

AUTO-OILER ASSY
(Superseded to Discontinued)

$

$

Not available

78B

Echo 43700003430

AUTO-OILER ASSY
(Superseded to Discontinued)

$

$

Not available

79

Echo 43702002830

O-RING - 5

$2.49

$

In Stock, Qty 8

0

80

Echo 43701902830

SPRING

$1.49

$

In Stock, only 3 left!

0

81

Echo 43301112330

STUD, GUIDE BAR

$2.99

$

In Stock, only 2 left!

0

82

Echo 90016205030

SCREW - 5X30

$1.49

$

In Stock, Qty 6

0

83

Echo 43300012830

CHAIN CATCHER KIT
(Superseded to Discontinued)

$

$

Not available

93

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

94

Echo 90022005025

SCREW - 5X25

$0.99

$

In Stock, Qty 19

0

86

Echo 17531015230

SEAL, DUST

$13.99

$

Usually ships in 2-4 days

0

Echo 17500012330

CLUTCH ASSY
(Superseded to 17500016130)

$

$

Not available

87

Echo 17501603430

HUB, CLUTCH
(Superseded to 17500016131)

$

$

Not available

88

Echo 17501702830

SHOE, CLUTCH
(Superseded to Discontinued)

$

$

Not available

89

Echo 17501802830

SPRING, CLUTCH
(Superseded to Discontinued)

$

$

Not available

90

Echo 17500511030

DRUM, CLUTCH
(Superseded to 17500514330)

$

$

Not available

91

Echo 17501503430

WASHER, CLUTCH

$2.99

$

Usually ships in 2-4 days

0

92

Echo 10012903430

LOCKNUT
(Superseded to 61032003830)

$5.49

$

In Stock, only 2 left!

0

96

Echo 43302811030

CLIP

$0.99

$

In Stock, Qty 9

0

97

Echo 43301611031

SCREW, TENSIONER

$4.99

$

In Stock, Qty 5

0

98

Echo 43301402830

TENSIONER, CHAIN

$5.99

$

In Stock, only 1 left!

0

123

Echo 43301312332

PLATE, GUIDE - INNER

$7.99

$

In Stock, only 3 left!

0

124

Echo 43301212332

PLATE, GUIDE - OUTER

$7.49

$

In Stock, only 4 left!

0

125

Echo 90022003006

SCREW - 3X6

$0.99

$

In Stock, Qty 15

0

127

Echo 43301015230

GUARD, SPROCKET
(Superseded to Discontinued)

$

$

Not available

128

Echo 43301912330

NUT - FLANGE
(Superseded to V265000200)

$2.49

$

In Stock, Qty 20+

0

129

Echo 89002103932

LABEL - ECHO
(Superseded to 89011818331)

$

$

Not available

131

------------------

GUIDE BAR

$

$

Not available

132

------------------

CHAIN, SAW

$

$

Not available

101

Echo 90010505012

SCREW - 5X12

Note: OPTIONAL

$1.49

$

In Stock, only 2 left!

0

102

Echo 88021012330

SPIKE
(Superseded to Discontinued)

Note: OPTIONAL

$

$

Not available

103

Echo 90050000005

NUT - 5

Note: OPTIONAL

$0.99

$

In Stock, Qty 20+

0
