CS-500 EVLP - Echo Chainsaw Carburetor Assembly Parts Diagram

Dimensions: 400 x 254 x 274 mm. Weight: 5.8 kg dry. Engine: 2-stroke 49.9 cc. Carburetor: Walbro HDB. Ignition: CDI, NGK BPM6A plug. Starter: recoil. Transmission: centrifugal clutch. Fuel: 25:1/50:1 gasoline/2-stroke oil. Tanks: 0.50 L fuel, 0.25 L chain oil. Guide bar supplied. Chain: 20" 20B50, 16" 16850, 24" 24B50. Features: hand guards, front/rear lockout, throttle control.

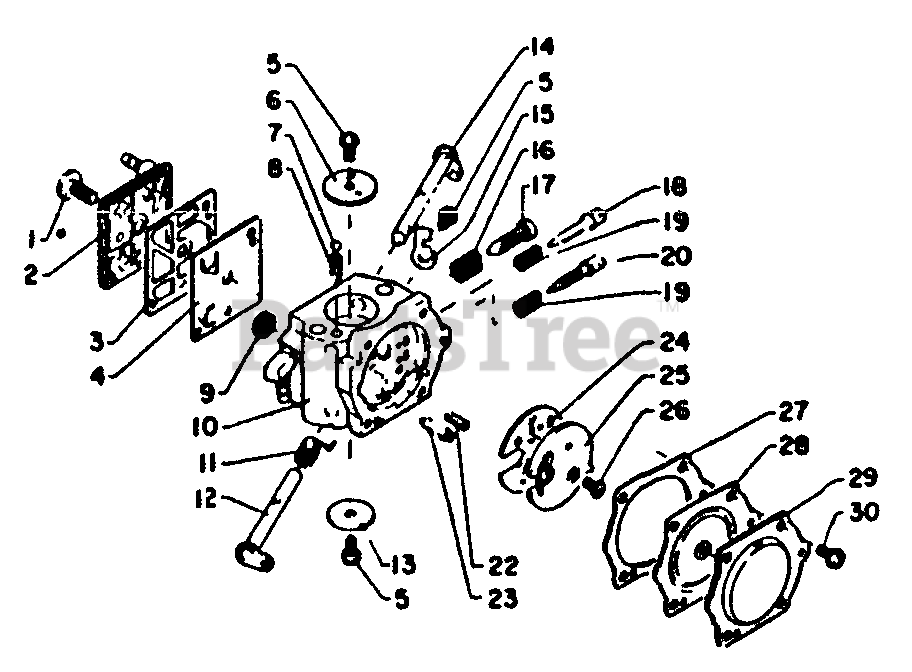

Carburetor Assembly Parts Diagram

  • Title

Echo 12300013730

CARBURETOR - HDB-3A
(Superseded to Discontinued)

Note: Consists of 1 thru 30. Except 21.

$

$

Not available

1

Echo 12311003930

SCREW

$0.99

$

Usually ships in 2-4 days

0

2

Echo 12312412330

COVER, PUMP
(Superseded to Discontinued)

$

$

Not available

3

Echo 12312512330

GASKET, FUEL PUMP

$3.99

$

In Stock, only 1 left!

0

4

Echo 12311212330

DIAPHRAGM, FUEL PUMP

$7.49

$

In Stock, Qty 5

0

5

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 6

0

6

Echo 12313212330

VALVE, CHOKE

$1.99

$

Usually ships in 2-4 days

0

7

Echo 12313610630

BALL, CHOKE FRICTION

$0.99

$

In Stock, only 1 left!

0

8

Echo 12313510630

SPRING

$1.49

$

Usually ships in 2-4 days

0

9

Echo 12312610631

SCREEN, FUEL INLET

$1.99

$

In Stock, Qty 20+

0

11

Echo 12311312330

SPRING, THROTTLE

$

$

Not available

12

Echo 12311712330

SHAFT, THROTTLE
(Superseded to Discontinued)

$

$

Not available

13

Echo 12311603930

VALVE, THROTTLE

$2.49

$

In Stock, only 2 left!

0

14

Echo 12313112330

SHAFT, CHOKE

$6.99

$

Usually ships in 2-4 days

0

15

Echo 12315612330

STOP, THROTTLE

$2.49

$

Usually ships in 2-4 days

0

16

Echo 12313311130

SPRING, IDLE ADJUST
(Superseded to Discontinued)

$

$

Not available

17

Echo 12313406530

SCREW, IDLE ADJUST

$1.49

$

Usually ships in 2-4 days

0

18

Echo 12311812330

NEEDLE, IDLE

$5.49

$

Usually ships in 2-4 days

0

19

Echo 12312103930

SPRING, NEEDLE

$7.49

$

In Stock, Qty 5

0

20

Echo 12312012330

NEEDLE, HIGH SPEED

$

$

Not available

22

Echo 12312203930

SPRING

$

$

Not available

23

Echo 12313703930

VALVE, INLET NEEDLE
(Superseded to Discontinued)

$

$

Not available

24

Echo 12316412330

GASKET, CIRCUIT PLATE
(Superseded to Discontinued)

$

$

Not available

25

Echo 12316612330

PLATE, CIRCUIT
(Superseded to Discontinued)

$

$

Not available

26

Echo 12316712330

SCREW, CIRCUIT PLATE

$0.99

$

Usually ships in 2-4 days

0

27

Echo 12314010630

GASKET, METERING DIAPHRAGM

$2.49

$

Usually ships in 2-4 days

0

28

Echo 12314112330

DIAPHRAGM, METERING
(Superseded to Discontinued)

$

$

Not available

29

Echo 12314212330

COVER, DIAPHRAGM

$5.49

$

Usually ships in 2-4 days

0

30

Echo 12314403930

SCREW

$0.99

$

Usually ships in 2-4 days

0

10

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available
