CS-500 EVLP - Echo Chainsaw Chain Brake Parts Diagram

Dimensions: 400 x 254 x 274 mm. Weight: 5.8 kg dry. Engine: 2-stroke 49.9 cc. Carburetor: Walbro HDB. Ignition: CDI, NGK BPM6A plug. Starter: recoil. Transmission: centrifugal clutch. Fuel: 25:1/50:1 gasoline/2-stroke oil. Tanks: 0.50 L fuel, 0.25 L chain oil. Guide bar supplied. Chain: 20" 20B50, 16" 16850, 24" 24B50. Features: hand guards, front/rear lockout, throttle control.

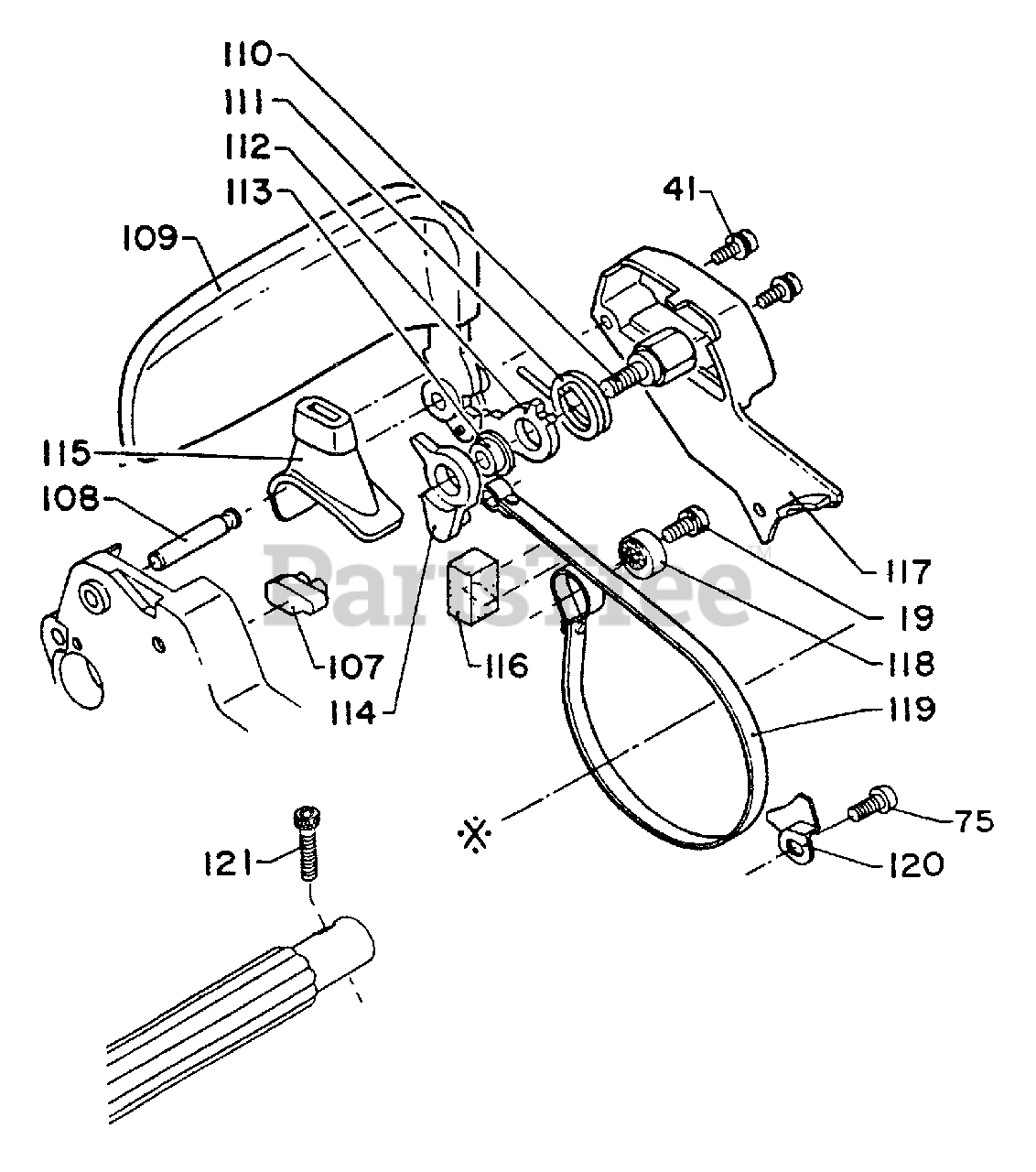

Chain Brake Parts Diagram

  • Title

Echo 43320015230

CHAIN BRAKE ASSY

$88.99

$

Usually ships in 2-4 days

0

19

Echo 90024105010

SCREW 5×10

$0.99

$

In Stock, only 3 left!

0

41

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

75

Echo 90022005010

SCREW 5×10

$0.99

$

In Stock, Qty 7

0

107

Echo 43314912530

RESET, BRAKE

$3.99

$

Usually ships in 2-4 days

0

108

Echo 43311312330

SCREW

$3.99

$

Usually ships in 2-4 days

0

109

Echo 43310512331

HANDLE, BRAKE
(Superseded to 43310512332)

$

$

Not available

110

Echo 43313412330

BOLT

$7.99

$

In Stock, only 1 left!

0

111

Echo 43311412330

SPRING, RETURN
(Superseded to Discontinued)

$

$

Not available

112

Echo 43311912330

STOPPER

$4.99

$

In Stock, only 4 left!

0

113

Echo 43311512330

SPACER

$1.49

$

In Stock, Qty 5

0

114

Echo 43311712330

CONNECTOR
(Superseded to Discontinued)

$

$

Not available

115

Echo 43331212330

COVER, BRAKE
(Superseded to Discontinued)

$

$

Not available

116

Echo 43331312330

SEAL
(Superseded to Discontinued)

$

$

Not available

117

Echo 43331012330

COVER, BRAKE
(Superseded to Discontinued)

$

$

Not available

118

Echo 43314212330

ADJUSTER, BRAKE BAND

$2.49

$

In Stock, only 2 left!

0

119

Echo 43312312330

BAND, BRAKE

$9.99

$

In Stock, only 1 left!

0

120

Echo 43314414330

RETAINER, BRAKE BAND

$2.49

$

Usually ships in 2-4 days

0

121

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0
