CS-500 VL - Echo Chainsaw (SN: 001001 - 049000) Carburetor Assembly Parts Diagram
Model: CS-500VL Dimensions: 400 x 254 x 274 mm (15.8 x 9.8 x 10.8 in). Weight: 5.8 kg (12.8 lb) dry. Engine: air-cooled 2-stroke single cylinder, 49.9 cc (3.0 cu in). Carburetor: Walbro HDB diaphragm. Ignition: Magneto (flywheel) or CDI. Spark plug: NGK BPM6A. Starter: recoil. Power transmission: automatic centrifugal clutch. Fuel: 0.5 L (16.9 fl oz) gasoline/2-stroke oil mix (25:1 or 50:1). Chain oil: 0.25 L (8.5 fl oz). Guide bar: 20 in, 3/8" pitch, 70 links. Chain: asymmetrical-low kick, 3/8".

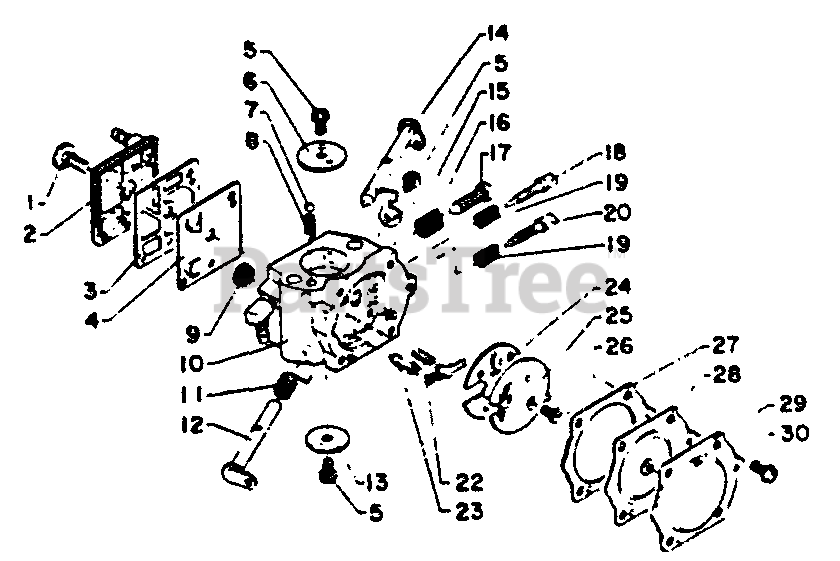

Carburetor Assembly Parts Diagram
Echo 12300012330
Note: Consisting of 1 thru 31. Except 10 and 21.
$
$
Not available
Echo 12311003930
$0.99
$
$
$
Not available
Echo 12312512330
$3.99
$
Echo 12311212330
$7.49
$
Echo 12311403930
$1.49
$
Echo 12313212330
$1.99
$
Echo 12313610630
$0.99
$
Echo 12313510630
$1.49
$
$1.99
$
Echo 12311312330
$
$
Not available
$
$
Not available
Echo 12311603930
$2.49
$
Echo 12313112330
$6.99
$
Echo 12315612330
$2.49
$
$
$
Not available
Echo 12313406530
$1.49
$
$5.49
$
Echo 12312103930
$7.49
$
Echo 12312012330
$
$
Not available
Echo 12312203930
$
$
Not available
$
$
Not available
$
$
Not available
$
$
Not available
Echo 12316712330
$0.99
$
Echo 12314010630
$2.49
$
$
$
Not available
Echo 12314212330
$5.49
$
Echo 12314403930
$0.99
$
Note: NOT AVAILABLE SEPARATELY
$
$
Not available
