CS-500 VL - Echo Chainsaw (SN: 049001 - 999999) Chain Brake Parts Diagram

Model: CS-500VL Dimensions: 400 x 254 x 274 mm (15.8 x 9.8 x 10.8 in). Weight: 5.8 kg (12.8 lb) dry. Engine: air-cooled 2-stroke single cylinder, 49.9 cc (3.0 cu in). Carburetor: Walbro HDB diaphragm. Ignition: Magneto (flywheel) or CDI. Spark plug: NGK BPM6A. Starter: recoil. Power transmission: automatic centrifugal clutch. Fuel: 0.5 L (16.9 fl oz) gasoline/2-stroke oil mix (25:1 or 50:1). Chain oil: 0.25 L (8.5 fl oz). Guide bar: 20 in, 3/8" pitch, 70 links. Chain: asymmetrical-low kick, 3/8".

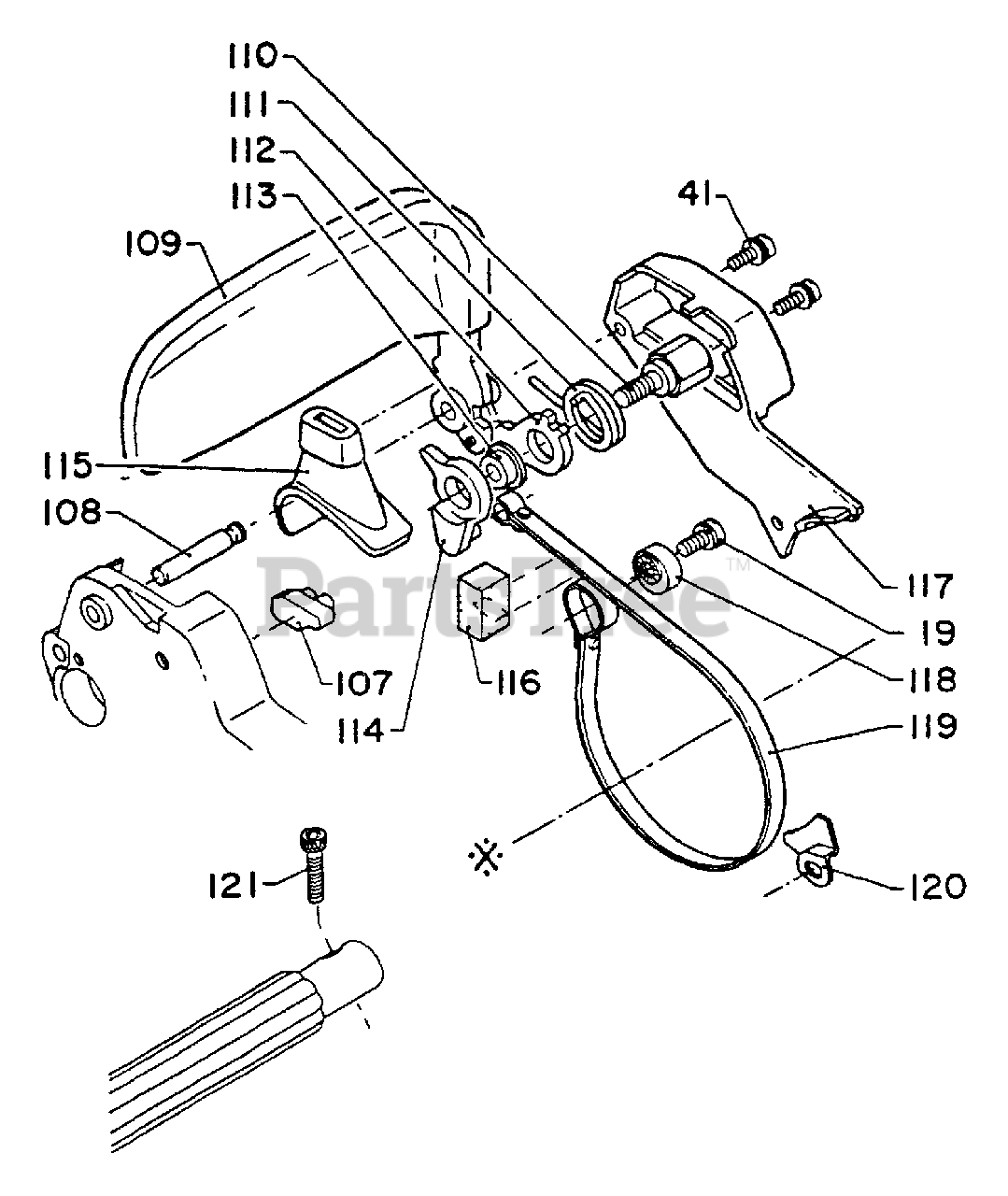

Chain Brake Parts Diagram

  • Title

Echo 43310012331

CHAIN BRAKE ASSY
(Superseded to 43310012332)

$

$

Not available

19

Echo 90024145010

SCREW - 5×10

$

$

Currently unavailable

41

Echo 90024244010

SCREW - 4×10

$

$

Currently unavailable

107

Echo 43314912530

RESET, BRAKE

$3.99

$

Usually ships in 2-4 days

0

108

Echo 43311312330

SCREW

$3.99

$

Usually ships in 2-4 days

0

109

Echo 43310512331

HANDLE, BRAKE
(Superseded to 43310512332)

$

$

Not available

110

Echo 43313412330

BOLT

$7.99

$

In Stock, only 1 left!

0

111

Echo 43311412330

SPRING, RETURN
(Superseded to Discontinued)

$

$

Not available

112

Echo 43311912330

STOPPER

$4.99

$

In Stock, only 4 left!

0

113

Echo 43311512330

SPACER

$1.49

$

In Stock, Qty 5

0

114

Echo 43311712330

CONNECTOR
(Superseded to Discontinued)

$

$

Not available

115

Echo 43331212330

COVER, BRAKE
(Superseded to Discontinued)

$

$

Not available

116

Echo 43331312330

SEAL
(Superseded to Discontinued)

$

$

Not available

117

Echo 43331012330

COVER, BRAKE
(Superseded to Discontinued)

$

$

Not available

118

Echo 43314212330

ADJUSTER, BRAKE BAND

$2.49

$

In Stock, only 2 left!

0

119

Echo 43312312330

BAND, BRAKE

$9.99

$

In Stock, only 1 left!

0

120

Echo 43314412330

RETAINER
(Superseded to Discontinued)

$

$

Not available

121

Echo 90016245025

SCREW - 5×25

$

$

Currently unavailable
