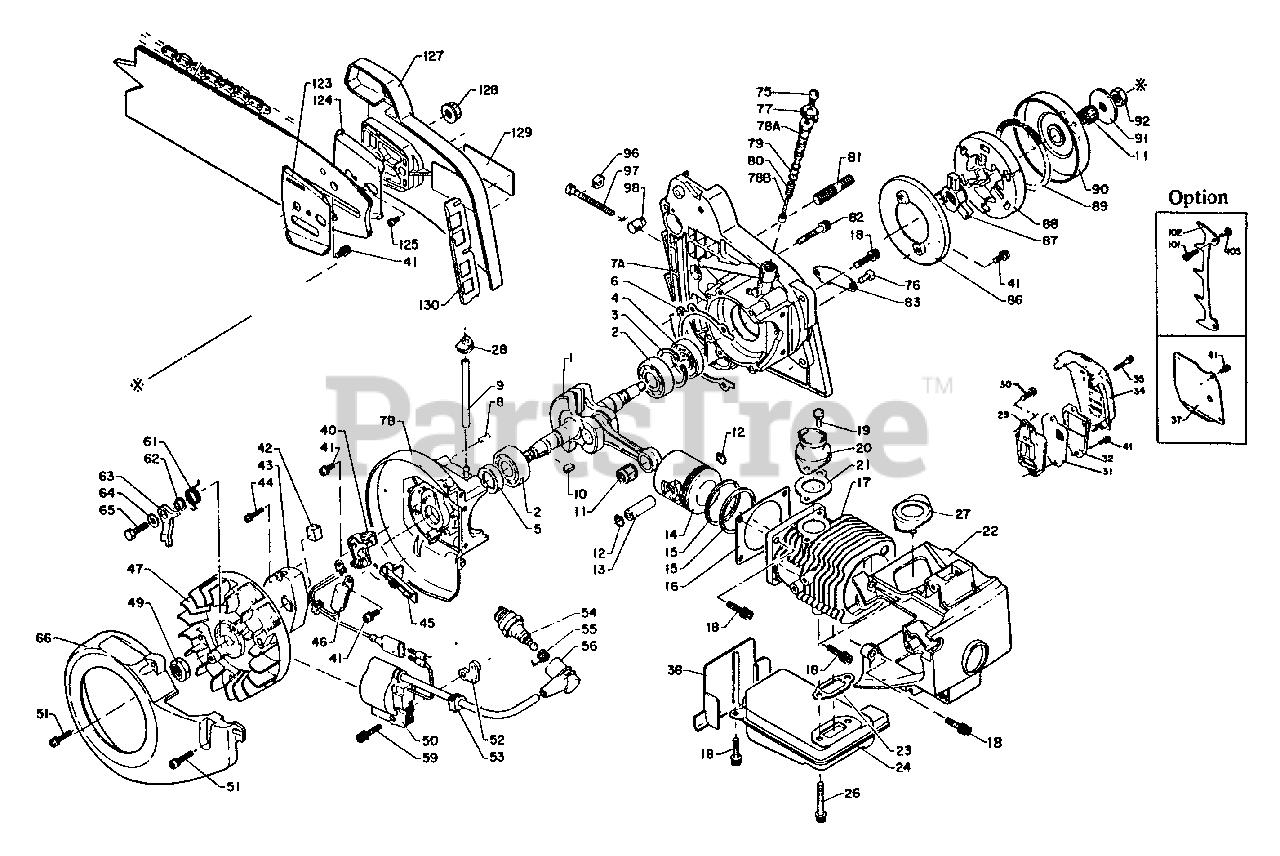

CS-500 VL - Echo Chainsaw (SN: 049001 - 999999) Engine Ext.,Ignition,Clutch,Oiler,Auto,Intake,Exhst,Cutting Attch Parts Diagram

Model: CS-500VL Dimensions: 400 x 254 x 274 mm (15.8 x 9.8 x 10.8 in). Weight: 5.8 kg (12.8 lb) dry. Engine: air-cooled 2-stroke single cylinder, 49.9 cc (3.0 cu in). Carburetor: Walbro HDB diaphragm. Ignition: Magneto (flywheel) or CDI. Spark plug: NGK BPM6A. Starter: recoil. Power transmission: automatic centrifugal clutch. Fuel: 0.5 L (16.9 fl oz) gasoline/2-stroke oil mix (25:1 or 50:1). Chain oil: 0.25 L (8.5 fl oz). Guide bar: 20 in, 3/8" pitch, 70 links. Chain: asymmetrical-low kick, 3/8".

Engine Ext.,Ignition,Clutch,Oiler,Auto,Intake,Exhst,Cutting Attch Parts Diagram

  • Title

1

Echo 10010012332

CRANKSHAFT ASSY
(Superseded to 10010413730)

$

$

Not available

2

Echo 90081006202

BEARING, BALL 6202

$11.99

$

In Stock, Qty 12

0

3

Echo 90070200035

RING, SNAP 35

$2.49

$

In Stock, Qty 8

0

4

Echo 100213-02830

SEAL, OIL 18

$7.99

$

In Stock, only 1 left!

0

5

Echo 100213-00310

SEAL, OIL

$6.49

$

In Stock, Qty 19

0

6

Echo 10024212331

GASKET, CRANKCASE
(Superseded to Discontinued)

$

$

Not available

7

Echo 10020012332

CRANKCASE KIT
(Superseded to 10020412331)

Note: Consists of 7A, 7B and 8.

$

$

Not available

7A

Echo 10020012332

CRANKCASE KIT
(Superseded to 10020412331)

Note: See Ref No. 7, Crankcase set, P/N 10020012332

$

$

Not available

7B

Echo 10020012332

CRANKCASE KIT
(Superseded to 10020412331)

Note: See Ref No. 7, Crankcase set, P/N 10020012332

$

$

Not available

8

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

9

Echo 13011014330

PIPE, IMPULSE 3×6×75

Note: RePower BULK OPTION: 90014

$3.49

$

In Stock, Qty 12

0

10

Echo 10014212330

KEY, WOODRUFF

$1.99

$

In Stock, Qty 20+

0

11

Echo 100012-12330

BEARING, NEEDLE
(Superseded to 10001212331)

$13.99

$

In Stock, only 2 left!

0

12

Echo 100015-00120

RING, SNAP 8

$0.99

$

In Stock, Qty 10

0

13

Echo 100013-00410

PIN, PISTON

$8.49

$

Usually ships in 2-4 days

0

14

Echo 10001012331

PISTON
(Superseded to 10000012330)

$

$

Not available

15

Echo 10001112330

RING, PISTON

$8.99

$

Usually ships in 2-4 days

0

16

Echo 10101012330

GASKET, CYLINDER
(Superseded to 10101012331)

$

$

Not available

17

Echo 10101112330

CYLINDER
(Superseded to Discontinued)

$

$

Not available

18

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

19

Echo 90024105010

SCREW 5×10

$0.99

$

In Stock, only 3 left!

0

20

Echo 13050812331

ADAPTOR, INTAKE
(Superseded to Discontinued)

$

$

Not available

21

Echo 13001012330

GASKET, INTAKE
(Superseded to 13001012331)

$1.49

$

In Stock, only 2 left!

0

22

Echo 10151412332

COVER, ENGINE
(Superseded to Discontinued)

$

$

Not available

23

Echo 14551012330

GASKET, EXHAUST
(Superseded to 14551012331)

$2.99

$

In Stock, only 1 left!

0

24

Echo 14561012330

MUFFLER
(Superseded to Discontinued)

$

$

Not available

26

Echo 90016205035

BOLT M5×35

$1.99

$

In Stock, Qty 16

0

27

Echo 13003412331

SEAL

$5.99

$

Usually ships in 2-4 days

0

28

Echo 13011412330

GROMMET

$2.99

$

Usually ships in 2-4 days

0

29

Echo 14580612331

ADAPTER
(Superseded to 14580615230)

$41.99

$

Usually ships in 2-4 days

0

30

Echo 90016205014

BOLT 5×14

$1.49

$

In Stock, Qty 7

0

31

Echo 14586212332

SCREEN, SPARK ARRESTER
(Superseded to 14586215230)

$7.49

$

Usually ships in 2-4 days

0

32

Echo 14586312331

RETAINER, SCREEN
(Superseded to 14586315230)

$7.49

$

Usually ships in 2-4 days

0

34

Echo 14587112331

COVER, EXHAUST
(Superseded to Discontinued)

$

$

Not available

35

Echo 90016204025

BOLT 4×25

$1.49

$

In Stock, Qty 7

0

38

Echo 10027012330

INSULATOR

$15.99

$

Usually ships in 2-4 days

0

40

Echo 15610112330

CONTACT POINT SET
(Superseded to Discontinued)

$

$

Not available

42

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

42

Echo 15613404630

PAD, OIL

$2.49

$

Usually ships in 2-4 days

0

43

Echo 15612812331

COVER, BREAKER
(Superseded to Discontinued)

$

$

Not available

44

Echo 90024203018

SCREW 3×18

$0.99

$

Usually ships in 2-4 days

0

45

Echo 15911212330

CLAMP
(Superseded to Discontinued)

$

$

Not available

46

Echo 15610412330

CONDENSER
(Superseded to Discontinued)

$

$

Not available

47

Echo 15620512332

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

49

Echo 10014412331

NUT

$2.49

$

In Stock, Qty 5

0

50

Echo 15610812331

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

51

Echo 900242-04020

SCREW 4×20

$0.99

$

In Stock, Qty 16

0

52

Echo 15011703930

SPACER
(Superseded to 15011713730)

$3.49

$

Usually ships in 2-4 days

0

53

Echo 15011003930

BUSHING
(Superseded to Discontinued)

$

$

Not available

54

Echo 15901012330

SPARK PLUG - BPM6A
(Superseded to Discontinued)

$

$

Not available

55

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

56

Echo 15901203433

CAP, SPARK PLUG

$8.49

$

In Stock, Qty 20+

0

59

Echo 90016204022

SCREW 4×22

$0.99

$

In Stock, Qty 20+

0

61

Echo 17723412330

SPRING

$1.99

$

In Stock, Qty 6

0

62

Echo 17724712330

SPACER
(Superseded to 17724712331)

$3.49

$

In Stock, only 4 left!

0

63

Echo 17721812330

RATCHET
(Superseded to Discontinued)

$

$

Not available

64

Echo 90060200005

WASHER 5.3×10×1
(Superseded to 90060300005)

$0.99

$

In Stock, Qty 20+

0

65

Echo 90010005020

BOLT - 5×20

$0.99

$

In Stock, Qty 8

0

66

Echo 10153512330

SHIELD, FAN
(Superseded to Discontinued)

$

$

Not available

75

Echo 43701611131

SCREW
(Superseded to 90022005010)

$0.99

$

In Stock, Qty 7

0

76

Echo 90022005010

SCREW 5×10

$0.99

$

In Stock, Qty 7

0

77

Echo 43705911133

WASHER, LOCK

$2.99

$

Usually ships in 2-4 days

0

78

Echo 43700203431

PUMP KIT
(Superseded to 43700003430)

Note: Consists of 78A, and 78B.

$

$

Not available

78A

Echo 43700203431

PUMP KIT
(Superseded to 43700003430)

Note: See Ref No. 78, Plunger & cylinder set, P/N 43700203431

$

$

Not available

78B

Echo 43700203431

PUMP KIT
(Superseded to 43700003430)

Note: See Ref No. 78, Plunger & cylinder set, P/N 43700203431

$

$

Not available

79

Echo 43702002830

O-RING

$2.49

$

In Stock, Qty 7

0

80

Echo 43701902830

SPRING

$1.49

$

In Stock, only 3 left!

0

81

Echo 43301112330

STUD, GUIDE BAR

$2.99

$

Usually ships in 2-4 days

0

82

Echo 90016205030

BOLT 5×30

$1.49

$

In Stock, only 2 left!

0

83

Echo 43302612330

CATCHER, CHAIN
(Superseded to Discontinued)

$

$

Not available

86

Echo 17531012330

SEAL, DUST
(Superseded to Discontinued)

$

$

Not available

Echo 17500012330

CLUTCH ASSY
(Superseded to 17500016130)

Note: Consists of 87 thru 89.

$

$

Not available

87

Echo 17501603430

HUB, CLUTCH
(Superseded to 17500016131)

$

$

Not available

88

Echo 17501702830

SHOE, CLUTCH
(Superseded to Discontinued)

$

$

Not available

89

Echo 17501802830

SPRING, CLUTCH
(Superseded to Discontinued)

$

$

Not available

90

Echo 17500511030

DRUM, CLUTCH - 3/8"
(Superseded to 17500514330)

$

$

Not available

91

Echo 17501503430

WASHER, CLUTCH

$2.99

$

Usually ships in 2-4 days

0

92

Echo 10012903430

LOCKNUT
(Superseded to 61032003830)

$5.49

$

In Stock, only 2 left!

0

96

Echo 43302811030

CLIP

$0.99

$

In Stock, Qty 20+

0

97

Echo 43301611030

SCREW, TENSIONER
(Superseded to 43301611031)

$4.99

$

In Stock, Qty 20+

0

98

Echo 43301402830

TENSIONER, CHAIN

$5.99

$

In Stock, Qty 18

0

123

Echo 43301312331

PLATE, GUIDE - INNER
(Superseded to 43301312332)

$7.99

$

In Stock, Qty 8

0

124

Echo 43301212331

PLATE, GUIDE - OUTER
(Superseded to 43301212332)

$7.49

$

In Stock, only 4 left!

0

125

Echo 90022003006

SCREW 3×6

$0.99

$

In Stock, Qty 20+

0

127

Echo 43301012331

GUARD, SPROCKET
(Superseded to 43301012332)

$

$

Not available

128

Echo 43301912330

NUT, FLANGE M8×1.25
(Superseded to V265000200)

$2.49

$

In Stock, Qty 20+

0

129

Echo 89002103931

LABEL - ECHO
(Superseded to 89011815130)

$1.99

$

In Stock, only 4 left!

0

130

Echo 43302512330

PROTECTOR

$2.49

$

Usually ships in 2-4 days

0

37

Echo 10157912330

COVER, CYLINDER
(Superseded to Discontinued)

Note: OPTIONAL

$

$

Not available

41

Echo 900242-04010

SCREW 4×10

Note: OPTIONAL

$0.99

$

In Stock, Qty 20+

0

101

Echo 90010505012

BOLT 5×12

Note: OPTIONAL

$1.49

$

In Stock, Qty 18

0

102

Echo 88021012330

BUMPER, SPIKED
(Superseded to Discontinued)

Note: OPTIONAL

$

$

Not available

103

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

Note: OPTIONAL

$0.99

$

In Stock, Qty 20+

0
