CS-500 VL - Echo Chainsaw (SN: 049001 - 999999) Starter, Carburetor, Handles, Air Cleaner, Fuel Sys, Oil Tank Parts Diagram

Chainsaw

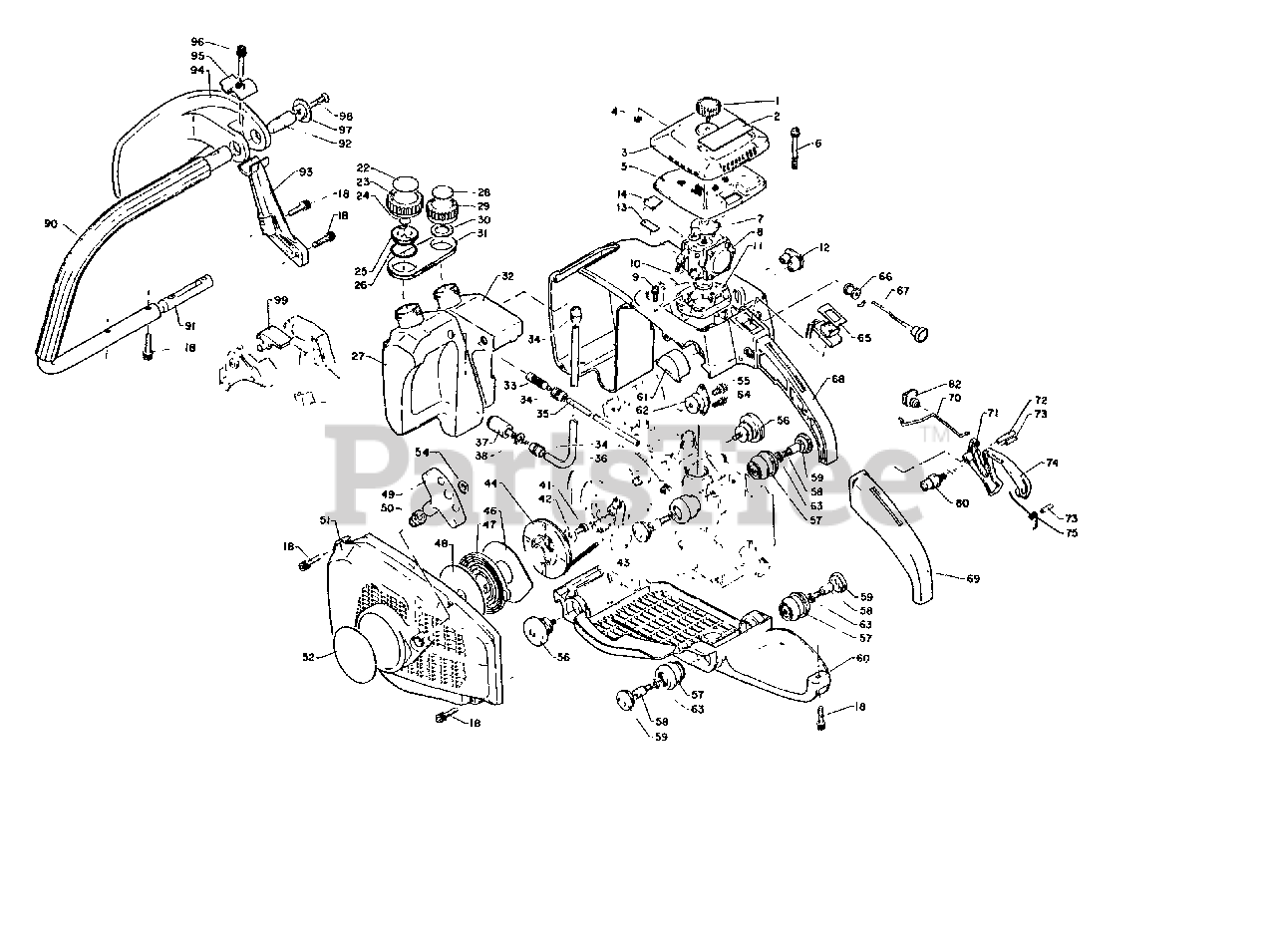

Starter, Carburetor, Handles, Air Cleaner, Fuel Sys, Oil Tank Parts Diagram

  • Title

1

Echo 13040603930

THUMBSCREW
(Superseded to 13040614330)

$

$

Not available

2

Echo 89015112330

LABEL - CAUTION
(Superseded to 89015112331)

$

$

Not available

3

Echo 13031312332

COVER, AIR FILTER
(Superseded to 13031312333)

$10.99

$

Usually ships in 2-4 days

0

4

Echo 90070000003

RING, RETAINING - 3

$0.99

$

In Stock, Qty 6

0

5

Echo 13031012531

FILTER, AIR
(Superseded to Discontinued)

$

$

Not available

6

Echo 90024205045

SCREW - 5X40

$0.99

$

Usually ships in 2-4 days

0

7

Echo 13042012332

BRACKET, AIR CLEANER

$6.49

$

Usually ships in 2-4 days

0

8

Echo 12300012332

CARBURETOR
(Superseded to 12300014331)

$

$

Not available

9

Echo 90024204012

SCREW - 4X12

$0.99

$

In Stock, Qty 20+

0

10

Echo 13051112330

SEAL
(Superseded to Discontinued)

$

$

Not available

11

Echo 13001312331

ADAPTOR
(Superseded to Discontinued)

$

$

Not available

12

Echo 12901012330

GROMMET
(Superseded to Discontinued)

$

$

Not available

13

Echo 89015512330

LABEL - OIL
(Superseded to Discontinued)

$

$

Not available

14

Echo 35113712330

STOPPER

$1.49

$

Usually ships in 2-4 days

0

18

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

Echo 13160012330

CAP ASSY
(Superseded to 13160012331)

$

$

Not available

22

Echo 89015403930

LABEL - FUEL MIX
(Superseded to Discontinued)

$

$

Not available

23

Echo 13101712330

CAP
(Superseded to Discontinued)

$

$

Not available

24

Echo 13131400330

VENT

$11.99

$

In Stock, Qty 5

0

25

Echo 13101512330

HOLDER, VENT
(Superseded to 13101514531)

$3.49

$

Usually ships in 2-4 days

0

26

Echo 90072000022

O-RING - 22

$1.99

$

In Stock, Qty 15

0

27

Echo 13101012331

TANK, FUEL
(Superseded to 13101017330)

$

$

Not available

Echo 43600212330

CAP ASSY
(Superseded to 43600213630)

$

$

Not available

28

Echo 89015303930

LABEL - OIL
(Superseded to 89015311430)

$

$

Not available

29

Echo 43600012330

CAP, OIL TANK
(Superseded to 43600112330)

$

$

Not available

30

Echo 43601212330

GASKET, CAP

$0.99

$

In Stock, only 3 left!

0

31

Echo 13103812331

CONNECTOR

$7.99

$

In Stock, only 1 left!

0

32

Echo 43601012332

TANK, OIL
(Superseded to Discontinued)

$

$

Not available

33

Echo 43620512330

FILTER, OIL
(Superseded to 43620514730)

$8.99

$

In Stock, only 4 left!

0

34

Echo 13211512330

GROMMET

$1.49

$

In Stock, Qty 20+

0

35

Echo 43720512330

OIL PIPE KIT
(Superseded to Discontinued)

$

$

Not available

36

Echo 13200712330

FUEL PIPE KIT
(Superseded to Discontinued)

$

$

Not available

37

Echo 13120505230

FILTER, FUEL
(Superseded to 13120002830)

$8.99

$

In Stock, Qty 20+

0

38

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

Echo 17720012331

STARTER ASSY
(Superseded to 17720012332)

$

$

Not available

41

Echo 90024105010

SCREW - 5X10

$0.99

$

In Stock, Qty 6

0

42

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

43

Echo 17722602830

ROPE, STARTER
(Superseded to 17722607060)

$10.99

$

In Stock, Qty 13

0

44

Echo 17720612331

REEL, ROPE
(Superseded to 17720414330)

$28.99

$

Usually ships in 2-4 days

0

46

Echo 17724212330

PLATE, STARTER

$5.49

$

In Stock, Qty 7

0

47

Echo 17722002834

SPRING, REWIND

$21.99

$

In Stock, Qty 17

0

48

Echo 17722102830

PLATE, STARTER

$5.99

$

In Stock, Qty 12

0

49

Echo 17722812330

GRIP, STARTER

$25.99

$

In Stock, Qty 15

0

50

Echo 17722700230

GUIDE, ROPE
(Superseded to 17722705330)

$

$

Not available

51

Echo 10150712331

CASE, STARTER
(Superseded to 10150712332)

$

$

Not available

54

Echo 17722914330

RING, RETAINING

$1.49

$

In Stock, Qty 7

0

52

Echo 89011212330

LABEL - ECHO
(Superseded to 89012112331)

$

$

Not available

55

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

56

Echo 10090512330

CUSHION
(Superseded to Discontinued)

$

$

Not available

57

Echo 10091012530

CUSHION

$

$

Not available

58

Echo 10091512530

SCREW
(Superseded to 10091514332)

$3.49

$

In Stock, only 2 left!

0

59

Echo 10091814330

CAP, CUSHION

$1.99

$

In Stock, Qty 20+

0

60

Echo 35112312330

SUPPORT
(Superseded to Discontinued)

$

$

Not available

61

Echo 35113814331

COVER, CUSHION
(Superseded to 35113814332)

$

$

Not available

62

Echo 10092112331

CUSHION

$8.49

$

Usually ships in 2-4 days

0

63

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, only 4 left!

0

64

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

65

Echo 16340012330

IGNITION SWITCH ASSY
(Superseded to Discontinued)

$

$

Not available

66

Echo 17881011231

GROMMET

$1.49

$

Usually ships in 2-4 days

0

67

Echo 17851012330

ROD, CHOKE

$5.99

$

Usually ships in 2-4 days

0

68

Echo 35111012331

HANDLE - REAR

$133.99

$

Usually ships in 2-4 days

0

69

Echo 35111112330

GRIP, HANDLE - REAR
(Superseded to Discontinued)

$

$

Not available

70

Echo 17801112331

ROD, THROTTLE

$2.99

$

Usually ships in 2-4 days

0

71

Echo 17801012331

TRIGGER, THROTTLE
(Superseded to Discontinued)

$

$

Not available

72

Echo 90034050025

PIN - SPRING -- 5X25
(Superseded to Discontinued)

$

$

Not available

73

Echo 90034040013

PIN - SPRING -- 4X13

$0.99

$

In Stock, Qty 9

0

74

Echo 17809012330

LOCKOUT, THROTTLE
(Superseded to Discontinued)

$

$

Not available

75

Echo 17809110531

SPRING, LOCKOUT LEVER

$1.99

$

In Stock, only 1 left!

0

80

Echo 17830212330

LATCH, THROTTLE
(Superseded to 17830237930)

$9.99

$

In Stock, only 1 left!

0

82

Echo 17821012330

GROMMET

$1.49

$

Usually ships in 2-4 days

0

90

Echo 35150912330

HANDLE - FRONT
(Superseded to Discontinued)

$

$

Not available

91

Echo 35161212330

Insert, front handle (L)
(Superseded to Discontinued)

$

$

Not available

92

Echo 35161710531

SPACER

$3.49

$

Usually ships in 2-4 days

0

93

Echo 35161412330

BRACKET, HANDLE - UPPER
(Superseded to Discontinued)

$

$

Not available

94

Echo 35182610130

GUARD
(Superseded to Discontinued)

$

$

Not available

95

Echo 35184012330

STOPPER
(Superseded to Discontinued)

$

$

Not available

96

Echo 90016205030

SCREW - 5X30

$0.99

$

In Stock, Qty 5

0

97

Echo 35183310130

RETAINER, GUARD

$4.99

$

In Stock, only 1 left!

0

98

Echo 90021405020

SCREW - 5X20

$0.99

$

Usually ships in 2-4 days

0

99

Echo 10061212331

COVER
(Superseded to 10061212332)

$

$

Not available
