CS-5000 - Echo Chainsaw (Type 1E) Carburetor Parts Diagram

CS-5000 Technical Specifications: 410x225x280 mm (16.1x8.9x11.6 in) 11.1 lb (no bar/chain). Air-cooled 2-stroke single-cylinder 48.3 cc (3.01 cu in). Diaphragm fuel system, Champion CJ-8Y or NGK BPM-8Y magneto. Electric starter, 50:1 automatic centrifugal clutch. Fuel tank 6.47 fl oz (15.9 ml); oil tank 0.29 fl oz (3.8 ml).

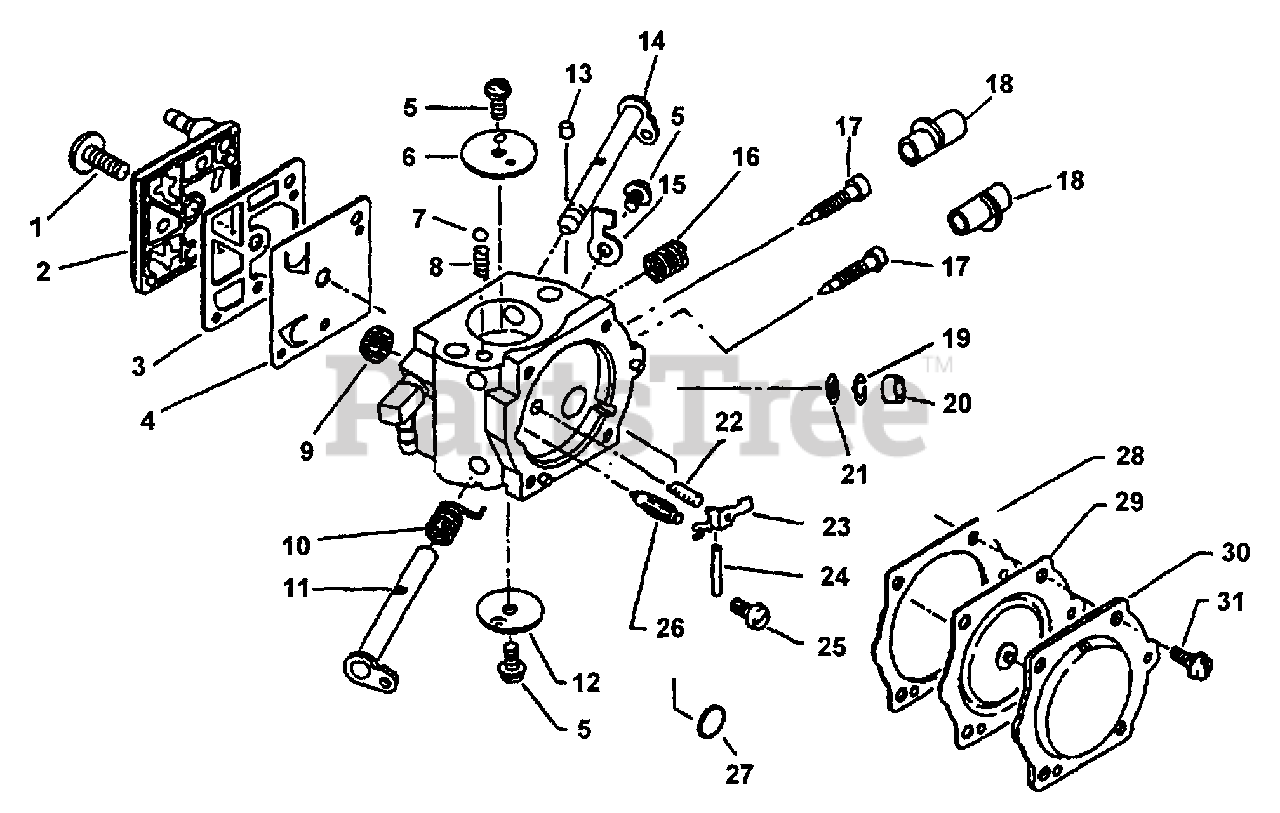

Carburetor Parts Diagram

  • Title

Echo 12300039831

CARBURETOR - HDA-145A
(Superseded to 12300039832)

Note: INCLUDES ITEMS 1 - 31

$152.99

$

Usually ships in 2-4 days

0

1

Echo 12311003930

SCREW

$0.99

$

Usually ships in 2-4 days

0

2

Echo 12312419830

COVER, FUEL PUMP

$9.99

$

In Stock, only 2 left!

0

3

GASKET, PUMP

Note: INCLUDES REBUILD KIT PART NO. 12310039830 AND DIAPHRAGM/GASKET KIT PART NO. 12310117330

$

$

Not available

4

DIAPHRAGM, PUMP

Note: INCLUDES REBUILD KIT PART NO. 12310039830 AND DIAPHRAGM/GASKET KIT PART NO. 12310117330

$

$

Not available

5

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 6

0

6

Echo 12313232430

VALVE, CHOKE

$1.99

$

Usually ships in 2-4 days

0

7

Echo 12313610630

BALL, CHOKE FRICTION

$0.99

$

In Stock, only 1 left!

0

8

Echo 12313510630

SPRING

$1.49

$

Usually ships in 2-4 days

0

9

STRAINER

Note: INCLUDES REBUILD KIT PART NO. 12310039830

$

$

Not available

10

Echo 12311316130

SPRING, THROTTLE RETURN

$1.49

$

Usually ships in 2-4 days

0

11

Echo 12311719830

SHAFT, THROTTLE

$4.99

$

Usually ships in 2-4 days

0

12

Echo 12311610530

VALVE, THROTTLE

$2.49

$

Usually ships in 2-4 days

0

13

Echo 12317815030

PLUG, FRICTION

$9.99

$

Usually ships in 2-4 days

0

14

Echo 12313119830

SHAFT, CHOKE

$6.49

$

Usually ships in 2-4 days

0

15

Echo 12315630830

STOP, THROTTLE

$4.49

$

Usually ships in 2-4 days

0

16

Echo 12313311130

SPRING, IDLE ADJUST
(Superseded to Discontinued)

$

$

Not available

17

Echo 12312003661

NEEDLE, MIXTURE

$4.99

$

In Stock, only 1 left!

0

18

Echo 12315139230

CAP, LIMITER

$1.99

$

In Stock, Qty 20+

0

19

RING, RETAINING

Note: INCLUDES REBUILD KIT PART NO. 12310039830

$

$

Not available

20

PLUG, WELCH

Note: INCLUDES REBUILD KIT PART NO. 12310039830

$

$

Not available

21

STRAINER

Note: INCLUDES REBUILD KIT PART NO. 12310039830

$

$

Not available

22

SPRING, METERING LEVER

Note: INCLUDES REBUILD KIT PART NO. 12310039830

$

$

Not available

23

LEVER, METERING

Note: INCLUDES REBUILD KIT PART NO. 12310039830

$

$

Not available

24

PIN, METERING LEVER

Note: INCLUDES REBUILD KIT PART NO. 12310039830

$

$

Not available

25

SCREW, METERING LEVER PIN

Note: INCLUDES REBUILD KIT PART NO. 12310039830

$

$

Not available

26

VALVE, INLET NEEDLE

Note: INCLUDES REBUILD KIT PART NO. 12310039830

$

$

Not available

27

PLUG, WELCH

Note: INCLUDES REBUILD KIT PART NO. 12310039830

$

$

Not available

28

GASKET, METERING

$

$

Not available

29

DIAPHRAGM, METERING

Note: INCLUDES REBUILD KIT PART NO. 12310039830 AND DIAPHRAGM/GASKET KIT PART NO. 12310117330

$

$

Not available

30

Echo 12314217330

COVER, METERING DIAPHRAGM

Note: INCLUDES REBUILD KIT PART NO. 12310039830 AND DIAPHRAGM/GASKET KIT PART NO. 12310117330

$4.99

$

Usually ships in 2-4 days

0

31

SCREW

Note: INCLUDES REBUILD KIT PART NO. 12310039830

$

$

Not available

Echo 12310039830

REPAIR KIT

$20.99

$

Usually ships in 2-4 days

0

Echo 12310117330

GASKET / DIAPHRAGM KIT

$

$

Not available
