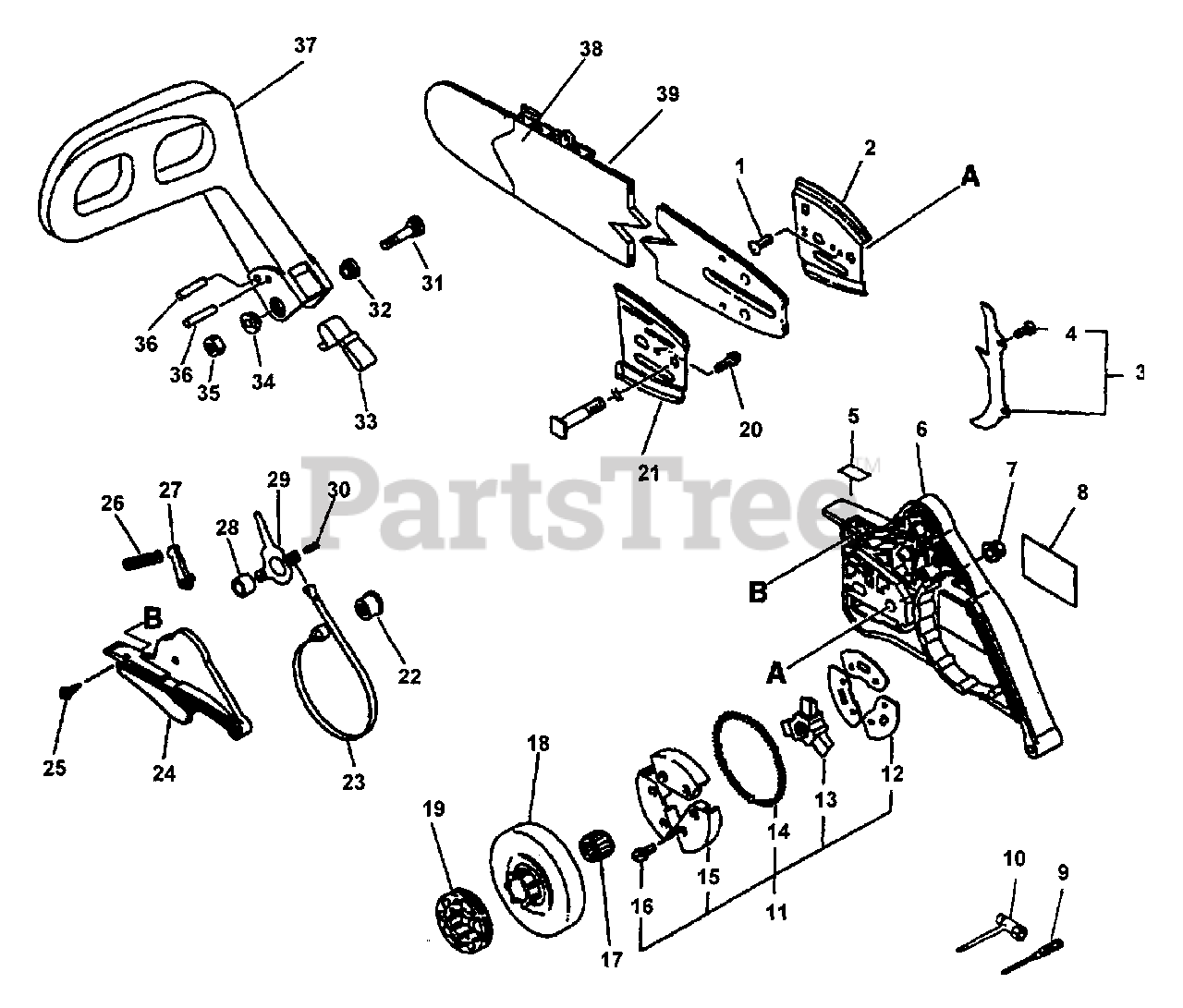

CS-5000 - Echo Chainsaw (Type 1E) Clutch, Cutting Attachment, Chain Brake Parts Diagram

Chainsaw (Type 1E)

Clutch, Cutting Attachment, Chain Brake Parts Diagram

  • Title

Echo 43320033932

CHAIN BRAKE ASSY
(Superseded to 43320033933)

Note: INCLUDES ITEMS 6, 22 - 37

$

$

Not available

1

Echo 900241-04008

SCREW 4×8

$0.99

$

In Stock, Qty 10

0

2

Echo 43301214533

PLATE, GUIDE
(Superseded to Discontinued)

$

$

Not available

3

Echo 88020030131

SPIKE KIT, BUMPER
(Superseded to Discontinued)

Note: Includes ITEM 4

$

$

Not available

4

Echo 88021130130

BOLT

$12.99

$

In Stock, only 1 left!

0

5

Echo 89015530130

LABEL, CAUTION
(Superseded to X524000680)

$4.49

$

Usually ships in 2-4 days

0

6

Echo 43300537630

GUARD, SPROCKET
(Superseded to Discontinued)

$

$

Not available

7

Echo 43301912330

NUT, FLANGE M8×1.25
(Superseded to V265000200)

$2.49

$

In Stock, Qty 20+

0

8

Echo 89011838130

LABEL, ECHO
(Superseded to Discontinued)

$

$

Not available

9

Echo 89581203930

SCREWDRIVER, PHILLIPS

$4.99

$

In Stock, only 1 left!

0

10

Echo 89541006960

T-WRENCH 13×19×180
(Superseded to 89541006961)

$4.49

$

In Stock, only 2 left!

0

11

Echo 17500037531

CLUTCH ASSY
(Superseded to P021007070)

Note: Includes ITEMS 12-16

$77.99

$

In Stock, only 2 left!

0

12

Echo 17501919830

PLATE, CLUTCH

$3.49

$

Usually ships in 2-4 days

0

13

Echo 17501619830

HUB, CLUTCH

$19.99

$

Usually ships in 2-4 days

0

14

Echo 17501819830

SPRING, CLUTCH

$3.99

$

Usually ships in 2-4 days

0

15

Echo 17500219830

SHOE SET, CLUTCH (3PCS)

$48.99

$

Usually ships in 2-4 days

0

16

Echo 90010504006

BOLT 4×6

$0.99

$

Usually ships in 2-4 days

0

17

Echo 17501219830

BEARING, NEEDLE

$14.99

$

In Stock, only 3 left!

0

18

Echo 17510519930

DRUM, CLUTCH
(Superseded to Discontinued)

$

$

Not available

19

Echo 17511412530

SPROCKET, 0.325 RIM

$22.99

$

In Stock, Qty 11

0

20

Echo 90024103006

SCREW 3×6

$0.99

$

In Stock, only 2 left!

0

21

Echo 43301319831

PLATE, GUIDE

$6.49

$

In Stock, only 1 left!

0

22

Echo 43314235430

ADJUSTER, BRAKE

$3.99

$

In Stock, only 2 left!

0

23

Echo 43312335430

BAND, BRAKE
(Superseded to C328000060)

$8.49

$

In Stock, only 2 left!

0

24

Echo 43331037630

COVER, BRAKE
(Superseded to Discontinued)

$

$

Not available

25

Echo 90025304010

SCREW 4×10

$0.99

$

In Stock, Qty 9

0

26

Echo 43312235430

SPRING, COMPRESSION

$3.99

$

In Stock, only 2 left!

0

27

Echo 43320935430

STOPPER, BRAKE

$5.99

$

Usually ships in 2-4 days

0

28

Echo 43311635430

SPACER 8×12×9

$6.49

$

In Stock, only 1 left!

0

29

Echo 43320835431

LEVER, BRAKE

$22.99

$

In Stock, only 2 left!

0

30

Echo 90033040088

PIN, SPRING 4×8.8

$1.49

$

In Stock, only 4 left!

0

31

Echo 90020905035

SCREW 5×35

$1.49

$

In Stock, only 3 left!

0

32

Echo 43316739730

COLLAR 5

$3.49

$

In Stock, Qty 10

0

33

Echo 43311437530

SPRING, RETURN
(Superseded to 43311437531)

$

$

Not available

34

Echo 43316739130

COLLAR 5.3×10×13×L5

$3.49

$

In Stock, Qty 12

0

35

Echo 90056000005

NUT, LOCK M5

$1.49

$

In Stock, Qty 14

0

36

Echo 90033035260

PIN 3.5×26

$0.99

$

In Stock, Qty 7

0

37

Echo 43310539730

LEVER, BRAKE
(Superseded to Discontinued)

$

$

Not available

38

Echo 33SL66CQ

SAWING CHAIN - 16" -- PRO GUARD
(Superseded to 20BPX66CQ)

Note: GAUGE: .050" / PITCH: .325"

$42.99

$

In Stock, Qty 7

0

38

Echo 33SL72CQ

SAWING CHAIN - 18" -- PRO GUARD
(Superseded to 20BPX72CQ)

Note: GAUGE: .050" / PITCH: .325"

$45.99

$

In Stock, Qty 11

0

38

Echo 33SL78CQ

SAWING CHAIN - 20" -- PRO GUARD
(Superseded to 20BPX78CQ)

Note: GAUGE: .050" / PITCH: .325"

$48.99

$

In Stock, Qty 18

0

39

Echo 16A0AD3366

GUIDE BAR - 16" -- DOUBLE GUARD
(Superseded to 16F0AD3366C)

Note: GAUGE: .050"

$69.99

$

In Stock, Qty 8

0

39

Echo 18A0AD3372

GUIDE BAR - 18" -- DOUBLE GUARD

Note: GAUGE: .050"

$

$

Not available

39

Echo 20A0AD3378

GUIDE BAR - 20" -- DOUBLE GUARD
(Superseded to 20F0AD3378C)

Note: GAUGE: .050"

$80.99

$

In Stock, Qty 8

0
