CS-5000 - Echo Chainsaw (Type 1E) Handles, Throttle Control Parts Diagram

Chainsaw (Type 1E)

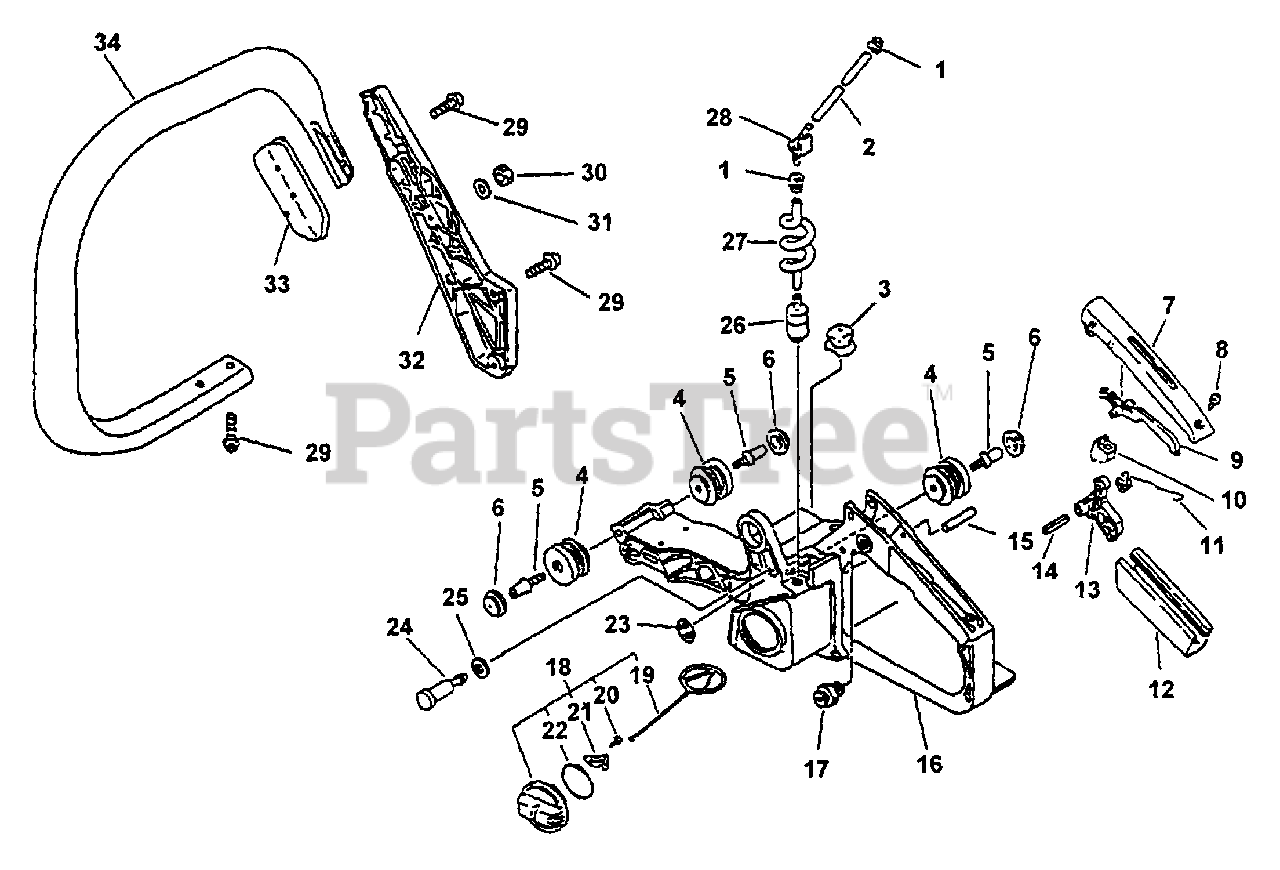

Handles, Throttle Control Parts Diagram

  • Title

1

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.49

$

In Stock, Qty 20+

0

2

Echo 13201219830

PIPE - 3X6X100 -- BLACK
(Superseded to 43721720760)

Note: RePower BULK OPTION: 90015

$5.49

$

In Stock, Qty 5

0

3

Echo 10025119830

CUSHION

$4.99

$

Usually ships in 2-4 days

0

4

Echo 10091019830

CUSHION
(Superseded to 10091019831)

$6.49

$

In Stock, Qty 7

0

5

Echo 10091533930

SCREW

$2.49

$

In Stock, Qty 17

0

6

Echo 10091819830

CAP, CUSHION

$1.99

$

In Stock, Qty 20+

0

7

Echo 35115530131

COVER, HANDLE

$7.49

$

In Stock, only 4 left!

0

8

Echo 90025304014

SCREW - 4X14

$0.99

$

In Stock, Qty 20+

0

9

Echo 17809037930

LEVER, TRIGGER LOCKOUT

$4.99

$

Usually ships in 2-4 days

0

10

Echo 17807332430

CUSHION

$2.99

$

In Stock, only 3 left!

0

11

Echo 17804319830

SPRING, TRIGGER

$2.49

$

In Stock, Qty 11

0

12

Echo 35111130130

GRIP, HANDLE

$3.49

$

Usually ships in 2-4 days

0

13

Echo 17801038130

TRIGGER, THROTTLE

$5.99

$

In Stock, Qty 5

0

14

Echo 90034250025

PIN - SPRING -- 5X25

$1.49

$

In Stock, Qty 10

0

15

Echo 90033030260

PIN - 3X26

$0.99

$

In Stock, Qty 20+

0

16

Echo 35110337630

HANDLE - REAR
(Superseded to 35110337631)

$

$

Not available

17

Echo 17830237630

LOCK, THROTTLE
(Superseded to Discontinued)

$

$

Not available

18

Echo 13100437631

CAP ASSY
(Superseded to 13100437632)

Note: INCLUDES ITEMS 19 - 22

$3.49

$

In Stock, Qty 6

0

19

Echo A365000050

CONNECTOR, CAP

$2.49

$

In Stock, Qty 20+

0

20

Echo 90024603008

SCREW - 3X8

$

$

Not available

21

Echo 13105019830

RETAINER
(Superseded to Discontinued)

$

$

Not available

22

Echo 90072000029

O-RING - 29

$3.49

$

In Stock, Qty 18

0

23

Echo 10025219830

CUSHION

$0.99

$

In Stock, only 4 left!

0

24

Echo 13130040630

VENT, FUEL TANK
(Superseded to 13130056430)

$7.49

$

In Stock, Qty 20+

0

25

Echo 13132933930

GROMMET
(Superseded to Discontinued)

$

$

Not available

26

Echo 13120530830

FILTER, FUEL
(Superseded to 13120519830)

$9.49

$

In Stock, Qty 20+

0

27

Echo 13201019830

PIPE, FUEL - SPIRAL
(Superseded to Discontinued)

$

$

Not available

28

Echo 13201119830

CONNECTOR, PIPE
(Superseded to 13201119831)

$4.49

$

In Stock, only 2 left!

0

29

Echo 90025305020

SCREW - 5X20 -- TAPPING

$1.49

$

In Stock, Qty 20+

0

30

Echo 90052900005

NUT - 5 -- SLOTTED

$0.99

$

Usually ships in 2-4 days

0

31

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

32

Echo 35161333930

BRACKET, HANDLE - OUTER

$20.99

$

In Stock, only 1 left!

0

33

Echo 35161433930

BRACKET, HANDLE

$5.49

$

Usually ships in 2-4 days

0

34

Echo 35160637630

HANDLE - FRONT
(Superseded to Discontinued)

$

$

Not available
