CS-501 P - Echo Chainsaw (SN: C36712001001 - C36712999999) Clutch Parts Diagram

The CS-501P is a lightweight, 12-inch chainsaw designed for quick, efficient cutting, with standard fuel and oil specs, and plenty of replacement accessories for optimal performance. Engine displacement: 50.2 cc (3.06 cu in). Starting system: standard. Ignition: digital. Oiling: automatic/adjustable (clutch-driven). Vibration reduction: standard. Bar lengths: 16, 18, 20 in. Oil capacity: 281 ml (9.5 fl oz). Dry weight: 10.6 lb (4.8 kg). Sprocket cover: plastic. Bar type: Pro-Lite®. Sprocket type: rim. Handle: aluminum. Fuel capacity: 16.6 ml. Carburetor: butterfly-valve diaphragm.

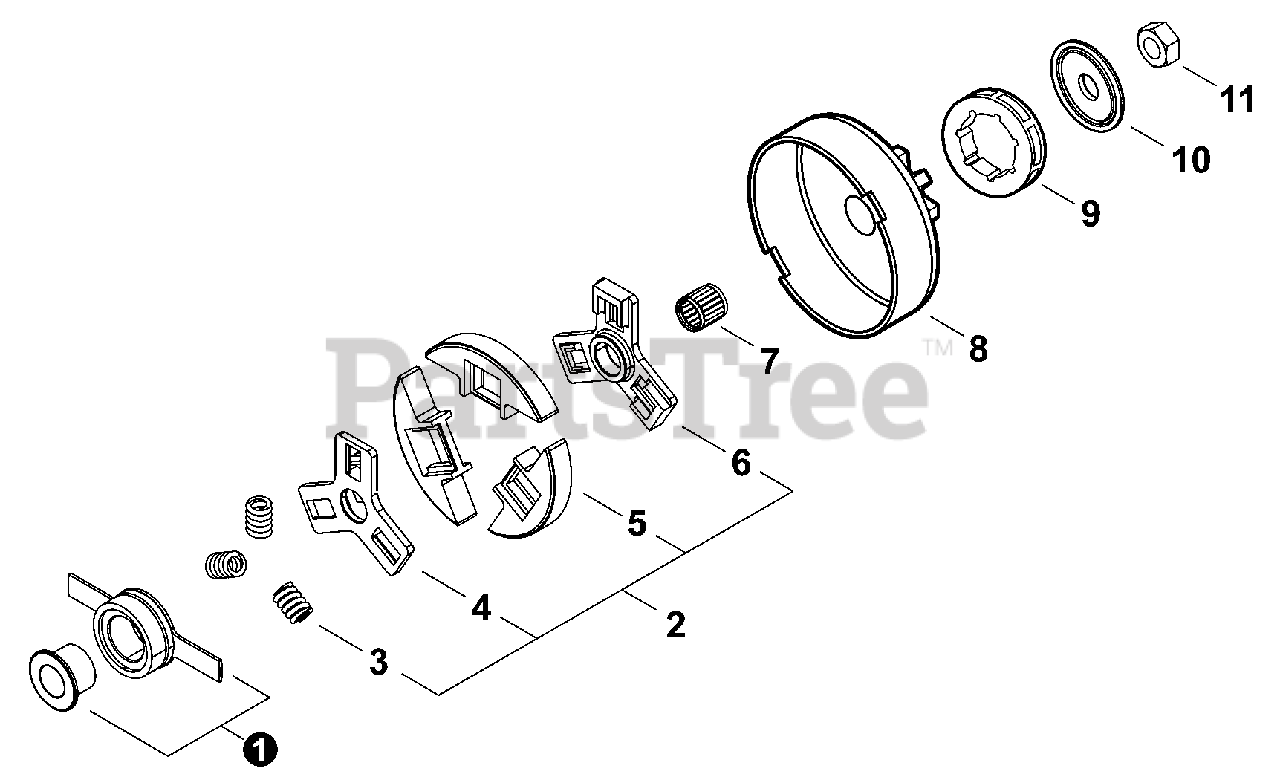

Clutch Parts Diagram

  • Title

1

Echo P021023110

GEAR ASSY, WORM

$30.99

$

In Stock, Qty 5

0

2

Echo A056000611

CLUTCH ASSY

Note: Includes ITEMS 3-6

$65.99

$

In Stock, only 4 left!

0

3

Echo V451000930

SPRING, CLUTCH

$1.99

$

In Stock, only 3 left!

0

4

Echo A552000231

BOSS, CLUTCH A

$13.99

$

In Stock, only 1 left!

0

5

Echo A555000210

Clutch Shoe

Note: Three of these clutch shoes are required

$9.49

$

In Stock, only 2 left!

0

6

Echo A552000241

BOSS, CLUTCH B

$18.99

$

In Stock, only 1 left!

0

7

Echo V555000150

BEARING, NEEDLE 10
(Superseded to V555000170)

$15.99

$

In Stock, Qty 20+

0

8

Echo A556001121

DRUM, CLUTCH

$57.99

$

In Stock, Qty 8

0

9

Echo 17511412530

SPROCKET, 0.325 RIM

$22.99

$

In Stock, Qty 20+

0

10

Echo V307000451

WASHER 10

$2.49

$

In Stock, Qty 20+

0

11

Echo V265000211

NUT M8

$4.49

$

In Stock, Qty 10

0
