CS-501 P - Echo Chainsaw (SN: C36712001001 - C36712999999) Handles, Throttle Control Parts Diagram

The CS-501P is a lightweight, 12-inch chainsaw designed for quick, efficient cutting, with standard fuel and oil specs, and plenty of replacement accessories for optimal performance. Engine displacement: 50.2 cc (3.06 cu in). Starting system: standard. Ignition: digital. Oiling: automatic/adjustable (clutch-driven). Vibration reduction: standard. Bar lengths: 16, 18, 20 in. Oil capacity: 281 ml (9.5 fl oz). Dry weight: 10.6 lb (4.8 kg). Sprocket cover: plastic. Bar type: Pro-Lite®. Sprocket type: rim. Handle: aluminum. Fuel capacity: 16.6 ml. Carburetor: butterfly-valve diaphragm.

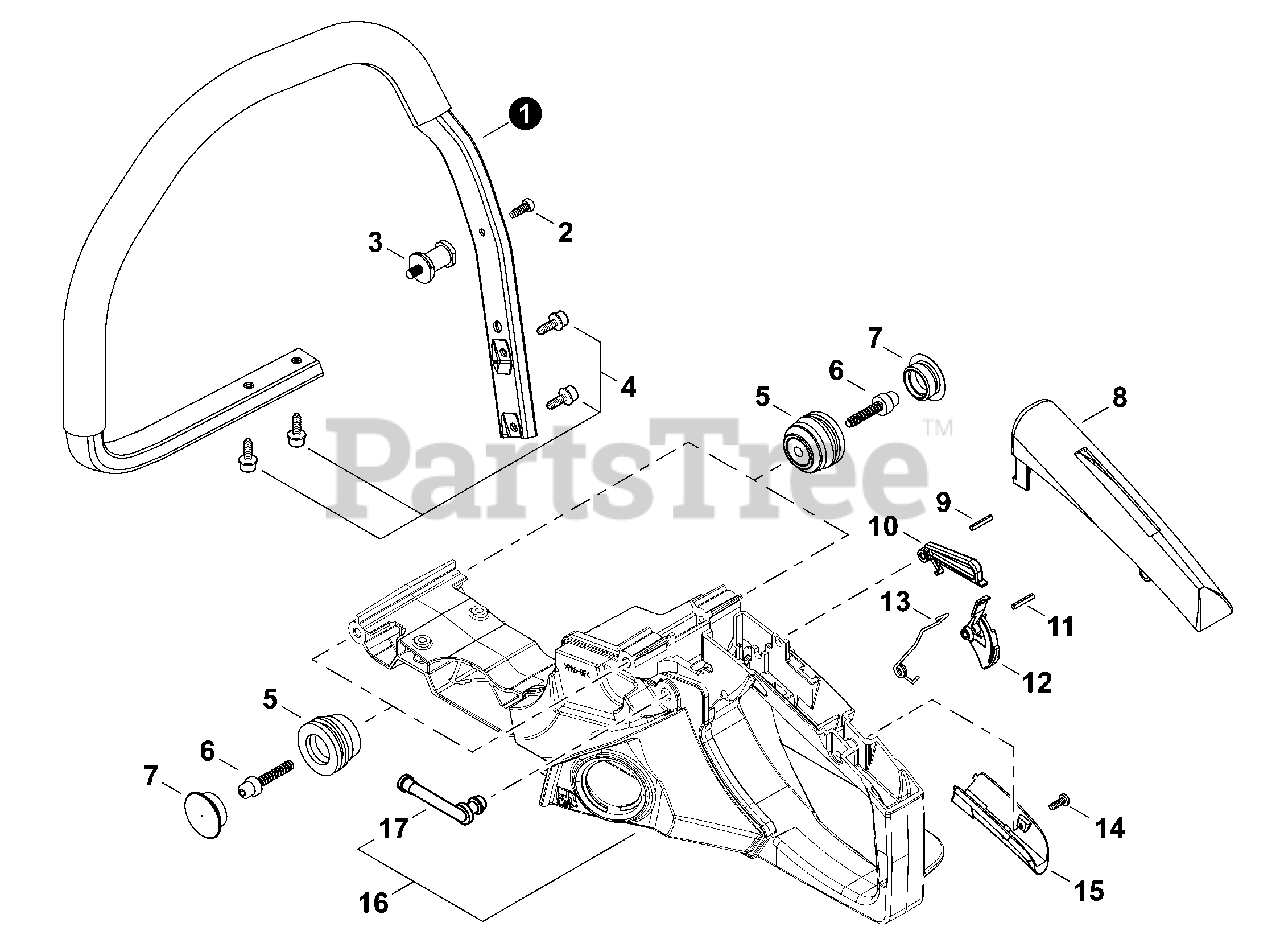

Handles, Throttle Control Parts Diagram

  • Title

1

Echo C040000850

HANDLE, FRONT

$76.99

$

Usually ships in 2-4 days

0

2

Echo V202000350

BOLT M4×14

$1.49

$

In Stock, Qty 10

0

3

Echo V401000330

CUSHION 5

$11.99

$

In Stock, only 4 left!

0

4

Echo V203001490

BOLT, TAPPING M5×16

$1.99

$

In Stock, Qty 6

0

5

Echo V401000610

CUSHION

$10.99

$

In Stock, Qty 20+

0

6

Echo V203001950

BOLT 5

$4.99

$

In Stock, Qty 6

0

7

Echo V421000070

CAP, CUSHION

$3.49

$

In Stock, Qty 20+

0

8

Echo C411000170

COVER, HANDLE

$13.99

$

In Stock, Qty 11

0

9

Echo 9304240220

PIN, SPRING Ø4×22 MM

$1.49

$

In Stock, Qty 20+

0

10

Echo C460000390

LOCKOUT, THROTTLE

$

$

Not available

11

Echo 9306040250

PIN, SPRING Ø4×25 MM

$1.49

$

In Stock, Qty 20+

0

12

Echo C450000642

TRIGGER, THROTTLE

$4.99

$

In Stock, Qty 9

0

13

Echo V452000850

SPRING, THROTTLE RETURN

$2.99

$

In Stock, Qty 20+

0

14

Echo 9144904022

SCREW, TAPPING M4×22

$1.49

$

In Stock, Qty 7

0

15

Echo C403000530

GRIP, LOWER

$17.99

$

In Stock, Qty 5

0

16

Echo C041000722

HANDLE ASSY, REAR
(Superseded to C041000723)

Note: Includes ITEM 17

$74.99

$

Usually ships in 2-4 days

0

17

Echo V470001530

PIPE, FUEL VENT
(Superseded to V470001531)

$2.99

$

In Stock, Qty 20+

0
