CS-510 - Echo Chainsaw (SN: 03001001 - 03999999) Auto-Oiler Parts Diagram

Chainsaw

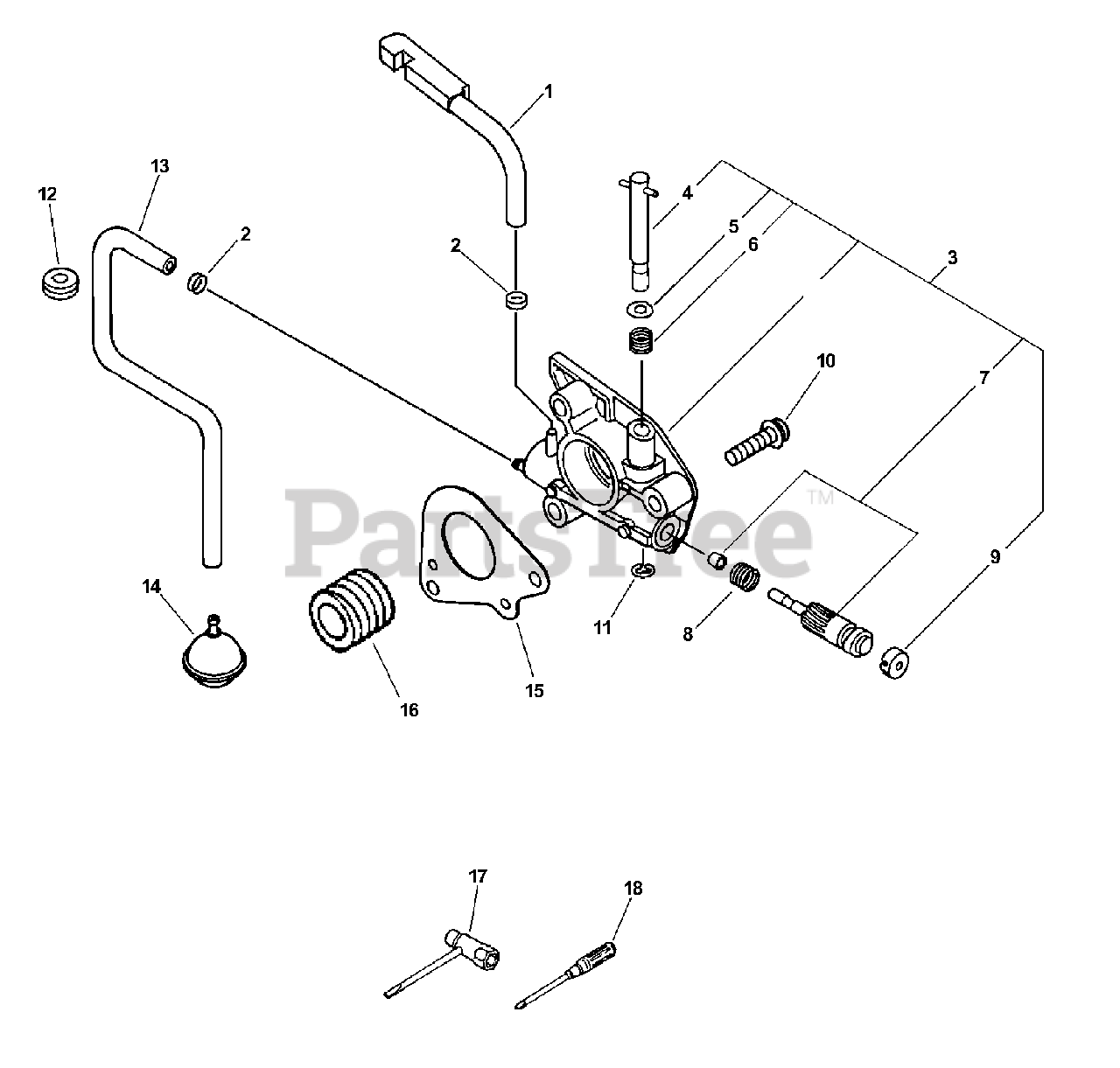

Auto-Oiler Parts Diagram

  • Title

1

Echo 43722938331

PIPE - OIL

$

$

Not available

2

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

3

Echo 43700238330

AUTO-OILER ASSY

Note: Includes ITEMS 4-9

$57.99

$

In Stock, Qty 5

0

4

Echo 43701638330

NEEDLE, ADJUST

$16.99

$

Usually ships in 2-4 days

0

5

Echo 43702937330

WASHER

$3.49

$

Usually ships in 2-4 days

0

6

Echo 43701537330

SPRING

$3.99

$

Usually ships in 2-4 days

0

7

Echo 43702437330

PLUNGER ASSY

$26.99

$

Usually ships in 2-4 days

0

8

Echo 43701938330

SPRING, PLUNGER

$3.99

$

Usually ships in 2-4 days

0

9

Echo 43706238330

CAP, OIL PUMP

$5.49

$

Usually ships in 2-4 days

0

10

Echo 90022304016

SCREW - 4X16

$0.99

$

In Stock, Qty 20+

0

11

Echo 12312715030

RING, RETAINING

$0.99

$

In Stock, Qty 8

0

12

Echo 13211512330

GROMMET

$1.49

$

In Stock, Qty 14

0

13

Echo 43721038330

PIPE - OIL
(Superseded to 43721038331)

$5.99

$

In Stock, Qty 8

0

14

Echo 43620514730

FILTER, OIL

$9.49

$

In Stock, Qty 9

0

15

Echo 17531038330

SEAL, DUST

$1.49

$

In Stock, Qty 5

0

16

Echo V652000000

GEAR - WORM
(Superseded to V652000080)

$16.99

$

Usually ships in 2-4 days

0

17

Echo 89541006960

T-WRENCH - 13X19mm
(Superseded to 89541006961)

$3.99

$

In Stock, only 3 left!

0

18

Echo 89581203930

SCREWDRIVER

$4.99

$

In Stock, only 2 left!

0
