CS-510 - Echo Chainsaw (SN: 03001001 - 03999999) Carburetor Parts Diagram
Model CS-510 Technical Specifications (English)- External dimensions: 400 mm x 252 mm x 278 mm - Mass (saw only, no guide bar/chain, empty tanks): 5.1 kg - Fuel tank: 600 ml (regular petrol, 89 + octane, 50:1 or 25:1 fuel:oil) - Chain oil tank: 280 ml (chain oil only) Guide bar options: 380 mm, 450 mm, 500 mm Chain: pitch 8.26 mm, gauge 1.47 mm, type (Echo/ Carlton K2L/ Oregon 21BP) Guide bar gauge: 1.47 mm Engine: - Air-cooled, 2-cycle, single-cylinder, 49.3 cc displacement - Power: 2.6 kW at 13,500 rpm - Max shaft brake: 2,800 rpm - Flywheel, diaphragm carburetor, CDI system (NGK BPM8Y) - Recoil starter, automatic centrifugal clutch Fuel consumption: 1.23 kg/h at max power; 479 g/(kWh) specific.Features: anti-vibration, spiked bumper, throttle lockout, chain brake, chain catcher, spark arrestor muffler, kick guard. Handle: aluminum.

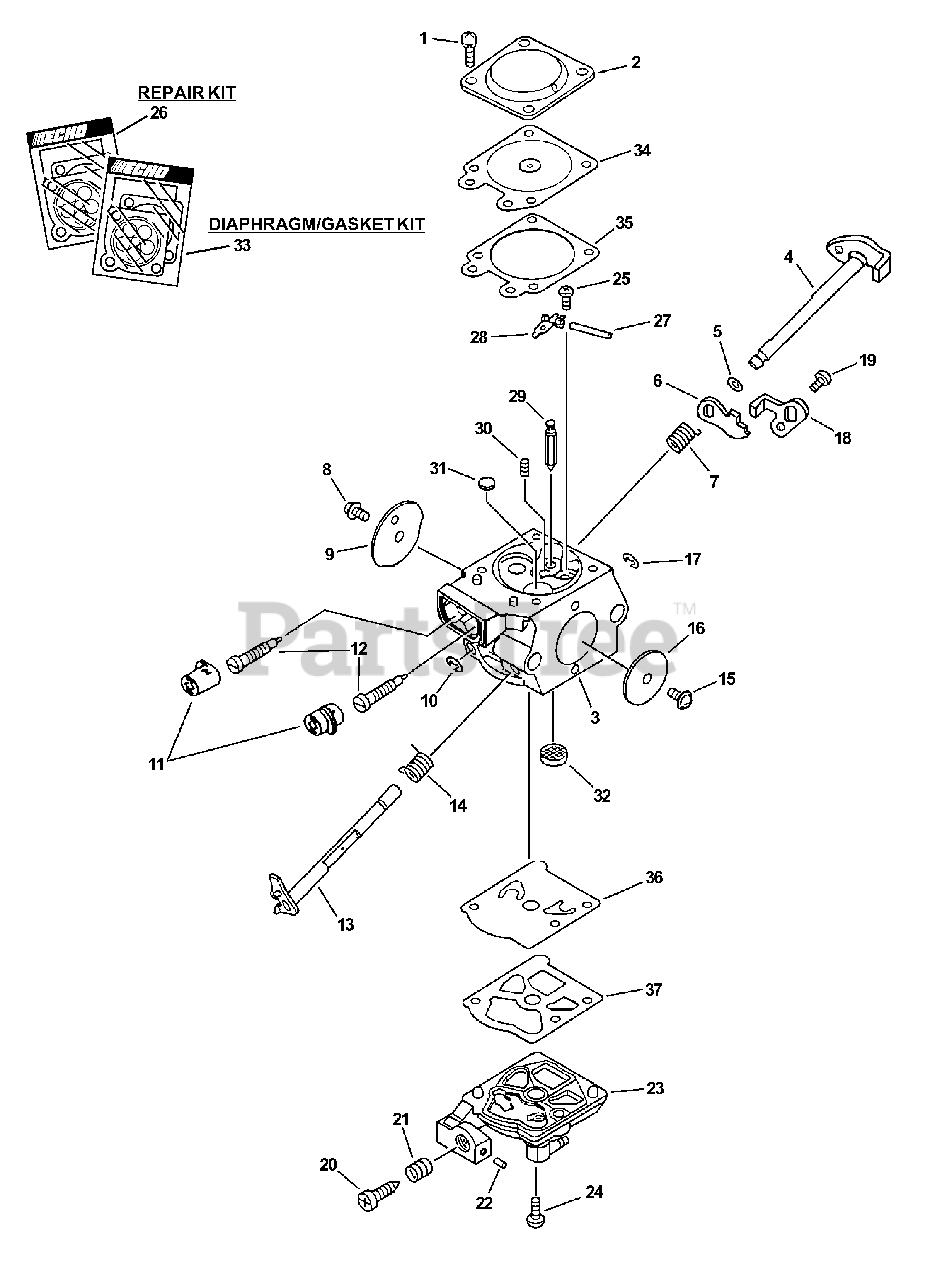

Carburetor Parts Diagram
$
$
Not available
Echo 12313002960
$1.99
$
Echo 12314203930
$4.99
$
Note: NOT AVAILABLE SEPARATELY
$
$
Not available
Echo P003000150
$11.99
$
Echo 12314926030
$0.99
$
Echo P003000160
$1.99
$
Echo P003000140
$0.99
$
Echo 12311403930
$1.49
$
Echo P003000230
$2.49
$
Echo 12312715030
$0.99
$
Echo P003000010
$0.99
$
Echo 12312003661
$4.99
$
Echo P003000480
$6.49
$
Echo 12311337530
$3.49
$
Echo 12311403930
$1.49
$
Echo 12311610530
$2.49
$
Echo 12312715030
$0.99
$
$
$
Not available
Echo 12311403930
$1.49
$
Echo 12313404260
$2.49
$
Echo 12313304260
$7.49
$
Echo 12317815030
$9.99
$
Echo 12312438330
$8.99
$
Echo 12311003930
$0.99
$
Echo 12313903930
$6.99
$
$33.99
$
$
$
Not available
$
$
Not available
$
$
Not available
$
$
Not available
$
$
Not available
$
$
Not available
$7.99
$
$
$
Not available
$
$
Not available
$
$
Not available
$
$
Not available
