CS-510 - Echo Chainsaw (SN: 03001001 - 03999999) Ignition, Starter Parts Diagram

Chainsaw

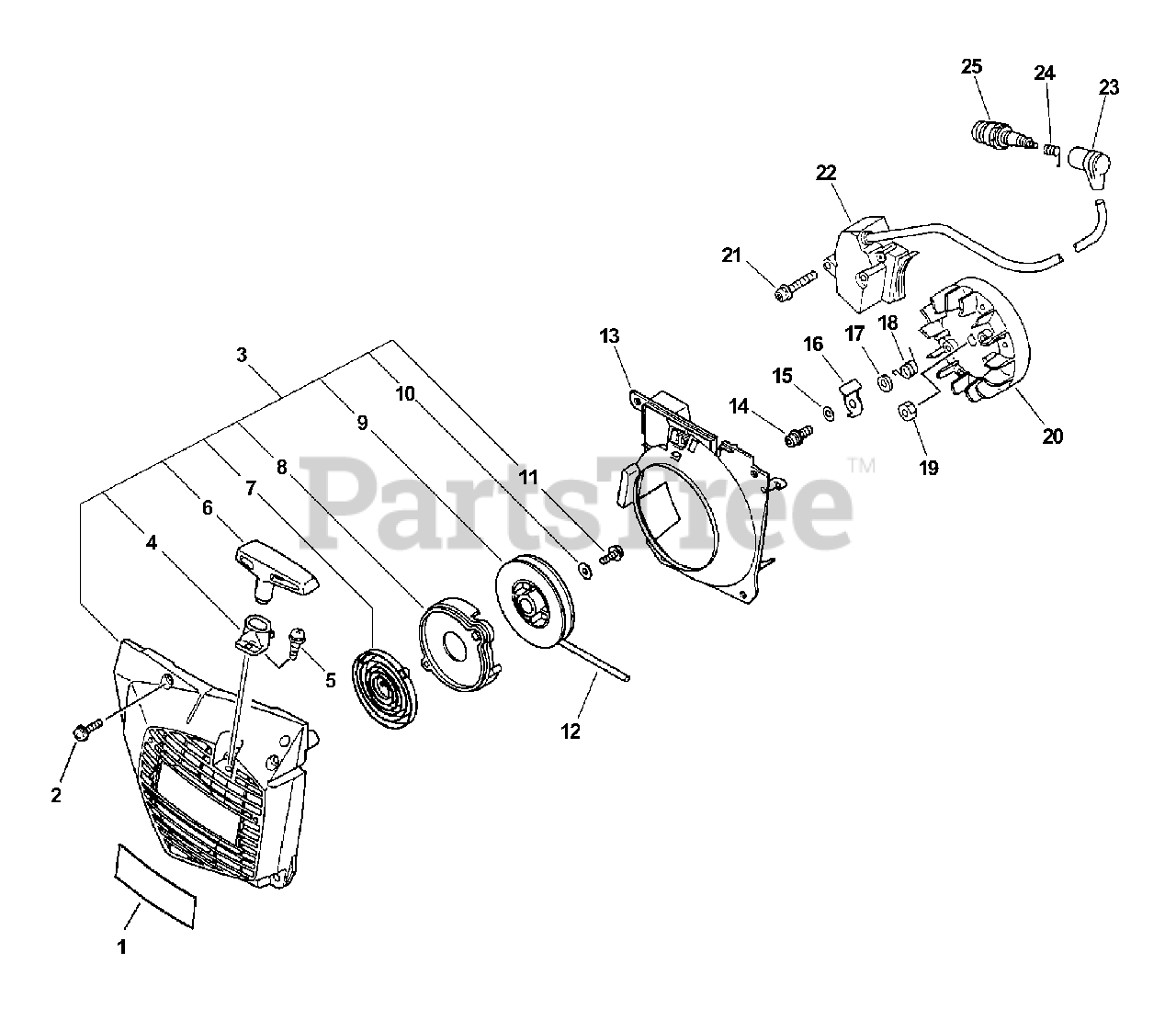

Ignition, Starter Parts Diagram

  • Title

1

Echo X502000010

LABEL - ECHO

$2.99

$

Usually ships in 2-4 days

0

2

Echo 90023805018

SCREW - 5X18

$0.99

$

In Stock, Qty 14

0

3

Echo 17720039334

STARTER ASSY
(Superseded to 17720039335)

Note: Includes ITEMS 4-12

$108.99

$

In Stock, only 2 left!

0

4

Echo 17722737930

GUIDE, ROPE

$3.99

$

Usually ships in 2-4 days

0

5

Echo 90029603014

SCREW - 3X14

$0.99

$

Usually ships in 2-4 days

0

6

Echo 17722835431

GRIP, STARTER
(Superseded to 17722835432)

$9.49

$

In Stock, Qty 20+

0

7

Echo 17722035430

SPRING, REWIND

$14.99

$

In Stock, Qty 8

0

8

Echo 17722138330

PLATE, STARTER

$3.99

$

In Stock, only 4 left!

0

9

Echo 17721538330

REEL, ROPE

$10.99

$

In Stock, only 4 left!

0

10

Echo 17721402830

WASHER - 5

$0.99

$

In Stock, only 4 left!

0

11

Echo 90023805012

SCREW - 5X12

$0.99

$

In Stock, Qty 8

0

12

Echo 17722605310

ROPE, STARTER - 3.5X960

Note: RePower BULK OPTION: 99944445000

$5.99

$

In Stock, Qty 6

0

13

Echo A172000060

COVER, FAN
(Superseded to A172000061)

$12.99

$

Usually ships in 2-4 days

0

14

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

15

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

16

Echo 17721819830

PAWL, STARTER

$4.99

$

In Stock, Qty 20+

0

17

Echo 17724704630

SPACER

$2.49

$

In Stock, Qty 5

0

18

Echo 17723435430

SPRING, RETURN

$2.49

$

In Stock, only 2 left!

0

19

Echo 90051500008

NUT - 8 -- FLANGE

$1.99

$

In Stock, only 4 left!

0

20

Echo A409000030

FLYWHEEL

$98.99

$

Usually ships in 2-4 days

0

21

Echo 90016204030

SCREW - 4X30

$1.49

$

In Stock, only 2 left!

0

22

Echo A411000030

COIL, IGNITION
(Superseded to A411000031)

$94.99

$

In Stock, only 1 left!

0

23

Echo 15901201620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 11

0

24

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

25

Echo 15901010630

SPARK PLUG -- BPM-7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

25

Echo 15901731730

SPARK PLUG -- RCJ-6Y

Note: CANADA MODELS

$4.49

$

In Stock, Qty 20+

0

Echo 99944445000

RePower BULK ROPE - 200 FEET

$36.99

$

In Stock, only 2 left!

0
