CS-510 - Echo Chainsaw (SN: C19120001001 - C19120999999) Cylinder, Crankcase, Piston Parts Diagram

Chainsaw

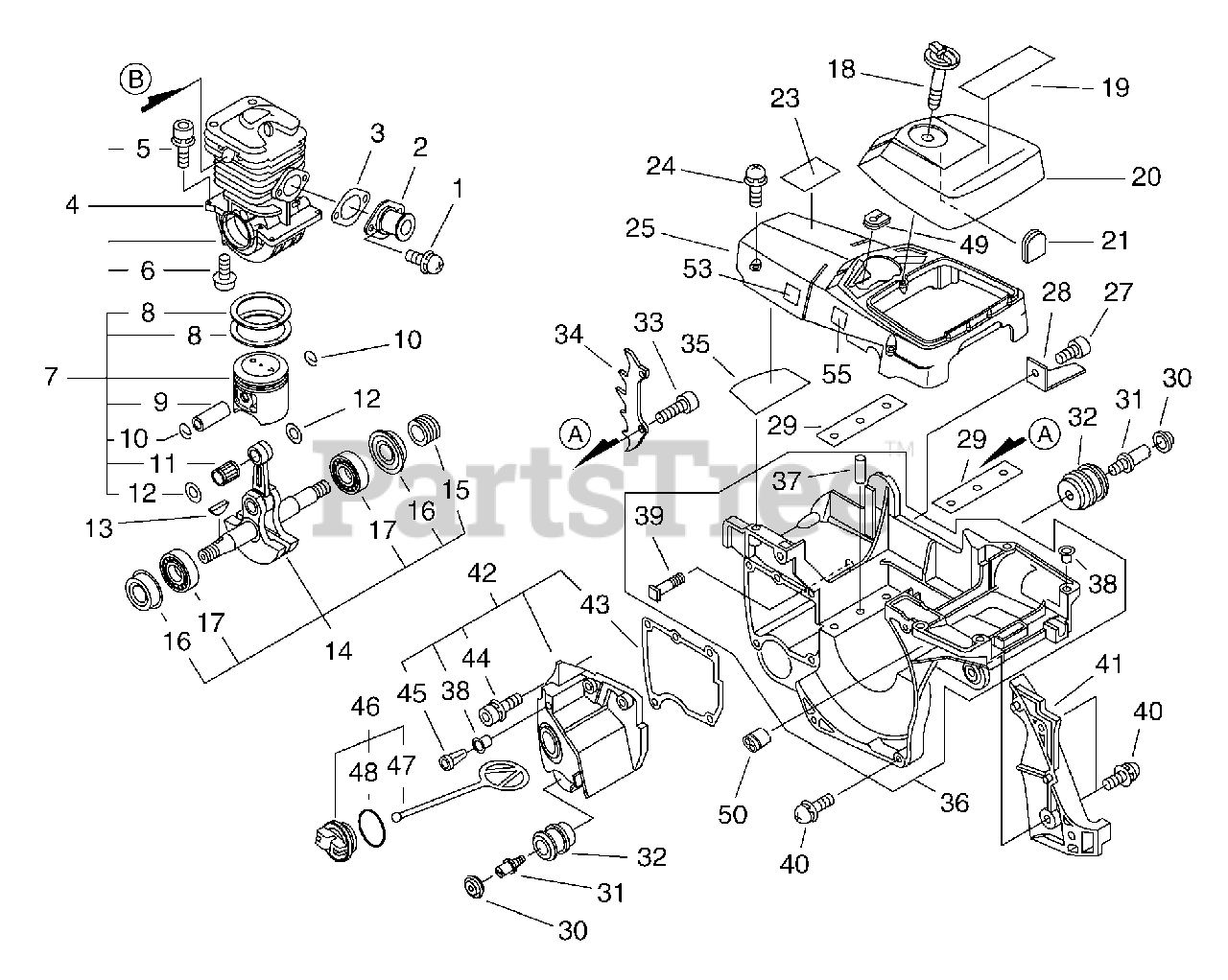

Cylinder, Crankcase, Piston Parts Diagram

  • Title

1

Echo 900238-05012

SCREW 5×12

$0.99

$

In Stock, Qty 7

0

2

Echo 13051039932

ADAPTOR, INTAKE

$28.99

$

Usually ships in 2-4 days

0

3

Echo 13001639930

GASKET, INTAKE

$3.49

$

In Stock, Qty 14

0

4

Echo P021004092

CRANKCASE ASSY

$277.99

$

Usually ships in 2-4 days

0

5

Echo V203000170

BOLT 5

$0.99

$

Usually ships in 2-4 days

0

6

Echo 90010605020

BOLT 5×20

$1.49

$

In Stock, Qty 5

0

7

Echo P021001064

PISTON KIT

$87.99

$

Usually ships in 2-4 days

0

8

Echo 10001139731

RING, PISTON

$11.99

$

In Stock, Qty 10

0

9

Echo V609000000

PIN, PISTON

$6.49

$

Usually ships in 2-4 days

0

10

Echo 10001532330

RING, SNAP

$0.99

$

Usually ships in 2-4 days

0

11

Echo V556000000

BEARING, NEEDLE 11

$16.99

$

In Stock, only 1 left!

0

12

Echo V308000010

SPACER

$14.99

$

Usually ships in 2-4 days

0

13

Echo 10014230830

KEY, WOODRUFF

$1.99

$

In Stock, only 4 left!

0

14

Echo P021001071

CRANKSHAFT ASSY
(Superseded to P021001072)

$294.99

$

Usually ships in 2-4 days

0

15

Echo V652000000

GEAR, WORM
(Superseded to V652000080)

$17.99

$

Usually ships in 2-4 days

0

16

Echo V508000000

SEAL, OIL

$6.99

$

In Stock, only 2 left!

0

17

Echo 90081036203

BEARING, BALL 6203 C3

$15.99

$

Usually ships in 2-4 days

0

18

Echo A235000020

THUMBSCREW

$7.49

$

In Stock, Qty 20+

0

19

Echo X503008310

LABEL - MODEL CS-510(LA)
(Superseded to Discontinued)

$

$

Not available

20

Echo A232000023

COVER, AIR FILTER
(Superseded to A232000024)

$12.99

$

Usually ships in 2-4 days

0

21

Echo 13033832430

GROMMET

$1.99

$

In Stock, only 3 left!

0

23

Echo 89034539230

LABEL, CAUTION
(Superseded to 89034539231)

$3.49

$

Usually ships in 2-4 days

0

24

Echo 16389038330

BOLT 5

$1.99

$

In Stock, only 4 left!

0

25

Echo A160000950

COVER, ENGINE
(Superseded to A160000102)

$40.99

$

Usually ships in 2-4 days

0

27

Echo 90016205014

BOLT 5×14

$1.49

$

In Stock, Qty 7

0

28

Echo C310000000

CHAIN CATCHER

$2.49

$

In Stock, Qty 20+

0

29

Echo V150001740

PLATE, EYE

$5.49

$

Usually ships in 2-4 days

0

30

Echo 10091819830

CAP, CUSHION

$2.49

$

In Stock, only 2 left!

0

31

Echo 10091533930

SCREW 5

$2.99

$

In Stock, only 2 left!

0

32

Echo 10092138330

CUSHION 5

$24.99

$

Usually ships in 2-4 days

0

33

Echo 90010505012

BOLT 5×12

$1.49

$

In Stock, only 3 left!

0

34

Echo C304000030

SPIKE, BUMPER

$9.99

$

Usually ships in 2-4 days

0

35

Echo 10152035430

SHIELD, HEAT

$3.99

$

Usually ships in 2-4 days

0

36

Echo P021012470

COVER ASSY, ENGINE
(Superseded to P021012471)

$126.99

$

Usually ships in 2-4 days

0

37

Echo 100215-03930

PIN, LOCATING 4×8
(Superseded to 90033040080)

$1.49

$

In Stock, Qty 12

0

38

Echo 43601838330

COLLAR 5.5×6.65×5

$0.99

$

Usually ships in 2-4 days

0

39

Echo 43301119830

STUD, GUIDE BAR 8
(Superseded to 43301119831)

$3.49

$

In Stock, Qty 15

0

40

Echo 90023805016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

41

Echo C300000321

COVER

$3.49

$

Usually ships in 2-4 days

0

42

Echo P021012550

TANK ASSY, OIL

$62.99

$

Usually ships in 2-4 days

0

38

Echo 43601838330

COLLAR 5.5×6.65×5

$0.99

$

Usually ships in 2-4 days

0

43

Echo 43601938330

GASKET, OIL TANK

$2.49

$

In Stock, only 4 left!

0

44

Echo 90016204016

BOLT 4×16
(Superseded to 90016304016)

$1.99

$

In Stock, Qty 18

0

45

Echo 436114-13930

VENT ASSY
(Superseded to 43611413930)

$7.49

$

In Stock, Qty 6

0

46

Echo P021007630

CAP ASSY

$12.99

$

In Stock, only 4 left!

0

47

Echo A365-000050

CONNECTOR, CAP L= 60 MM
(Superseded to A365000050)

$2.49

$

In Stock, Qty 5

0

48

Echo 90072100025

O-RING 25

$2.99

$

In Stock, Qty 9

0

49

Echo V135000010

GROMMET

$1.99

$

In Stock, Qty 5

0

50

Echo 12901033330

GROMMET

$2.49

$

Usually ships in 2-4 days

0
