CS-510 - Echo Chainsaw (SN: C19120001001 - C19120999999) Cylinder, Crankcase, Piston Parts Diagram

Chainsaw

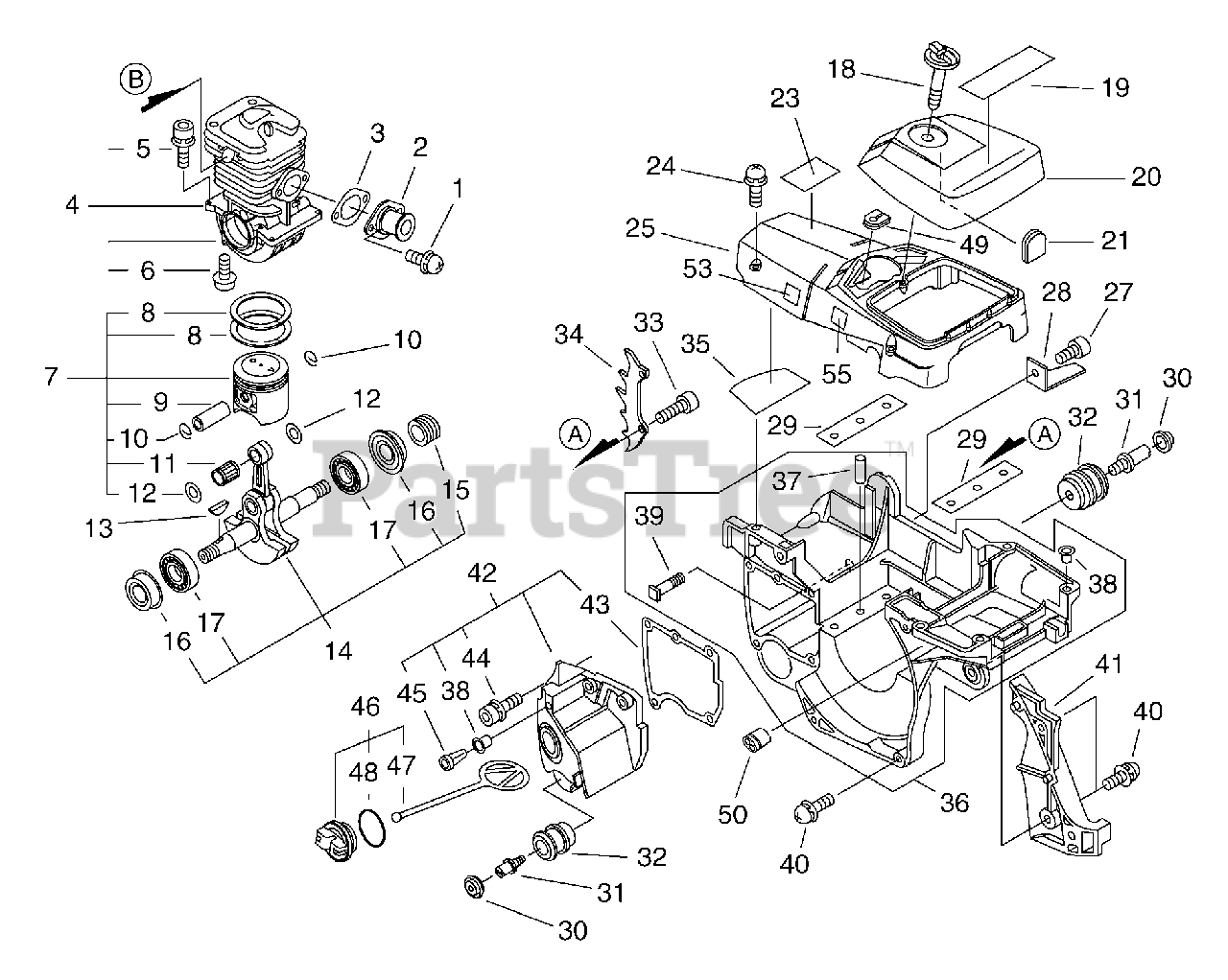

Cylinder, Crankcase, Piston Parts Diagram

  • Title

1

Echo 90023805012

SCREW - 5X12

$0.99

$

In Stock, Qty 9

0

2

Echo 13051039932

ADAPTOR, INTAKE

$23.99

$

Usually ships in 2-4 days

0

3

Echo 13001639930

GASKET, INTAKE

$2.99

$

In Stock, Qty 18

0

4

Echo P021004092

CRANKCASE SET

$231.99

$

Usually ships in 2-4 days

0

5

Echo V203000170

SCREW - 5X22

$0.99

$

Usually ships in 2-4 days

0

6

Echo 90010605020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

7

Echo P021001064

PISTON KIT

$81.99

$

Usually ships in 2-4 days

0

8

Echo 10001139731

RING, PISTON

$9.99

$

In Stock, Qty 12

0

9

Echo V609000000

PIN, PISTON

$5.49

$

Usually ships in 2-4 days

0

10

Echo 10001532330

RING, RETAINING

$0.99

$

In Stock, only 2 left!

0

11

Echo V556000000

BEARING, NEEDLE

$13.99

$

Usually ships in 2-4 days

0

12

Echo V308000010

WASHER - 11

$12.99

$

Usually ships in 2-4 days

0

13

Echo 10014230830

KEY

$1.49

$

In Stock, Qty 18

0

14

Echo P021001071

CRANKSHAFT ASSY
(Superseded to P021001072)

$245.99

$

Usually ships in 2-4 days

0

15

Echo V652000000

GEAR - WORM
(Superseded to V652000080)

$14.99

$

Usually ships in 2-4 days

0

16

Echo V508000000

SEAL, OIL

$5.99

$

Usually ships in 2-4 days

0

17

Echo 90081036203

BEARING, BALL - 6202

$12.99

$

Usually ships in 2-4 days

0

18

Echo A235000020

THUMBSCREW

$5.99

$

In Stock, Qty 20+

0

19

Echo X503008310

LABEL - MODEL CS-510
(Superseded to Discontinued)

$

$

Not available

20

Echo A232000023

COVER, AIR FILTER
(Superseded to A232000024)

$10.99

$

Usually ships in 2-4 days

0

21

Echo 13033832430

PLUG

$1.49

$

In Stock, Qty 19

0

23

Echo 89034539230

LABEL - CAUTION
(Superseded to 89034539231)

$2.99

$

Usually ships in 2-4 days

0

24

Echo 16389038330

SCREW - 5

$1.99

$

In Stock, Qty 5

0

25

Echo A160000950

COVER, ENGINE
(Superseded to A160000102)

$34.99

$

Usually ships in 2-4 days

0

27

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

28

Echo C310000000

CATCHER, CHAIN

$1.99

$

In Stock, Qty 6

0

29

Echo V150001740

PLATE

$4.49

$

Usually ships in 2-4 days

0

30

Echo 10091819830

CAP, CUSHION

$1.99

$

In Stock, Qty 20+

0

31

Echo 10091533930

SCREW

$2.49

$

In Stock, Qty 17

0

32

Echo 10092138330

CUSHION

$20.99

$

Usually ships in 2-4 days

0

33

Echo 90010505012

SCREW - 5X12

$1.49

$

In Stock, Qty 20+

0

34

Echo C304000030

SPIKE

$7.99

$

Usually ships in 2-4 days

0

35

Echo 10152035430

DEFLECTOR, HEAT

$3.49

$

Usually ships in 2-4 days

0

36

Echo P021012470

ENGINE COVER ASSY
(Superseded to P021012471)

$105.99

$

Usually ships in 2-4 days

0

37

Echo 10021503930

PIN - LOCATING
(Superseded to 90033040080)

$0.99

$

In Stock, Qty 20+

0

38

Echo 43601838330

COLLAR

$0.99

$

Usually ships in 2-4 days

0

39

Echo 43301119830

STUD, GUIDE BAR
(Superseded to 43301119831)

$2.99

$

In Stock, Qty 18

0

40

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

41

Echo C300000321

GUARD, SPROCKET

$2.99

$

In Stock, only 1 left!

0

42

Echo P021012550

OIL TANK ASSY

$52.99

$

Usually ships in 2-4 days

0

38

Echo 43601838330

COLLAR

$0.99

$

Usually ships in 2-4 days

0

43

Echo 43601938330

GASKET, OIL TANK

$1.99

$

In Stock, Qty 6

0

44

Echo 90016204016

SCREW - 4X16
(Superseded to 90016304016)

$1.49

$

In Stock, Qty 20+

0

45

Echo 43611413930

VENT, TANK

$6.49

$

In Stock, Qty 5

0

46

Echo P021007630

CAP ASSY - BLACK

$10.99

$

In Stock, Qty 20+

0

47

Echo A365000050

CONNECTOR, CAP

$2.49

$

In Stock, Qty 20+

0

48

Echo 90072100025

O-RING - 25

$2.49

$

In Stock, Qty 20+

0

49

Echo V135000010

GROMMET

$1.99

$

Usually ships in 2-4 days

0

50

Echo 12901033330

GROMMET

$1.99

$

Usually ships in 2-4 days
