CS-510 - Echo Chainsaw (SN: C19120001001 - C19120999999) Handle Parts Diagram

Chainsaw

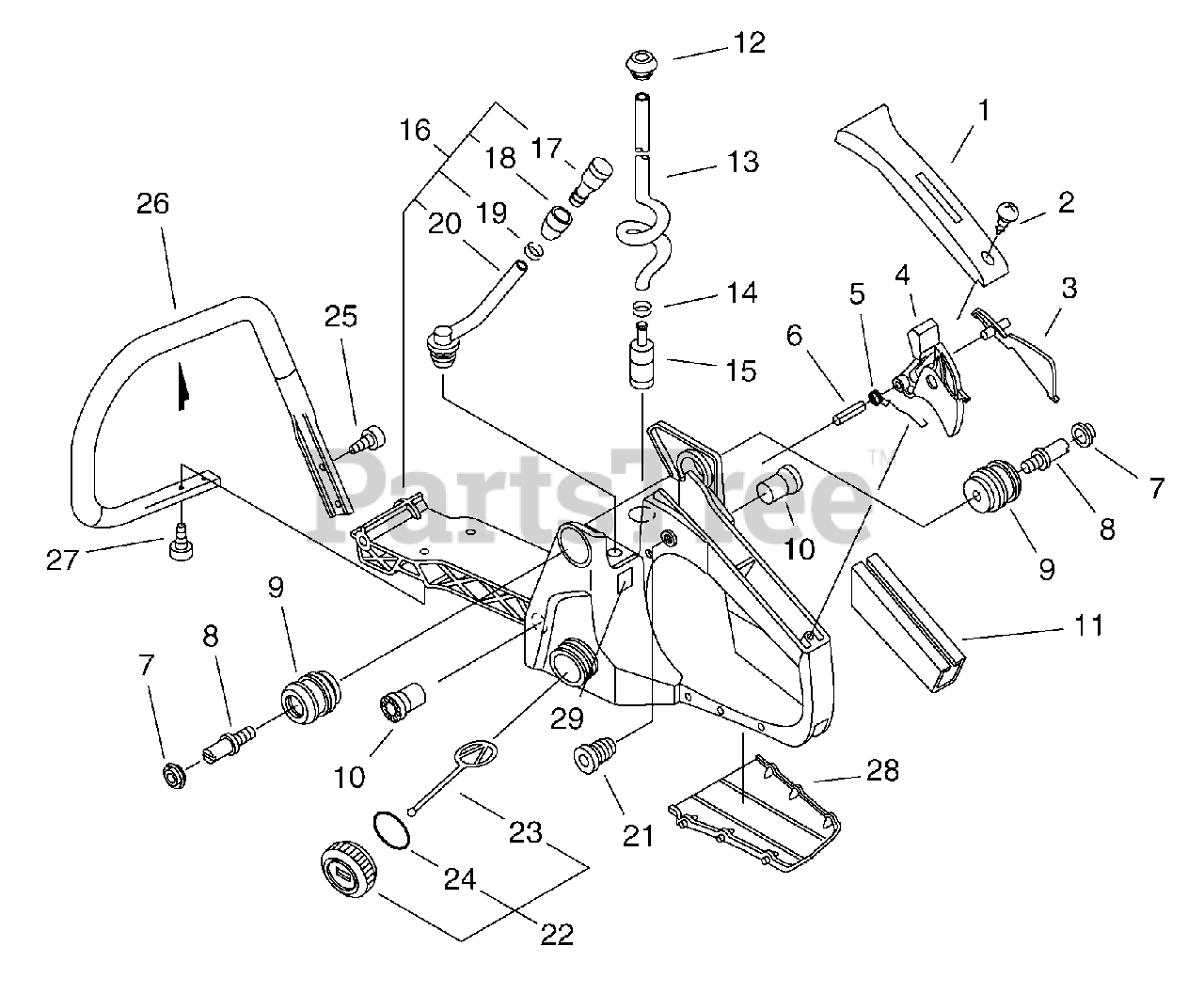

Handle Parts Diagram

  • Title

1

Echo 35115535430

COVER, HANDLE
(Superseded to 35115535431)

$13.99

$

In Stock, only 2 left!

0

2

Echo 90025304014

SCREW 4×14

$0.99

$

In Stock, only 2 left!

0

3

Echo C460000072

LOCKOUT, THROTTLE

$4.49

$

In Stock, Qty 12

0

4

Echo C450000212

TRIGGER, THROTTLE
(Superseded to C450000213)

$6.49

$

In Stock, only 4 left!

0

5

Echo V452000260

SPRING, TORSION

$1.99

$

In Stock, Qty 20+

0

6

Echo 90034540030

PIN, SPRING 4×30

$1.99

$

In Stock, Qty 10

0

7

Echo 10091819830

CAP, CUSHION

$2.49

$

In Stock, only 2 left!

0

8

Echo 10091532530

SCREW 5

$3.99

$

In Stock, only 2 left!

0

9

Echo 10092138330

CUSHION 5

$24.99

$

Usually ships in 2-4 days

0

10

Echo 10091038330

CUSHION 5

$13.99

$

Usually ships in 2-4 days

0

11

Echo 35111119830

GRIP, HANDLE
(Superseded to 35111119831)

$7.49

$

In Stock, only 2 left!

0

12

Echo 13211504920

GROMMET

$1.99

$

In Stock, Qty 20+

0

13

Echo 13201038331

PIPE, FUEL 3×6×165
(Superseded to 13201038332)

$9.99

$

In Stock, only 2 left!

0

14

Echo 13201326630

CLIP 6.5 MM
(Superseded to V490001230)

$0.99

$

In Stock, Qty 20+

0

15

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

$9.99

$

In Stock, Qty 20+

0

16

Echo P021012561

REAR HANDLE ASSY
(Superseded to P021012562)

$81.99

$

Usually ships in 2-4 days

0

17

Echo 131300-56430

VENT ASSY
(Superseded to 13130056431)

$8.99

$

In Stock, Qty 7

0

18

Echo 13132840630

HOLDER, VENT

$7.49

$

In Stock, Qty 13

0

19

Echo 13201326630

CLIP 6.5 MM
(Superseded to V490001230)

$0.99

$

In Stock, Qty 20+

0

20

Echo 13201239331

GROMMET, W/VENT PIPE 3×6×105
(Superseded to 13201239332)

$15.99

$

In Stock, only 2 left!

0

21

Echo V162000040

PLUG

$1.99

$

In Stock, only 2 left!

0

22

Echo P021010600

CAP ASSY, FUEL
(Superseded to P021010601)

$12.99

$

In Stock, only 4 left!

0

23

Echo A365-000050

CONNECTOR, CAP L= 60 MM
(Superseded to A365000050)

$2.49

$

In Stock, Qty 5

0

24

Echo 90072000022

O-RING 22

$2.49

$

In Stock, only 2 left!

0

25

Echo 9114505020

SCREW TAPPING 5×20

$1.49

$

In Stock, Qty 20+

0

26

Echo C400000010

HANDLE, FRONT
(Superseded to C400000011)

$80.99

$

Usually ships in 2-4 days

0

27

Echo 9114505016

SCREW TAPPING 5×16

$1.49

$

In Stock, Qty 5

0

28

Echo C418000040

SHIELD, SNOW

$7.49

$

Usually ships in 2-4 days

0

29

Echo 890157-39130

LABEL, STOP

$

$

Not available
