CS-510 - Echo Chainsaw (SN: C19120001001 - C19120999999) Starter, Magneto Parts Diagram

Model CS-510 Technical Specifications (English)- External dimensions: 400 mm x 252 mm x 278 mm - Mass (saw only, no guide bar/chain, empty tanks): 5.1 kg - Fuel tank: 600 ml (regular petrol, 89 + octane, 50:1 or 25:1 fuel:oil) - Chain oil tank: 280 ml (chain oil only) Guide bar options: 380 mm, 450 mm, 500 mm Chain: pitch 8.26 mm, gauge 1.47 mm, type (Echo/ Carlton K2L/ Oregon 21BP) Guide bar gauge: 1.47 mm Engine: - Air-cooled, 2-cycle, single-cylinder, 49.3 cc displacement - Power: 2.6 kW at 13,500 rpm - Max shaft brake: 2,800 rpm - Flywheel, diaphragm carburetor, CDI system (NGK BPM8Y) - Recoil starter, automatic centrifugal clutch Fuel consumption: 1.23 kg/h at max power; 479 g/(kWh) specific.Features: anti-vibration, spiked bumper, throttle lockout, chain brake, chain catcher, spark arrestor muffler, kick guard. Handle: aluminum.

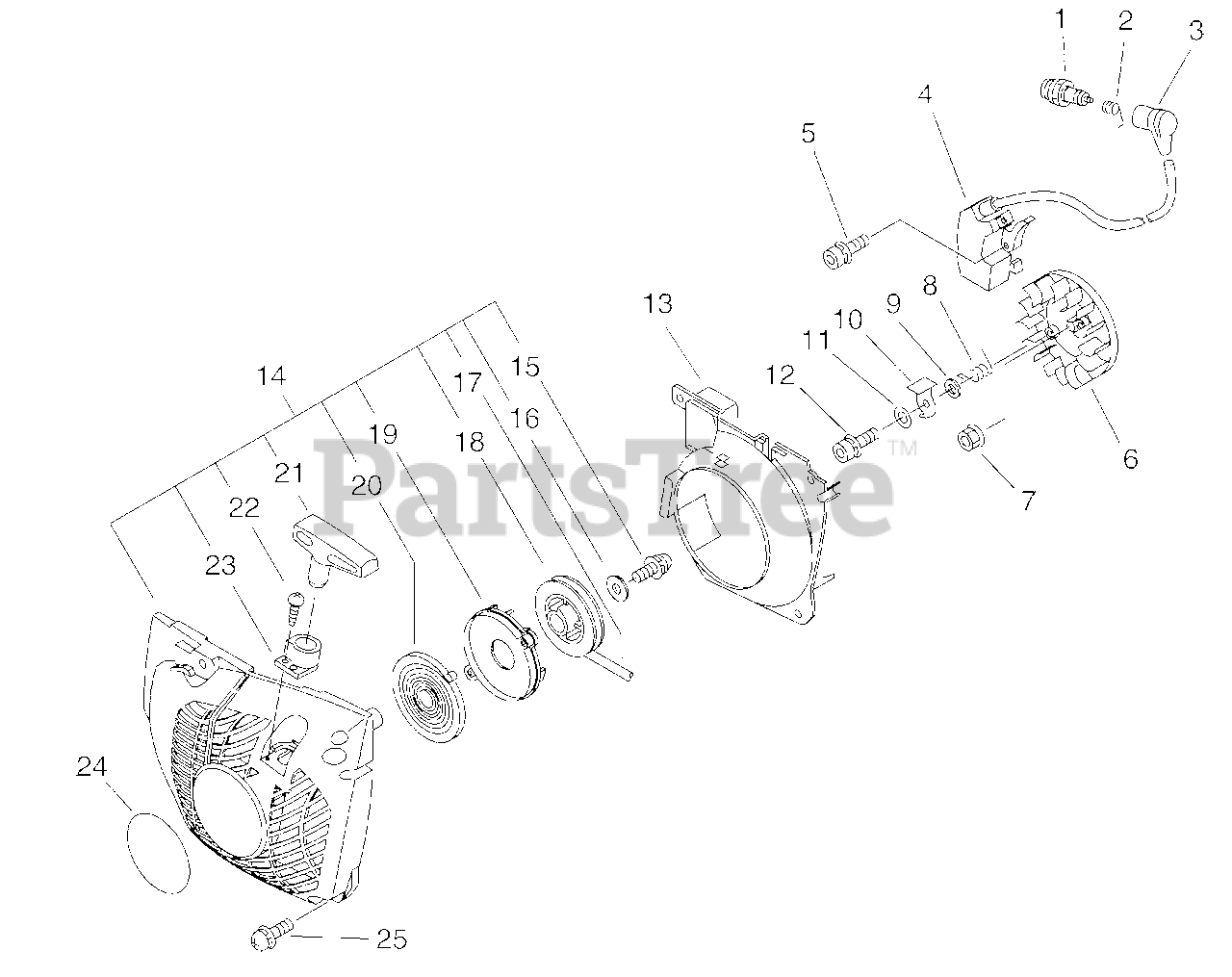

Starter, Magneto Parts Diagram

  • Title

1

Echo 15901019830

SPARK PLUG - BPM8Y

$3.99

$

In Stock, Qty 20+

0

2

Echo A426000010

TERMINAL, SPARK PLUG

$1.99

$

In Stock, Qty 20+

0

3

Echo A427000013

CAP, SPARK PLUG

$3.99

$

In Stock, Qty 20+

0

4

Echo A411000031

COIL, IGNITION

$101.99

$

Usually ships in 2-4 days

0

5

Echo 90016204030

BOLT 4×30

$1.99

$

Usually ships in 2-4 days

0

6

Echo A409000030

FLYWHEEL

$106.99

$

Usually ships in 2-4 days

0

7

Echo 90051500008

NUT, FLANGE M8

$1.99

$

In Stock, only 4 left!

0

8

Echo 17723435430

SPRING, TORSION

$2.99

$

In Stock, only 2 left!

0

9

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

10

Echo 17721819830

PAWL, STARTER

$5.49

$

In Stock, only 2 left!

0

11

Echo 17724704630

SPACER 5.2×8×2.1

$2.49

$

In Stock, only 2 left!

0

12

Echo V203000090

BOLT 5×14

$0.99

$

Usually ships in 2-4 days

0

13

Echo A172000062

COVER, FAN

$13.99

$

Usually ships in 2-4 days

0

14

Echo P021013481

STARTER ASSY, RECOIL
(Superseded to P021013482)

$96.99

$

In Stock, only 1 left!

0

15

Echo 900238-05012

SCREW 5×12

$0.99

$

In Stock, Qty 5

0

16

Echo 177214-02830

WASHER 5.2×16×1.0

$0.99

$

In Stock, only 2 left!

0

17

Echo 17722619830

ROPE, STARTER

$5.99

$

In Stock, only 1 left!

0

18

Echo A506000100

REEL, ROPE

$16.99

$

In Stock, only 2 left!

0

19

Echo 17722135430

PLATE, STARTER

$3.99

$

In Stock, only 2 left!

0

20

Echo 17722035430

SPRING, RECOIL

$15.99

$

In Stock, only 2 left!

0

21

Echo 17722835430

GRIP, STARTER
(Superseded to 17722835431)

$9.99

$

In Stock, Qty 15

0

22

Echo 90029603014

SCREW 3×14

$0.99

$

In Stock, Qty 7

0

23

Echo 17722737930

GUIDE, ROPE

$4.49

$

In Stock, only 2 left!

0

24

Echo X502000410

LABEL, ECHO

$2.49

$

In Stock, Qty 20+

0

25

Echo 90023805018

SCREW 5×18

$0.99

$

In Stock, Qty 6

0
