CS-510 EVLP - Echo Chainsaw Handles Parts Diagram

Chainsaw

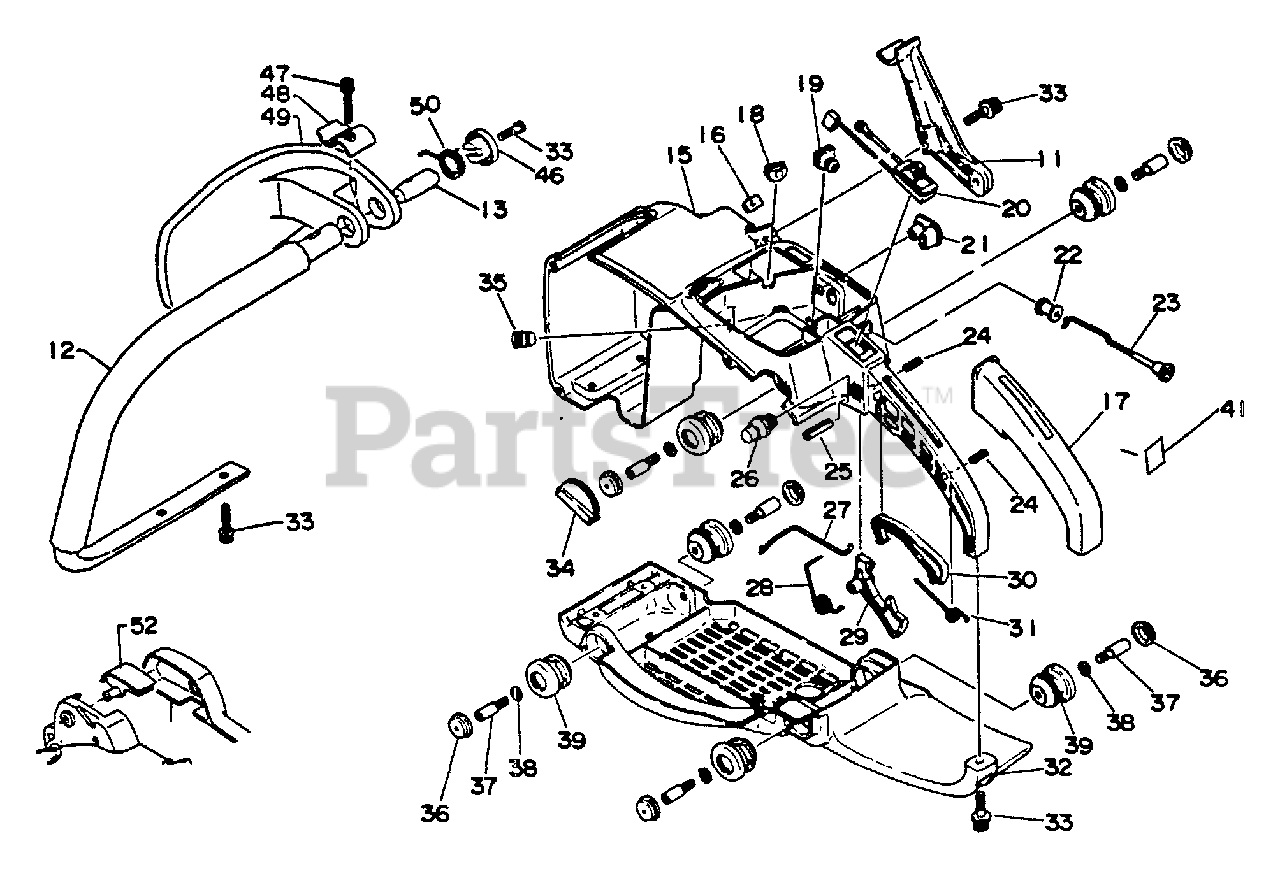

Handles Parts Diagram

  • Title

11

Echo 35161417330

BRACKET, HANDLE - UPPER
(Superseded to Discontinued)

$

$

Not available

12

Echo 35160617330

HANDLE - FRONT

$80.99

$

In Stock, only 1 left!

0

13

Echo 35161716330

INSERT

$4.99

$

Usually ships in 2-4 days

0

15

Echo 35111012331

HANDLE - REAR

$133.99

$

Usually ships in 2-4 days

0

16

Echo 35113712330

STOPPER

$1.49

$

Usually ships in 2-4 days

0

17

Echo 35111112330

GRIP, HANDLE - REAR
(Superseded to Discontinued)

$

$

Not available

18

Echo 13011412330

GROMMET

$2.49

$

Usually ships in 2-4 days

0

19

Echo 17821012330

GROMMET

$1.49

$

Usually ships in 2-4 days

0

20

Echo 16340015230

IGNITION SWITCH ASSY
(Superseded to Discontinued)

$

$

Not available

21

Echo 12901012330

GROMMET
(Superseded to Discontinued)

$

$

Not available

22

Echo 17881011231

GROMMET

$1.49

$

Usually ships in 2-4 days

0

23

Echo 17851012330

ROD, CHOKE

$5.99

$

Usually ships in 2-4 days

0

24

Echo 90034040013

PIN - SPRING -- 4X13

$0.99

$

In Stock, Qty 9

0

25

Echo 90034050025

PIN - SPRING -- 5X25
(Superseded to Discontinued)

$

$

Not available

26

Echo 17830212330

LATCH, THROTTLE
(Superseded to 17830237930)

$9.99

$

In Stock, only 1 left!

0

27

Echo 17801112331

ROD, THROTTLE

$2.99

$

Usually ships in 2-4 days

0

28

Echo 17804315130

SPRING, TRIGGER

$2.49

$

In Stock, Qty 9

0

29

Echo 17801012333

TRIGGER, THROTTLE
(Superseded to Discontinued)

$

$

Not available

30

Echo 17809012330

LOCKOUT, THROTTLE
(Superseded to Discontinued)

$

$

Not available

31

Echo 17809110531

SPRING, LOCKOUT LEVER

$1.99

$

In Stock, only 1 left!

0

32

Echo 35112312531

SUPPORT
(Superseded to Discontinued)

$

$

Not available

33

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

34

Echo 35113814332

COVER, CUSHION

$

$

Not available

35

Echo 13211512330

GROMMET

$1.49

$

In Stock, Qty 20+

0

36

Echo 10091814330

CAP, CUSHION

$1.99

$

In Stock, Qty 20+

0

37

Echo 10091514332

SCREW

$3.49

$

In Stock, only 2 left!

0

38

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, only 4 left!

0

39

Echo 10091012530

CUSHION

$

$

Not available

41

Echo 89012112331

LABEL - CHOKE
(Superseded to Discontinued)

$

$

Not available

46

Echo 35183315130

RETAINER

$4.49

$

Usually ships in 2-4 days

0

47

Echo 90016205035

SCREW - 5X35

$1.49

$

In Stock, Qty 16

0

48

Echo 35184018330

STOPPER

$3.49

$

Usually ships in 2-4 days

0

49

Echo 35182614330

GUARD
(Superseded to Discontinued)

$

$

Not available

50

Echo 35183613730

SPRING

$2.49

$

Usually ships in 2-4 days

0

52

Echo 10061212332

COVER
(Superseded to Discontinued)

$

$

Not available
