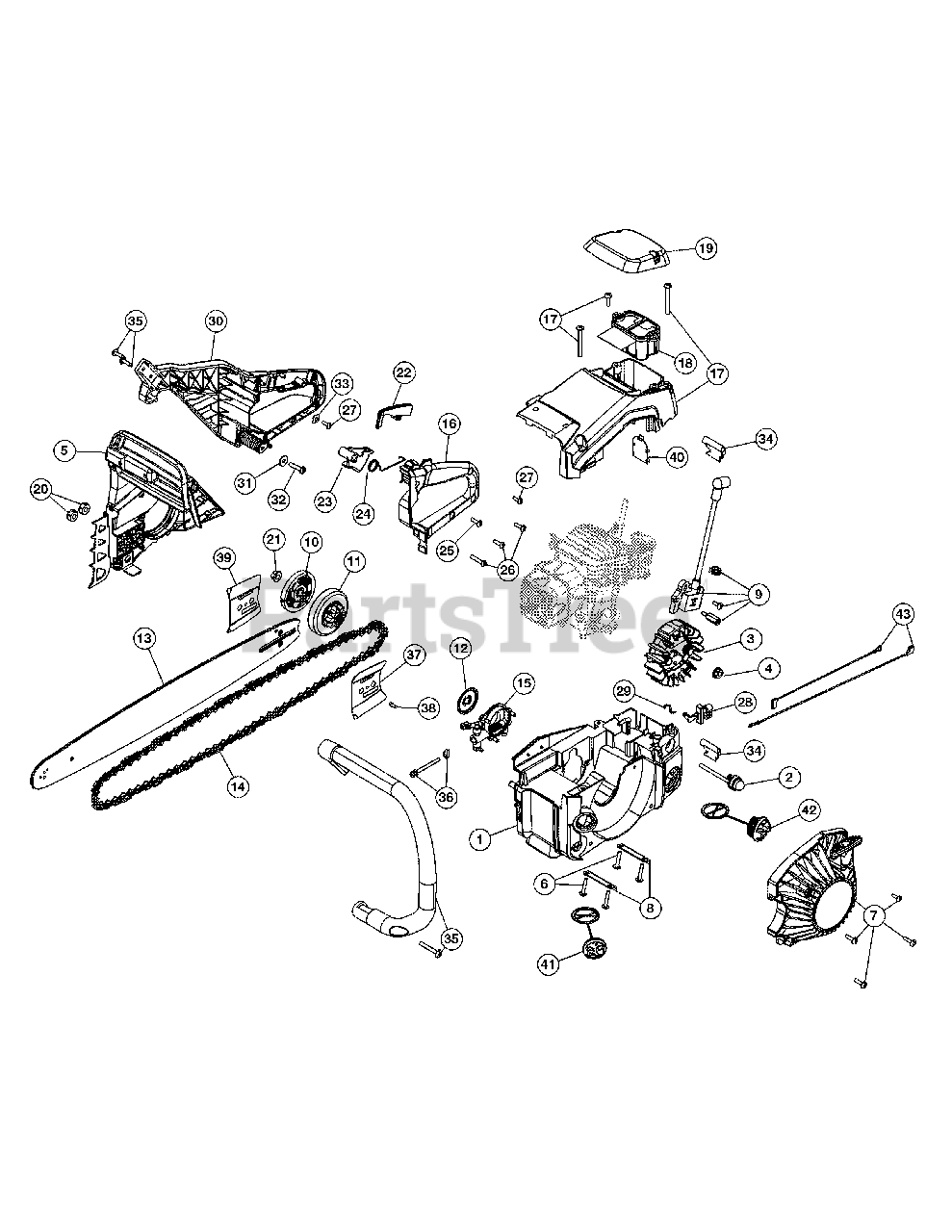

CS 511 (41AY80AS912) - Cub Cadet Chainsaw (2015) General Assembly Parts Diagram

Chainsaw

General Assembly Parts Diagram

  • Title

1

Cub Cadet 753-06730

Housing Assy

Note: (includes 2, 41 & 42)

$

$

Not available

2

Cub Cadet 753-06425

Primer Bulb W/Line

$3.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 753-06976

Flywheel Asm

$18.99

$

In Stock, only 1 left!

0

4

Cub Cadet 753-06427

Flywheel Nut

$2.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 753-06983

Chain Brake Asm

$52.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 753-06429

Engine Mnt Hdw

$

$

Not available

7

Cub Cadet 753-06984

Starter Hsg Asm

$

$

Not available

8

Cub Cadet 753-06431

Engine Mnt Plate Flg

Note: (includes 6)

$2.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 753-06432

Module 55Cc

$21.99

$

In Stock, only 3 left!

0

10

Cub Cadet 753-06449

Clutch Assy 55Cc

$16.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 753-06450

Clutch Drum

$

$

Not available

12

Cub Cadet 753-06451

Shield Oil Pump

$2.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 753-06733

Bar 51Cc Saw 18"
(Superseded to 795-00288)

$35.99

$

In Stock, only 3 left!

0

14

Cub Cadet 753-06265

Chain 18" 55Cc
(Superseded to 713-05043)

$36.99

$

In Stock, only 2 left!

0

15

Cub Cadet 753-06387

Oil Pump Asm 55Cc

$

$

Not available

16

Cub Cadet 753-06734

Cover Assy Rr Saw

$

$

Not available

17

Cub Cadet 753-06456

Cover Assy Top

Note: (includes 40)

$12.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 753-06457

Aircleaner Assy

$

$

Not available

19

Cub Cadet 753-06458

Aircleaner Cover

$2.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 753-06460

Bar Hdw

$2.99

$

In Stock, Qty 20+

0

21

Cub Cadet 753-06461

Clutch Hdw

$2.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 753-06985

Trigger Release

$2.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 753-06986

Trigger

$2.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 753-06466

Trigger Spring

$2.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 753-06467

Upper Grip Screw

$2.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 753-06468

Screw 8/16X.625
(Superseded to 753-06470)

$2.49

$

In Stock, Qty 17

0

27

Cub Cadet 753-06470

Screw 8/16X.500

$2.49

$

In Stock, Qty 17

0

28

Cub Cadet 753-06987

Choke Asm

$2.99

$

In Stock, only 1 left!

0

29

Cub Cadet 753-06474

Choke Rod

$2.99

$

In Stock, only 1 left!

0

30

Cub Cadet 753-06738

Handle Assy Rr

$14.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 753-06477

Washer

$2.49

$

Usually ships in 3-6 days

0

32

Cub Cadet 753-06478

Srew Anti Vibe

$2.49

$

Usually ships in 3-6 days

0

33

Cub Cadet 753-06479

Washer

$2.49

$

Usually ships in 3-6 days

0

34

Cub Cadet 753-06739

Boot: Carb Saw

$5.49

$

Usually ships in 3-6 days

0

35

Cub Cadet 753-06483

Handle Assy 55Cc

$10.99

$

In Stock, only 2 left!

0

36

Cub Cadet 753-06484

Tension Screw/Nut

$3.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 753-06740

Guide Plate Inr

$

$

Not available

38

Cub Cadet 753-06487

Screw 6/19-.375

$2.49

$

Usually ships in 3-6 days

0

39

Cub Cadet 753-06488

Guide Plate Otr

$

$

Not available

40

Cub Cadet 753-06504

Screen

$2.49

$

Usually ships in 3-6 days

0

41

Cub Cadet 753-06505

Oil Cap

$3.49

$

In Stock, Qty 8

0

42

Cub Cadet 753-06741

Fuel Cap Saw

$3.49

$

Usually ships in 3-6 days

0

43

Cub Cadet 753-06510

Ground Wire

$2.99

$

Usually ships in 3-6 days

0

Cub Cadet 753-06489

Case Chainsaw

Note: (Not shown)

$

$

Not available

Cub Cadet 753-06490

Wrench

Note: (Not shown)

$

$

Not available
