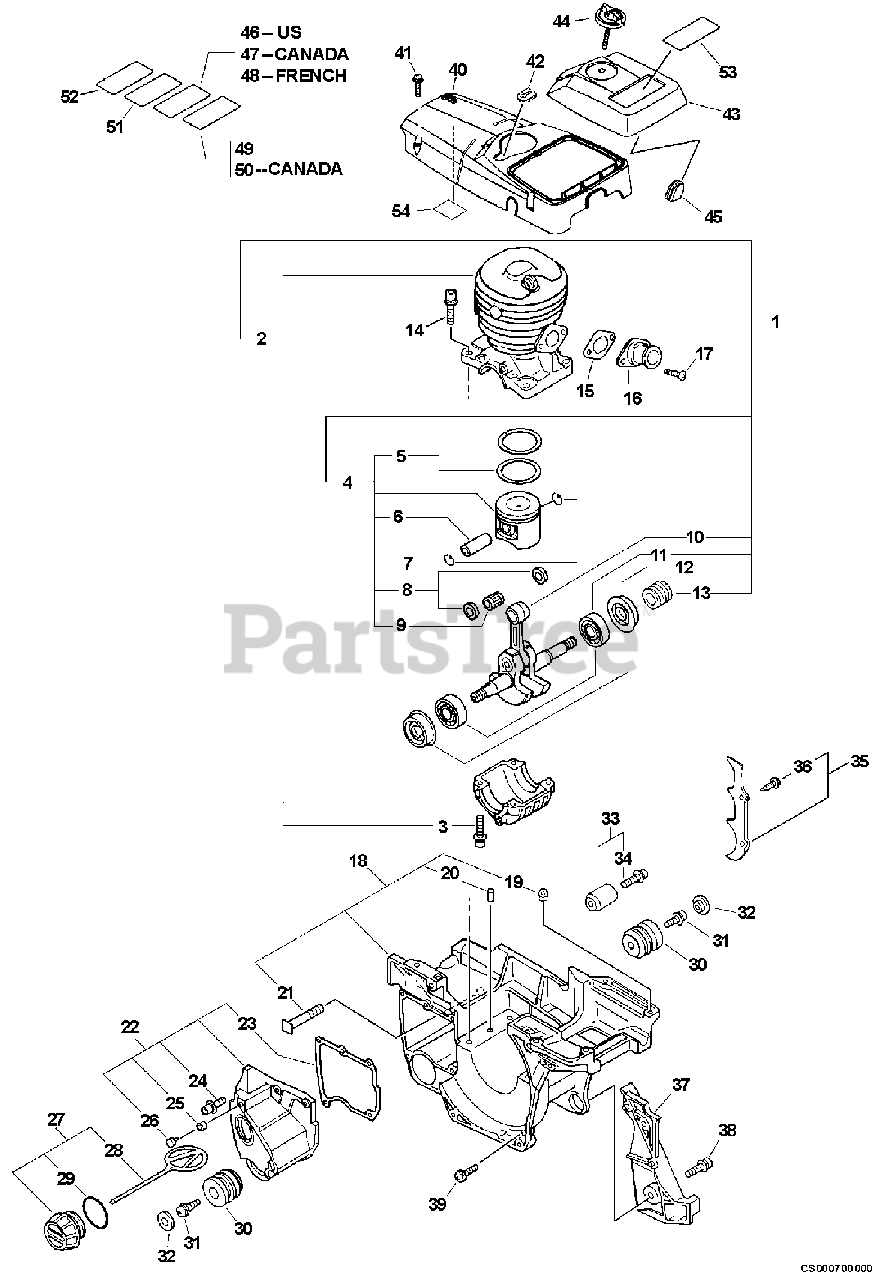

CS-520 - Echo Chainsaw (SN: 05001001 - 05999999) Engine, Engine Cover Parts Diagram

Chainsaw

Engine, Engine Cover Parts Diagram

  • Title

1

Echo SB1080

SHORT BLOCK -- SB1080

Note: Includes ITEM 2-13

$324.99

$

Usually ships in 2-4 days

0

2

Echo P021006990

CRANKCASE KIT
(Superseded to P021006992)

Note: Includes ITEM 3

$297.99

$

Usually ships in 2-4 days

0

3

Echo 90010605020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

4

Echo P021006150

PISTON KIT
(Superseded to P021006152)

Note: INCLUDES ITEMS 5-9

$74.99

$

Usually ships in 2-4 days

0

5

Echo 10001139730

RING, PISTON
(Superseded to 10001139731)

$9.99

$

In Stock, Qty 12

0

6

Echo V609000000

PIN, PISTON

$5.49

$

Usually ships in 2-4 days

0

7

Echo 10001532330

RING, RETAINING

$0.99

$

In Stock, only 2 left!

0

8

Echo V308000010

SPACER

$12.99

$

Usually ships in 2-4 days

0

9

Echo V556000000

BEARING, NEEDLE

$13.99

$

Usually ships in 2-4 days

0

10

Echo A011000320

CRANKSHAFT ASSY
(Superseded to A011000321)

$

$

Not available

11

Echo V508000000

SEAL, OIL

$5.99

$

Usually ships in 2-4 days

0

12

Echo 90081036202

BEARING, BALL - 6202

$9.99

$

In Stock, Qty 14

0

13

Echo V652000000

GEAR - WORM
(Superseded to V652000080)

$14.99

$

Usually ships in 2-4 days

0

14

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

15

Echo 13001639930

GASKET, INTAKE

$2.99

$

In Stock, Qty 18

0

16

Echo 13051039932

ADAPTOR, INTAKE

$23.99

$

Usually ships in 2-4 days

0

17

Echo 90023805012

SCREW - 5X12

$0.99

$

In Stock, Qty 9

0

18

Echo P021003100

ENGINE COVER ASSY
(Superseded to P021003101)

Note: INCLUDES ITEMS 19-21

$158.99

$

Usually ships in 2-4 days

0

19

Echo 43601838330

COLLAR

$0.99

$

Usually ships in 2-4 days

0

20

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 9

0

21

Echo 43301119831

STUD, GUIDE BAR

$2.99

$

In Stock, Qty 18

0

22

Echo 43600539332

OIL TANK ASSY

Note: INCLUDES ITEMS 23-26

$50.99

$

Usually ships in 2-4 days

0

23

Echo 43601938330

GASKET, OIL TANK

$1.99

$

In Stock, Qty 6

0

24

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

25

Echo 43601838330

COLLAR

$0.99

$

Usually ships in 2-4 days

0

26

Echo 43611413930

VENT, TANK

$6.49

$

In Stock, Qty 5

0

27

Echo 43600165631

CAP ASSY
(Superseded to 43600139232)

Note: INCLUDES ITEMS 28-29

$2.99

$

In Stock, Qty 20+

0

28

Echo A365000050

CONNECTOR, CAP

$2.49

$

In Stock, Qty 20+

0

29

Echo 90072502025

O-RING - 25

$2.49

$

In Stock, only 2 left!

0

30

Echo 10092138330

CUSHION

$20.99

$

Usually ships in 2-4 days

0

31

Echo 10091533930

SCREW

$2.49

$

In Stock, Qty 18

0

32

Echo 10091838330

CAP, CUSHION

$2.49

$

In Stock, only 1 left!

0

33

Echo 43300019831

CHAIN CATCHER KIT
(Superseded to 43300019832)

Note: Includes ITEM 34

$2.99

$

In Stock, Qty 12

0

34

Echo 90022005018

SCREW - 5X18

$0.99

$

In Stock, Qty 5

0

35

Echo 88020038330

SPIKE KIT

Note: Includes ITEM 36

$12.99

$

Usually ships in 2-4 days

0

36

Echo 90010505012

SCREW - 5X12

$1.49

$

In Stock, Qty 20+

0

37

Echo 43304539331

COVER
(Superseded to 43304539332)

$3.49

$

Usually ships in 2-4 days

0

38

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

39

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

40

Echo A160000200

COVER, ENGINE
(Superseded to A160000201)

$34.99

$

Usually ships in 2-4 days

0

41

Echo 16389038330

SCREW - 5

$1.99

$

In Stock, Qty 5

0

42

Echo V135000010

GROMMET

$1.99

$

Usually ships in 2-4 days

0

43

Echo P021007154

AIR FILTER COVER ASSY - BLACK

$11.99

$

In Stock, Qty 15

0

44

Echo A235000000

THUMBSCREW

$4.99

$

In Stock, Qty 20+

0

45

Echo 13033832430

PLUG

$1.49

$

In Stock, Qty 19

0

46

Echo 89019130131

LABEL - KICK BACK

$3.99

$

Usually ships in 2-4 days

0

47

Echo X505000450

LABEL - KICK BACK

$4.49

$

Usually ships in 2-4 days

0

48

Echo X505000460

LABEL - KICK BACK

$3.99

$

Usually ships in 2-4 days

0

49

Echo X524000400

LABEL - BAR & CHAIN
(Superseded to Discontinued)

$

$

Not available

50

Echo X524001170

LABEL - BAR & CHAIN
(Superseded to Discontinued)

$

$

Not available

51

Echo 89017639431

LABEL - NOISE

$3.99

$

Usually ships in 2-4 days

0

52

Echo 89032439630

LABEL - ATTENTION

$6.49

$

Usually ships in 2-4 days

0

53

Echo X503005440

LABEL - MODEL CS-520

$4.49

$

In Stock, only 1 left!

0

54

Echo 10152035430

DEFLECTOR, HEAT

$3.49

$

Usually ships in 2-4 days

0
