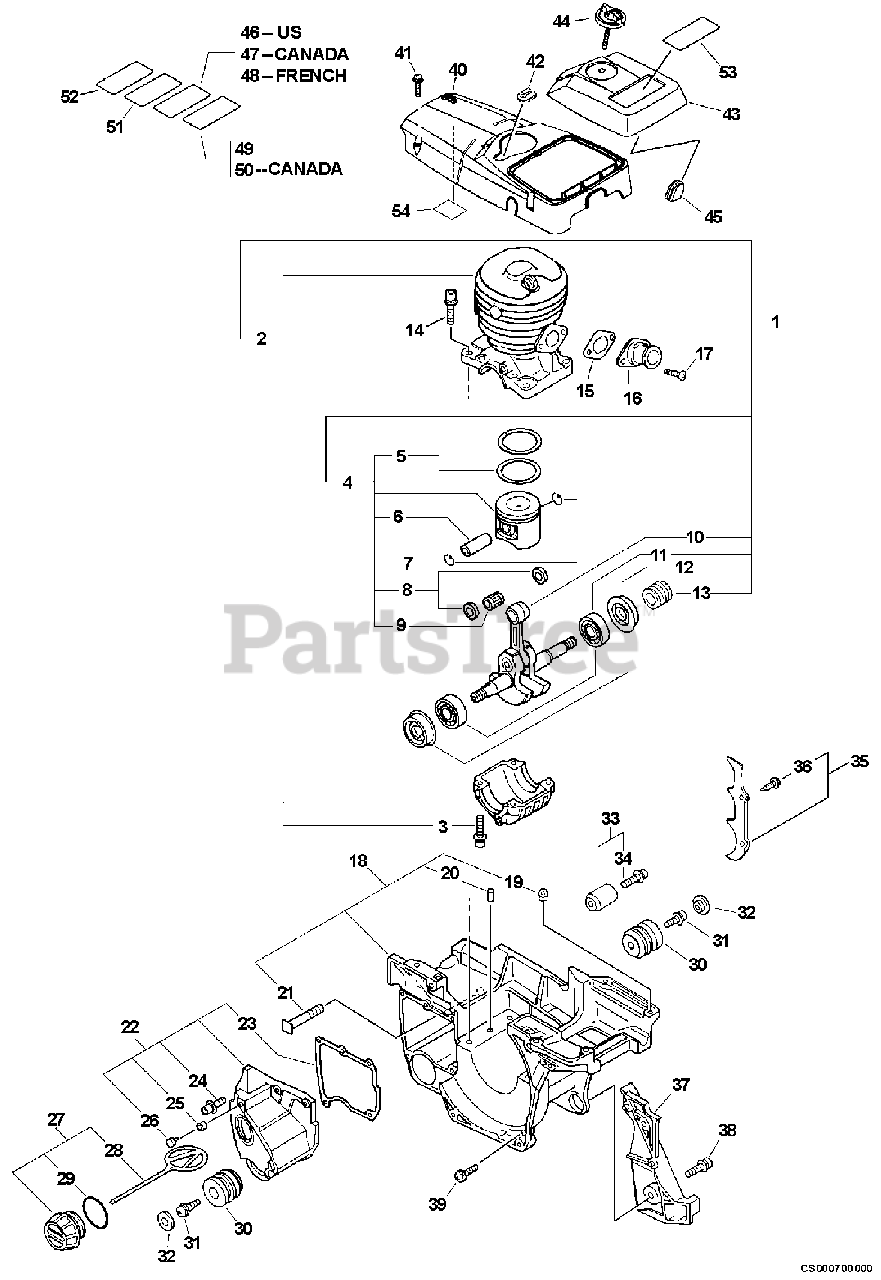

CS-520 - Echo Chainsaw (SN: 05001001 - 05999999) Engine, Engine Cover Parts Diagram

CS-520 chain saw - 50.1 cc engine (sb1080 short block). Guide bars: 16", 18", 20" - 0.050" gauge (Microlite Pro). Sawing chains: 16", 18", 20" - 0.050" gauge, 0.325" pitch (micro-lite).

Engine, Engine Cover Parts Diagram

  • Title

1

Echo SB1080

SHORT BLOCK

Note: Includes ITEM 2-13 RePower OPTION

$389.99

$

Usually ships in 2-4 days

0

2

Echo P021006990

CRANKCASE KIT
(Superseded to P021006992)

Note: Includes ITEM 3

$374.99

$

Usually ships in 2-4 days

0

3

Echo 90010605020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

4

Echo P021006150

PISTON KIT
(Superseded to P021006152)

Note: INCLUDES ITEMS 5-9

$88.99

$

Usually ships in 2-4 days

0

5

Echo 10001139730

RING, PISTON
(Superseded to 10001139731)

$11.99

$

In Stock, Qty 10

0

6

Echo V609000000

PIN, PISTON

$6.49

$

Usually ships in 2-4 days

0

7

Echo 10001532330

RING, SNAP

$0.99

$

Usually ships in 2-4 days

0

8

Echo V308000010

SPACER

$14.99

$

Usually ships in 2-4 days

0

9

Echo V556000000

BEARING, NEEDLE 11

$16.99

$

In Stock, only 2 left!

0

10

Echo A011000320

CRANKSHAFT ASSY
(Superseded to A011000321)

$

$

Not available

11

Echo V508000000

SEAL, OIL

$6.99

$

In Stock, only 2 left!

0

12

Echo 90081036202

BEARING, BALL 6202

$11.99

$

In Stock, Qty 12

0

13

Echo V652000000

GEAR, WORM
(Superseded to V652000080)

$17.99

$

Usually ships in 2-4 days

0

14

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, Qty 20+

0

15

Echo 13001639930

GASKET, INTAKE

$3.49

$

In Stock, Qty 13

0

16

Echo 13051039932

ADAPTOR, INTAKE

$28.99

$

Usually ships in 2-4 days

0

17

Echo 900238-05012

SCREW 5×12

$0.99

$

In Stock, Qty 5

0

18

Echo P021003100

COVER, ENGINE
(Superseded to P021003101)

Note: INCLUDES ITEMS 19-21

$189.99

$

Usually ships in 2-4 days

0

19

Echo 43601838330

COLLAR 5.5×6.65×5

$0.99

$

Usually ships in 2-4 days

0

20

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

21

Echo 43301119831

STUD, GUIDE BAR 8

$3.49

$

In Stock, Qty 20+

0

22

Echo 43600539332

TANK, OIL

Note: INCLUDES ITEMS 23-26

$61.99

$

Usually ships in 2-4 days

0

23

Echo 43601938330

GASKET, OIL TANK

$2.49

$

In Stock, only 4 left!

0

24

Echo 90016304016

BOLT 4×16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 20+

0

25

Echo 43601838330

COLLAR 5.5×6.65×5

$0.99

$

Usually ships in 2-4 days

0

26

Echo 436114-13930

VENT ASSY
(Superseded to 43611413930)

$7.49

$

In Stock, Qty 20+

0

27

Echo 43600165631

CAP ASSY
(Superseded to 43600139232)

Note: INCLUDES ITEMS 28-29

$3.49

$

In Stock, Qty 20+

0

28

Echo A365-000050

CONNECTOR, CAP L= 60 MM
(Superseded to A365000050)

$2.49

$

In Stock, Qty 20+

0

29

Echo 90072502025

O-RING

$2.99

$

In Stock, only 4 left!

0

30

Echo 10092138330

CUSHION 5

$24.99

$

Usually ships in 2-4 days

0

31

Echo 10091533930

SCREW 5

$2.99

$

In Stock, Qty 20+

0

32

Echo 10091838330

CAP, CUSHION

$2.99

$

Usually ships in 2-4 days

0

33

Echo 43300019831

CHAIN CATCHER KIT
(Superseded to 43300019832)

Note: Includes ITEM 34

$3.49

$

In Stock, Qty 12

0

34

Echo 90022005018

SCREW 5×18

$0.99

$

Usually ships in 2-4 days

0

35

Echo 88020038330

SPIKE KIT, BUMPER

Note: Includes ITEM 36

$15.99

$

In Stock, only 1 left!

0

36

Echo 90010505012

BOLT 5×12

$1.49

$

In Stock, Qty 12

0

37

Echo 43304539331

COVER
(Superseded to 43304539332)

$3.99

$

In Stock, only 2 left!

0

38

Echo 90023805016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

39

Echo 90023805016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

40

Echo A160000200

COVER, ENGINE
(Superseded to A160000201)

$40.99

$

Usually ships in 2-4 days

0

41

Echo 16389038330

BOLT 5

$1.99

$

In Stock, only 4 left!

0

42

Echo V135000010

GROMMET

$1.99

$

In Stock, Qty 5

0

43

Echo P021007154

COVER ASSY, AIR FILTER

$14.99

$

In Stock, Qty 9

0

44

Echo A235000000

THUMBSCREW

$5.99

$

In Stock, Qty 12

0

45

Echo 13033832430

GROMMET

$1.99

$

In Stock, only 3 left!

0

46

Echo 89019130131

LABEL, UL - KICK BACK

$4.99

$

Usually ships in 2-4 days

0

47

Echo X505000450

LABEL, KICK BACK

Note: CANADA MODELS

$5.49

$

Usually ships in 2-4 days

0

48

Echo X505000460

LABEL, KICK BACK - FRENCH

Note: CANADA MODELS

$4.99

$

Usually ships in 2-4 days

0

49

Echo X524000400

LABEL, BAR & CHAIN
(Superseded to Discontinued)

$

$

Not available

50

Echo X524001170

LABEL, BAR & CHAIN
(Superseded to Discontinued)

Note: CANADA MODELS

$

$

Not available

51

Echo 89017639431

LABEL, NOISE - ENGLISH/FRENCH

Note: CANADA MODELS

$4.99

$

Usually ships in 2-4 days

0

52

Echo 89032439630

LABEL, ATTENTION - CANADA

Note: CANADA MODELS

$7.99

$

Usually ships in 2-4 days

0

53

Echo X503005440

LABEL, MODEL

$5.49

$

Usually ships in 2-4 days

0

54

Echo 10152035430

SHIELD, HEAT

$3.99

$

Usually ships in 2-4 days

0
