CS-520 - Echo Chainsaw (SN: 05001001 - 05999999) Ignition, Starter Parts Diagram

CS-520 chain saw - 50.1 cc engine (sb1080 short block). Guide bars: 16", 18", 20" - 0.050" gauge (Microlite Pro). Sawing chains: 16", 18", 20" - 0.050" gauge, 0.325" pitch (micro-lite).

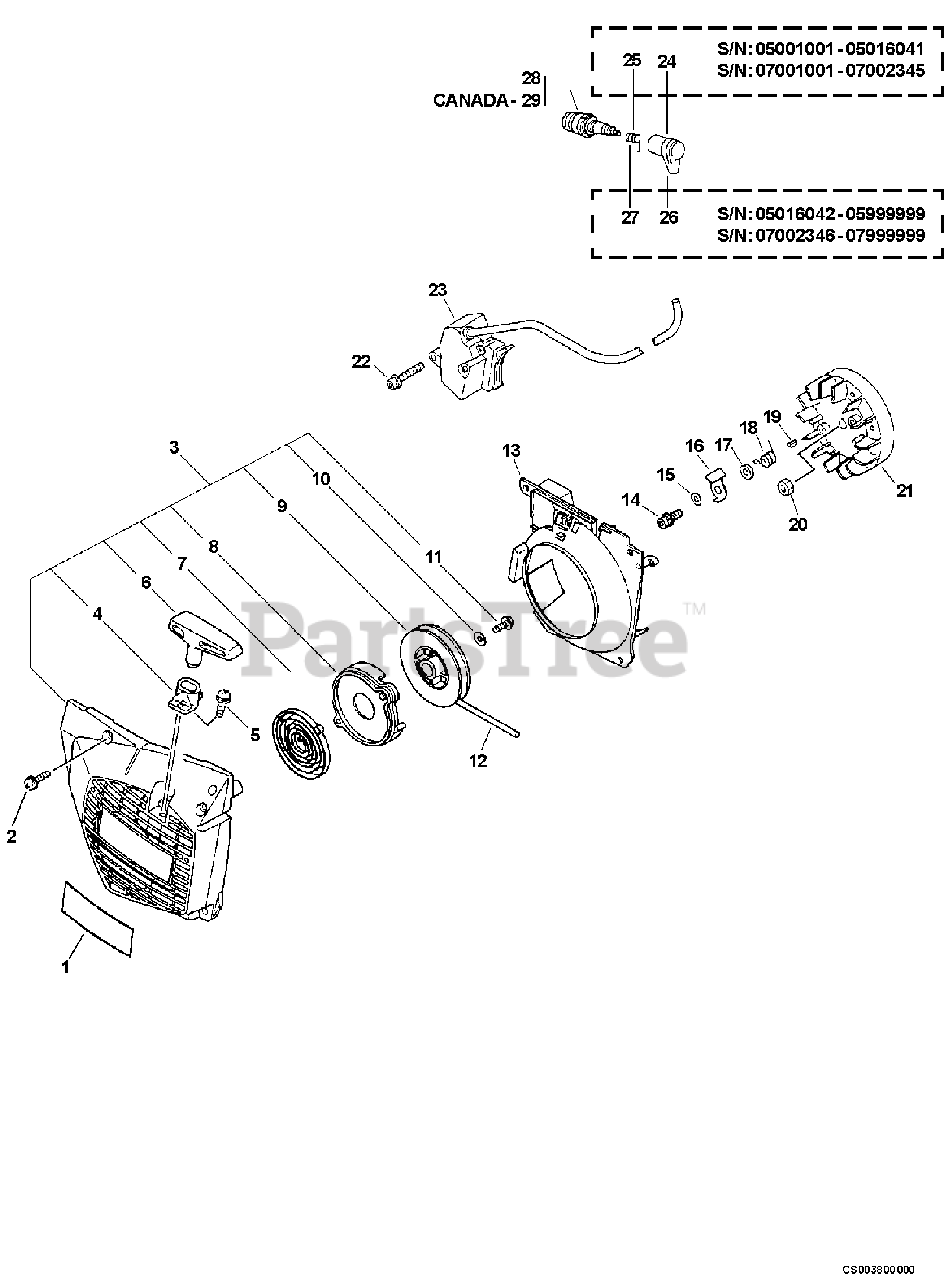

Ignition, Starter Parts Diagram

  • Title

1

Echo X502000010

LABEL

$3.49

$

Usually ships in 2-4 days

0

2

Echo 90023805018

SCREW 5×18

$0.99

$

In Stock, Qty 10

0

3

Echo 17720039335

STARTER ASSY
(Superseded to 17720039336)

Note: INCLUDES ITEMS 4-12

$117.99

$

In Stock, only 2 left!

0

4

Echo 17722737930

GUIDE, ROPE

$4.49

$

In Stock, only 2 left!

0

5

Echo 90029603014

SCREW 3×14

$0.99

$

In Stock, Qty 7

0

6

Echo 17722835431

GRIP, STARTER
(Superseded to 17722835432)

$9.99

$

In Stock, Qty 15

0

7

Echo 17722035430

SPRING, RECOIL

$15.99

$

In Stock, only 2 left!

0

8

Echo 17722138330

PLATE, STARTER

$4.49

$

In Stock, only 1 left!

0

9

Echo 17721538330

REEL, ROPE

$11.99

$

In Stock, only 2 left!

0

10

Echo 177214-02830

WASHER 5.2×16×1.0

$0.99

$

In Stock, only 1 left!

0

11

Echo 900238-05012

SCREW 5×12

$0.99

$

In Stock, Qty 6

0

12

Echo 17722605310

ROPE, STARTER

Note: RePower BULK OPTION: 99944445000

$6.49

$

In Stock, only 3 left!

0

13

Echo A172000062

COVER, FAN

$13.99

$

Usually ships in 2-4 days

0

14

Echo V203000090

BOLT 5×14

$0.99

$

Usually ships in 2-4 days

0

15

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

16

Echo 17721819830

PAWL, STARTER

$5.49

$

In Stock, only 2 left!

0

17

Echo 17724704630

SPACER 5.2×8×2.1

$2.49

$

In Stock, only 2 left!

0

18

Echo 17723435430

SPRING, TORSION

$2.99

$

In Stock, only 2 left!

0

19

Echo 10014230830

KEY, WOODRUFF

$1.99

$

In Stock, Qty 19

0

20

Echo 90051500008

NUT, FLANGE M8

$1.99

$

In Stock, only 4 left!

0

21

Echo A409000030

FLYWHEEL

$106.99

$

Usually ships in 2-4 days

0

22

Echo 90016204030

BOLT 4×30

$1.99

$

Usually ships in 2-4 days

0

23

Echo A411000030

COIL, IGNITION
(Superseded to A411000031)

$101.99

$

Usually ships in 2-4 days

0

24

Echo 159012-01620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 9

0

25

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

26

Echo A427000013

CAP, SPARK PLUG

$3.99

$

In Stock, Qty 20+

0

27

Echo A426000010

TERMINAL, SPARK PLUG

$1.99

$

In Stock, Qty 20+

0

28

Echo 15901010630

SPARK PLUG - BPM7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

29

Echo A425000000

SPARK PLUG - BPMR8Y

Note: CANADA MODELS

$3.99

$

In Stock, Qty 20+

0
