CS-520 - Echo Chainsaw (SN: 07001001 - 07999999) Auto-Oiler Assembly, Tools Parts Diagram

CS-520 chain saw - 50.1 cc engine (sb1080 short block). Guide bars: 16", 18", 20" - 0.050" gauge (Microlite Pro). Sawing chains: 16", 18", 20" - 0.050" gauge, 0.325" pitch (micro-lite).

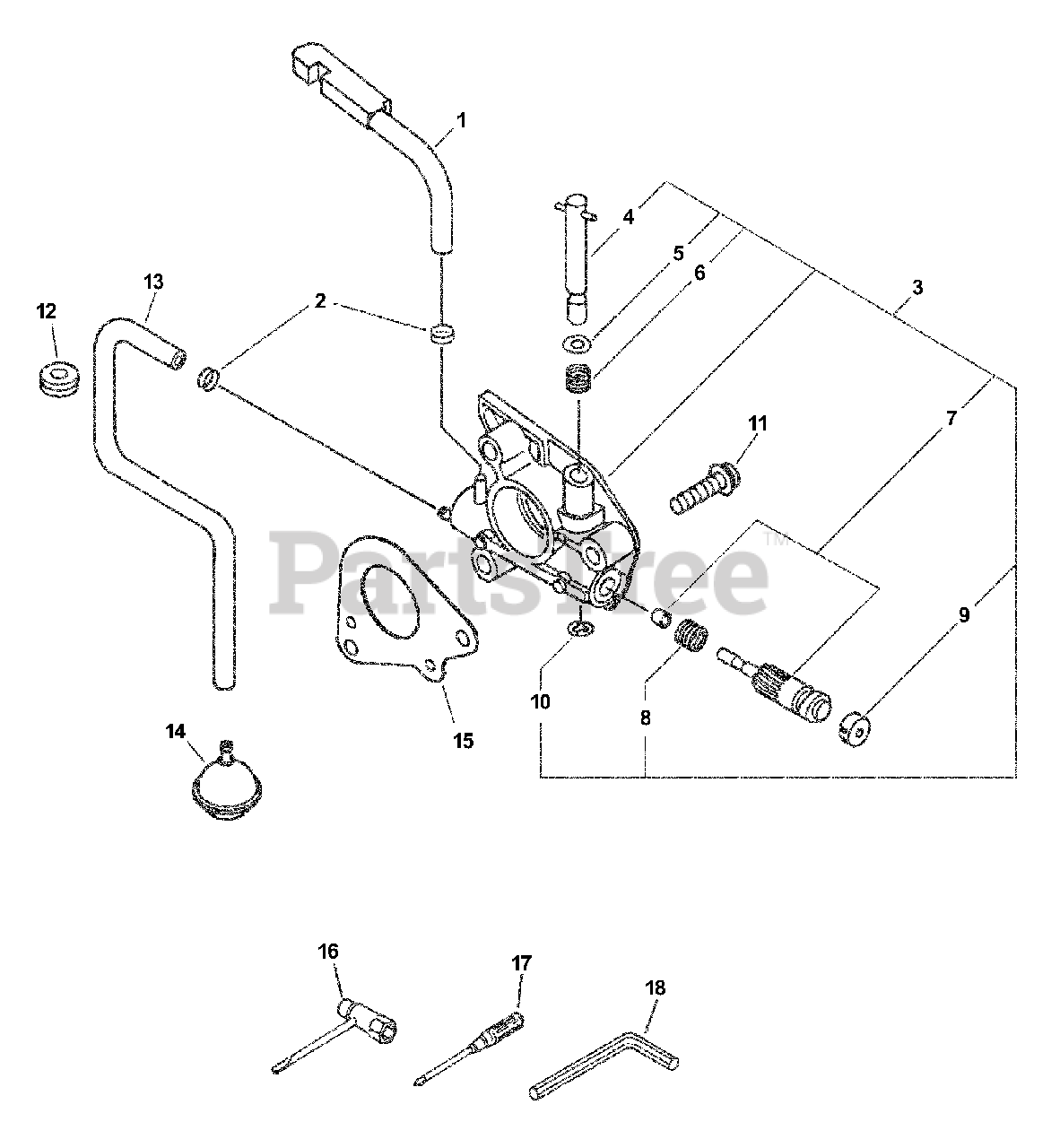

Auto-Oiler Assembly, Tools Parts Diagram

  • Title

1

Echo 43722938331

PIPE, OIL OUTLET

$

$

Not available

2

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

3

Echo 43700238330

AUTO-OILER ASSY

Note: INCLUDES ITEMS 4-10

$61.99

$

In Stock, only 4 left!

0

4

Echo 43701638330

SCREW, ADJUSTER

$17.99

$

Usually ships in 2-4 days

0

5

Echo 43702937330

WASHER

$3.49

$

In Stock, only 1 left!

0

6

Echo 43701537330

SPRING

$4.49

$

Usually ships in 2-4 days

0

7

Echo 43702437330

PLUNGER ASSY

$28.99

$

Usually ships in 2-4 days

0

8

Echo 43701938330

SPRING

$4.49

$

Usually ships in 2-4 days

0

9

Echo 43706238330

CAP, OIL PUMP

$5.99

$

Usually ships in 2-4 days

0

10

Echo 12312715030

E-RING

$0.99

$

In Stock, only 2 left!

0

11

Echo 90022304016

SCREW 4×16

$0.99

$

In Stock, Qty 20+

0

12

Echo 13211512330

GROMMET

$1.49

$

In Stock, Qty 20+

0

13

Echo 43721038330

PIPE, OIL
(Superseded to 43721038331)

$6.49

$

In Stock, Qty 6

0

14

Echo 43620514730

FILTER, OIL

$10.99

$

In Stock, Qty 16

0

15

Echo 17531038330

PLATE, SEAL

$1.49

$

In Stock, Qty 5

0

16

Echo 89541006960

T-WRENCH 13×19×180
(Superseded to 89541006961)

$4.49

$

In Stock, only 2 left!

0

17

Echo 89581203930

SCREWDRIVER, PHILLIPS

$4.99

$

In Stock, only 1 left!

0

18

Echo A605000100

WRENCH, ALLEN 4 MM

$

$

Currently unavailable
