CS-520 - Echo Chainsaw (SN: 07001001 - 07999999) Chain Brake, Cutting Attachment S/N: 07002930 - 07999999 Parts Diagram

Chainsaw

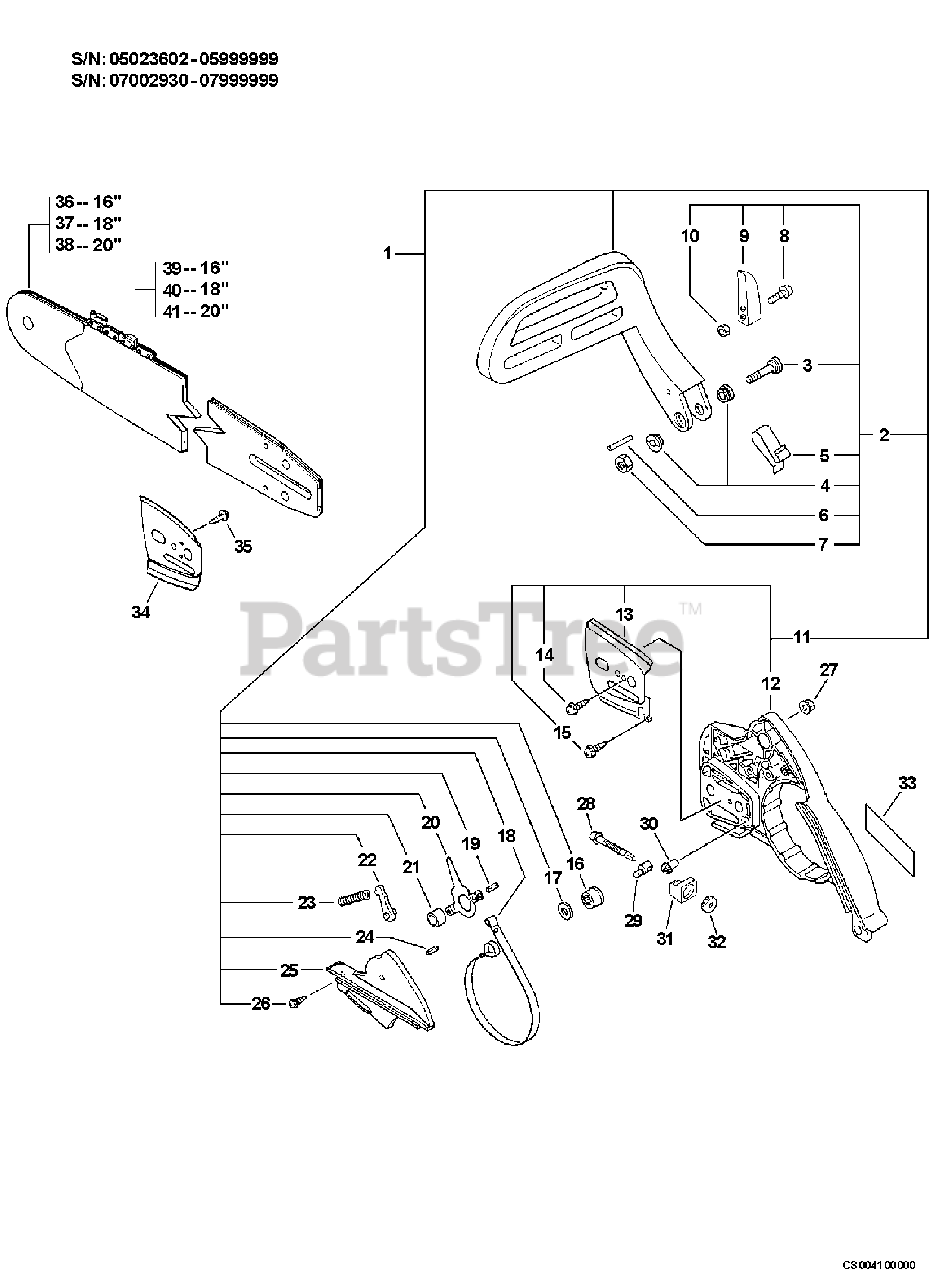

Chain Brake, Cutting Attachment S/N: 07002930 - 07999999 Parts Diagram

  • Title

1

Echo 43310039037

CHAIN BRAKE ASSY
(Superseded to 43310039038)

Note: INCLUDES ITEMS 2-25

$84.99

$

In Stock, only 2 left!

0

2

Echo 43320139031

BRAKE LEVER ASSY
(Superseded to 43320139032)

Note: INCLUDES ITEMS 3-10

$40.99

$

Usually ships in 2-4 days

0

3

Echo 9131805032

SCREW 5×32

$0.99

$

In Stock, Qty 10

0

4

Echo 43316739130

COLLAR 5.3×10×13×L5

$3.49

$

In Stock, Qty 12

0

5

Echo 43311438331

SPRING, FLAT

$7.99

$

Usually ships in 2-4 days

0

6

Echo 90033030260

PIN 3×26

$0.99

$

In Stock, Qty 20+

0

7

Echo 90056000005

NUT, LOCK M5

$1.49

$

In Stock, Qty 14

0

8

Echo 90023804018

SCREW 4×18

$0.99

$

In Stock, only 3 left!

0

9

Echo 43317139330

WEIGHT, BRAKE

$9.99

$

Usually ships in 2-4 days

0

10

Echo 900500-00004

NUT M4

$0.99

$

In Stock, Qty 20+

0

11

Echo P021001281

SPROCKET GUARD ASSY
(Superseded to P021001282)

Note: Includes ITEMS 12-15

$29.99

$

In Stock, only 2 left!

0

12

Echo 43300539333

GUARD, SPROCKET
(Superseded to 43300539334)

$29.99

$

In Stock, only 2 left!

0

13

Echo C305000001

PLATE, GUIDE - OUTER

$7.99

$

In Stock, only 2 left!

0

14

Echo 90022003006

SCREW 3×6

$0.99

$

In Stock, Qty 12

0

15

Echo 90025304010

SCREW 4×10

$0.99

$

In Stock, Qty 9

0

16

Echo 43314235430

ADJUSTER, BRAKE

$3.99

$

In Stock, only 2 left!

0

17

Echo V304000090

WASHER 8

$1.99

$

Usually ships in 2-4 days

0

18

Echo C328000060

BAND, BRAKE

$8.49

$

In Stock, only 2 left!

0

19

Echo 90033040088

PIN, SPRING 4×8.8

$1.49

$

In Stock, only 4 left!

0

20

Echo 43320835431

LEVER, BRAKE

$22.99

$

In Stock, only 2 left!

0

21

Echo 43311538330

WASHER 5.2×12×14

$1.49

$

Usually ships in 2-4 days

0

22

Echo 43320935430

STOPPER, BRAKE

$5.99

$

In Stock, only 2 left!

0

23

Echo 43312235430

SPRING, COMPRESSION

$3.99

$

In Stock, only 2 left!

0

24

Echo 90034225012

PIN, SPRING 2.5×12

$1.99

$

Usually ships in 2-4 days

0

25

Echo 43331039330

COVER, BRAKE

$6.99

$

In Stock, only 2 left!

0

26

Echo 90025304010

SCREW 4×10

$0.99

$

In Stock, Qty 9

0

27

Echo 43301912330

NUT, FLANGE M8×1.25
(Superseded to V265000200)

$2.49

$

In Stock, Qty 20+

0

28

Echo V203000110

SCREW, CHAIN TENSION

$6.99

$

In Stock, Qty 18

0

29

Echo C309000030

TENSIONER, CHAIN

$5.49

$

In Stock, Qty 20+

0

30

Echo V651000001

GEAR, BEVEL

$9.49

$

In Stock, Qty 20+

0

31

Echo V355000270

COLLAR 8
(Superseded to V355000800)

$1.99

$

In Stock, Qty 20+

0

32

Echo V651000011

GEAR, BEVEL

$9.49

$

In Stock, Qty 19

0

33

Echo X502000000

LABEL - ECHO

$3.99

$

In Stock, only 2 left!

0

34

Echo 43301335431

PLATE, GUIDE - INNER
(Superseded to 43301335432)

$6.99

$

In Stock, only 2 left!

0

35

Echo 900220-04006

SCREW 4×6

$0.99

$

In Stock, only 4 left!

0

36

Echo 16A0AD3366

GUIDE BAR - 16" -- DOUBLE GUARD
(Superseded to 16F0AD3366C)

Note: GAUGE: .050"

$69.99

$

In Stock, Qty 7

0

37

Echo 18A0AD3372

GUIDE BAR - 18" -- DOUBLE GUARD

Note: GAUGE: .050"

$

$

Not available

38

Echo 20A0AD3378

GUIDE BAR - 20" -- DOUBLE GUARD
(Superseded to 20F0AD3378C)

Note: GAUGE: .050"

$80.99

$

In Stock, Qty 8

0

39

Echo 33SL66CQ

SAWING CHAIN - 16" -- PRO GUARD
(Superseded to 20BPX66CQ)

Note: GAUGE: .050" / PITCH: .325"

$42.99

$

In Stock, Qty 6

0

40

Echo 33SL72CQ

SAWING CHAIN - 18" -- PRO GUARD
(Superseded to 20BPX72CQ)

Note: GAUGE: .050" / PITCH: .325"

$45.99

$

In Stock, Qty 11

0

41

Echo 33SL78CQ

SAWING CHAIN - 20" -- PRO GUARD
(Superseded to 20BPX78CQ)

Note: GAUGE: .050" / PITCH: .325"

$48.99

$

In Stock, Qty 18

0
