CS-520 - Echo Chainsaw (SN: C09312001001 - C09312999999) Chain Brake Parts Diagram

CS-520 chain saw - 50.1 cc engine (sb1080 short block). Guide bars: 16", 18", 20" - 0.050" gauge (Microlite Pro). Sawing chains: 16", 18", 20" - 0.050" gauge, 0.325" pitch (micro-lite).

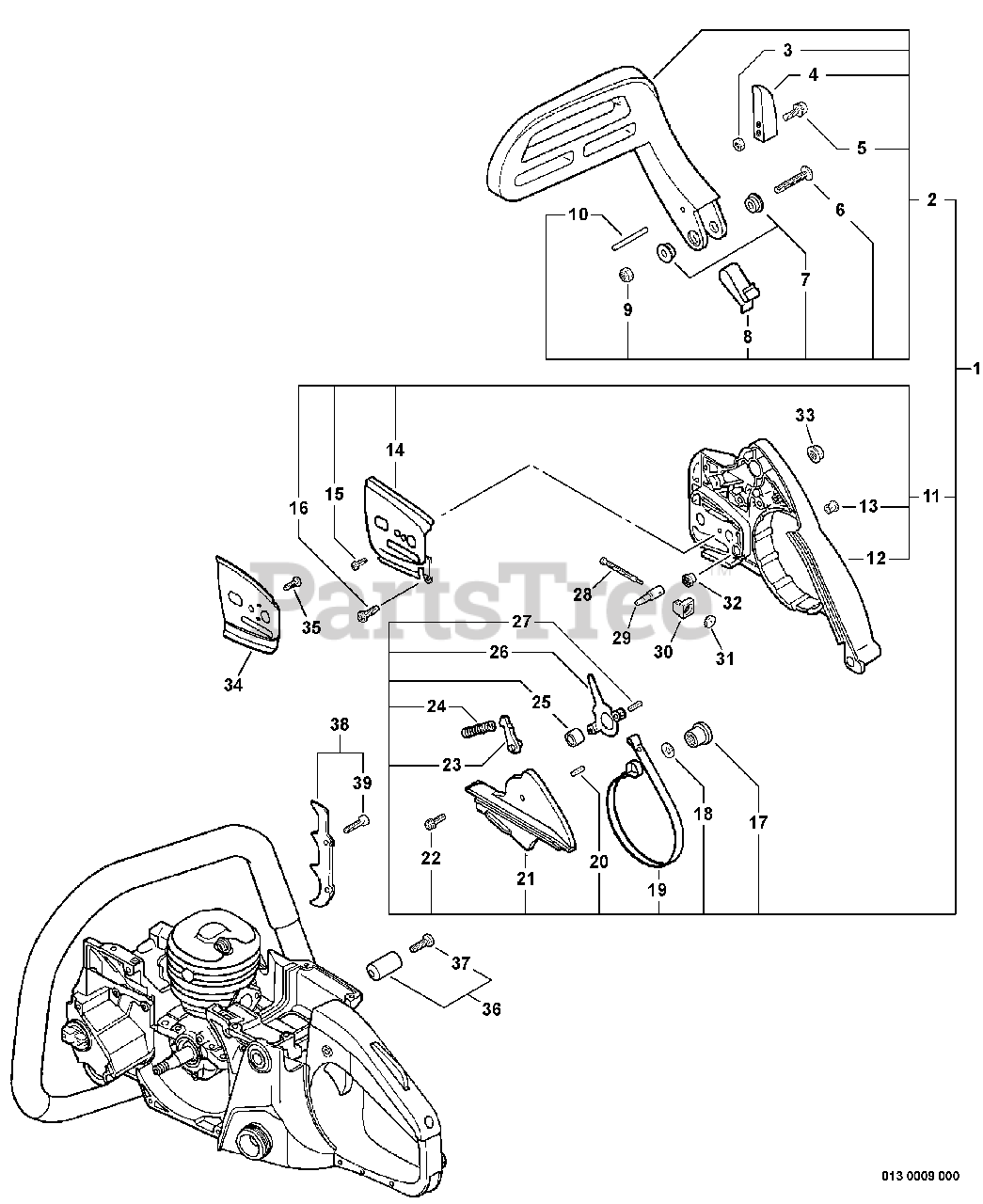

Chain Brake Parts Diagram

  • Title

1

Echo 43310039037

CHAIN BRAKE ASSY
(Superseded to 43310039038)

Note: INCLUDES ITEMS 2-26

$84.99

$

In Stock, only 3 left!

0

2

Echo 43320139031

BRAKE LEVER ASSY
(Superseded to 43320139032)

Note: INCLUDES ITEMS 3-10

$40.99

$

Usually ships in 2-4 days

0

3

Echo 900500-00004

NUT M4

$0.99

$

In Stock, Qty 20+

0

4

Echo 43317139330

WEIGHT, BRAKE

$9.99

$

Usually ships in 2-4 days

0

5

Echo 90023804018

SCREW 4×18

$0.99

$

In Stock, only 3 left!

0

6

Echo 9131805032

SCREW 5×32

$0.99

$

In Stock, Qty 16

0

7

Echo 43316739130

COLLAR 5.3×10×13×L5

$3.49

$

In Stock, Qty 20+

0

8

Echo 43311438331

SPRING, FLAT

$7.99

$

Usually ships in 2-4 days

0

9

Echo 90056250005

NUT, LOCK M5

$1.49

$

In Stock, Qty 20+

0

10

Echo 90033030240

PIN 3×24

$0.99

$

In Stock, Qty 20+

0

11

Echo P021001280

SPROCKET GUARD ASSY
(Superseded to P021001281)

Note: Includes ITEMS 12-16

$29.99

$

In Stock, only 3 left!

0

12

Echo 43300539334

GUARD, SPROCKET
(Superseded to 43300539335)

$29.99

$

In Stock, only 3 left!

0

13

Echo V162000020

PLUG

Note: NOT REQUIRED

$3.49

$

Usually ships in 2-4 days

0

14

Echo C305000001

PLATE, GUIDE - OUTER

$7.99

$

In Stock, only 2 left!

0

15

Echo 90022003006

SCREW 3×6

$0.99

$

In Stock, Qty 20+

0

16

Echo 90025304010

SCREW 4×10

$0.99

$

In Stock, Qty 9

0

17

Echo 43314235430

ADJUSTER, BRAKE

$3.99

$

In Stock, only 1 left!

0

18

Echo V304000090

WASHER 8

$1.99

$

Usually ships in 2-4 days

0

19

Echo C328000060

BAND, BRAKE

$8.49

$

In Stock, Qty 6

0

20

Echo 90034225012

PIN, SPRING 2.5×12

$1.99

$

Usually ships in 2-4 days

0

21

Echo 43331039330

COVER, BRAKE

$6.99

$

In Stock, only 2 left!

0

22

Echo 90025304010

SCREW 4×10

$0.99

$

In Stock, Qty 9

0

23

Echo 43320935430

STOPPER, BRAKE

$5.99

$

In Stock, only 1 left!

0

24

Echo 43312235430

SPRING, COMPRESSION

$3.99

$

In Stock, only 2 left!

0

25

Echo 43311538330

WASHER 5.2×12×14

$1.49

$

Usually ships in 2-4 days

0

26

Echo 43320835431

LEVER, BRAKE

$22.99

$

In Stock, only 3 left!

0

27

Echo 90033040088

PIN, SPRING 4×8.8

$1.49

$

In Stock, only 4 left!

0

28

Echo V203000110

SCREW, CHAIN TENSION

$6.99

$

In Stock, Qty 20+

0

29

Echo C309000030

TENSIONER, CHAIN

$5.49

$

In Stock, Qty 20+

0

30

Echo V355000270

COLLAR 8
(Superseded to V355000800)

$1.99

$

In Stock, Qty 20+

0

31

Echo V651000011

GEAR, BEVEL

$9.49

$

In Stock, Qty 20+

0

32

Echo V651000001

GEAR, BEVEL

$9.49

$

In Stock, Qty 20+

0

33

Echo 43301912330

NUT, FLANGE M8×1.25
(Superseded to V265000200)

$2.49

$

In Stock, Qty 20+

0

34

Echo 43301335431

PLATE, GUIDE - INNER
(Superseded to 43301335432)

$6.99

$

In Stock, only 2 left!

0

35

Echo 900220-04006

SCREW 4×6

$0.99

$

In Stock, Qty 20+

0

36

Echo 43300019831

CHAIN CATCHER KIT
(Superseded to 43300019832)

Note: INCLUDES ITEM 32

$3.49

$

In Stock, Qty 12

0

37

Echo 90022005018

SCREW 5×18

$0.99

$

Usually ships in 2-4 days

0

38

Echo 88020038330

SPIKE KIT, BUMPER

$15.99

$

In Stock, only 1 left!

0

39

Echo 90010505012

BOLT 5×12

$1.49

$

In Stock, Qty 12
