CS-520 - Echo Chainsaw (SN: C09312001001 - C09312999999) Clutch Parts Diagram

CS-520 chain saw - 50.1 cc engine (sb1080 short block). Guide bars: 16", 18", 20" - 0.050" gauge (Microlite Pro). Sawing chains: 16", 18", 20" - 0.050" gauge, 0.325" pitch (micro-lite).

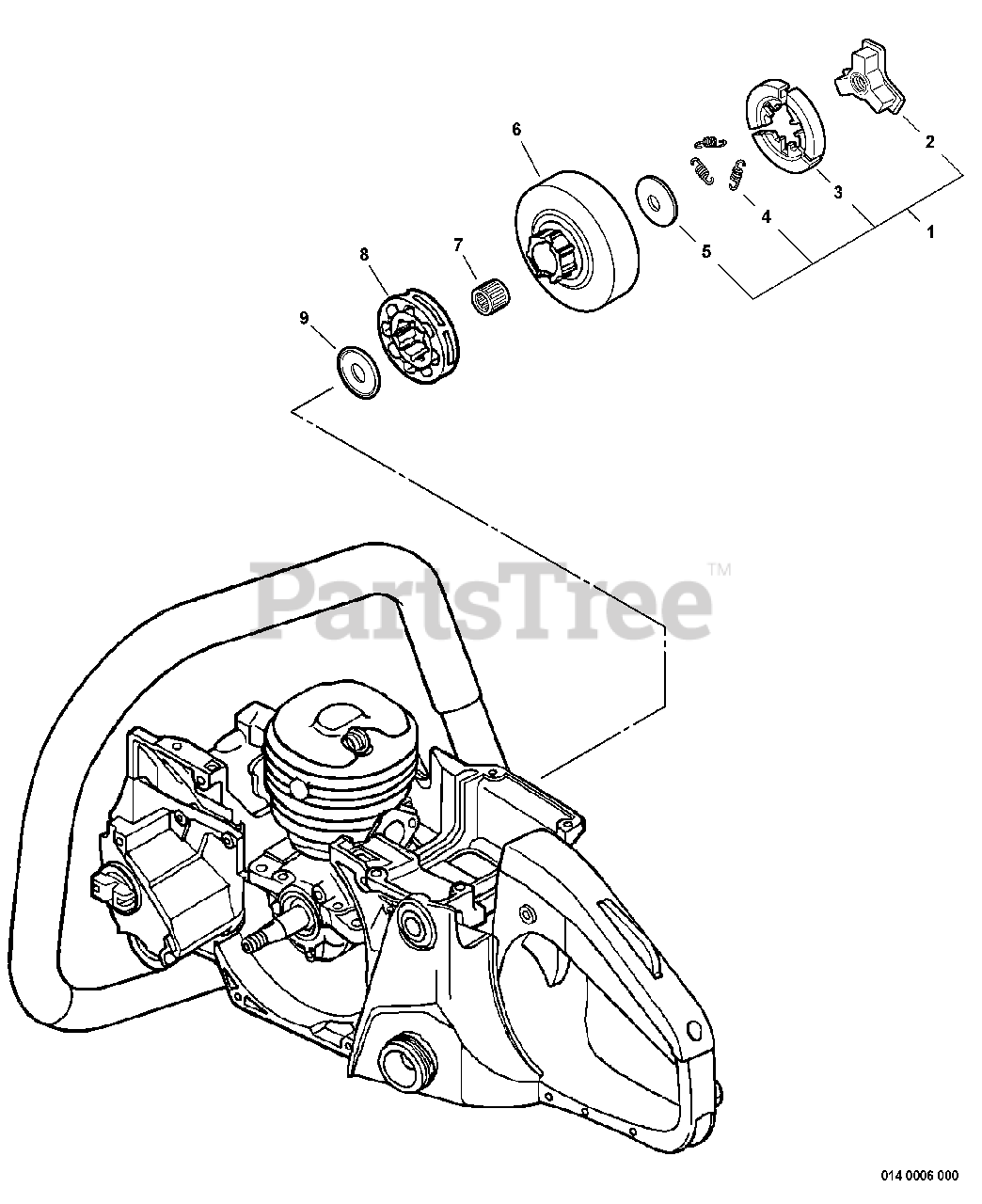

Clutch Parts Diagram

  • Title

1

Echo P021007070

CLUTCH ASSY
(Superseded to P021007071)

Note: INCLUDES ITEMS 2-5

$77.99

$

In Stock, only 1 left!

0

2

Echo A552000050

HUB, CLUTCH
(Superseded to A552000090)

$16.99

$

Usually ships in 2-4 days

0

3

Echo P021007050

SHOE SET, CLUTCH (3PCS)
(Superseded to P021007051)

$40.99

$

In Stock, only 2 left!

0

4

Echo V451000500

SPRING, TENSION

$3.99

$

In Stock, Qty 16

0

5

Echo A551000060

PLATE, CLUTCH

$9.49

$

Usually ships in 2-4 days

0

6

Echo A556000020

DRUM, CLUTCH
(Superseded to A556000021)

$43.99

$

In Stock, only 4 left!

0

7

Echo V557000010

BEARING, NEEDLE
(Superseded to V557000020)

$23.99

$

In Stock, only 1 left!

0

8

Echo 17511412530

SPROCKET, 0.325 RIM

$22.99

$

In Stock, Qty 20+

0

9

Echo A551000000

PLATE, CLUTCH

$9.49

$

In Stock, only 2 left!

0
