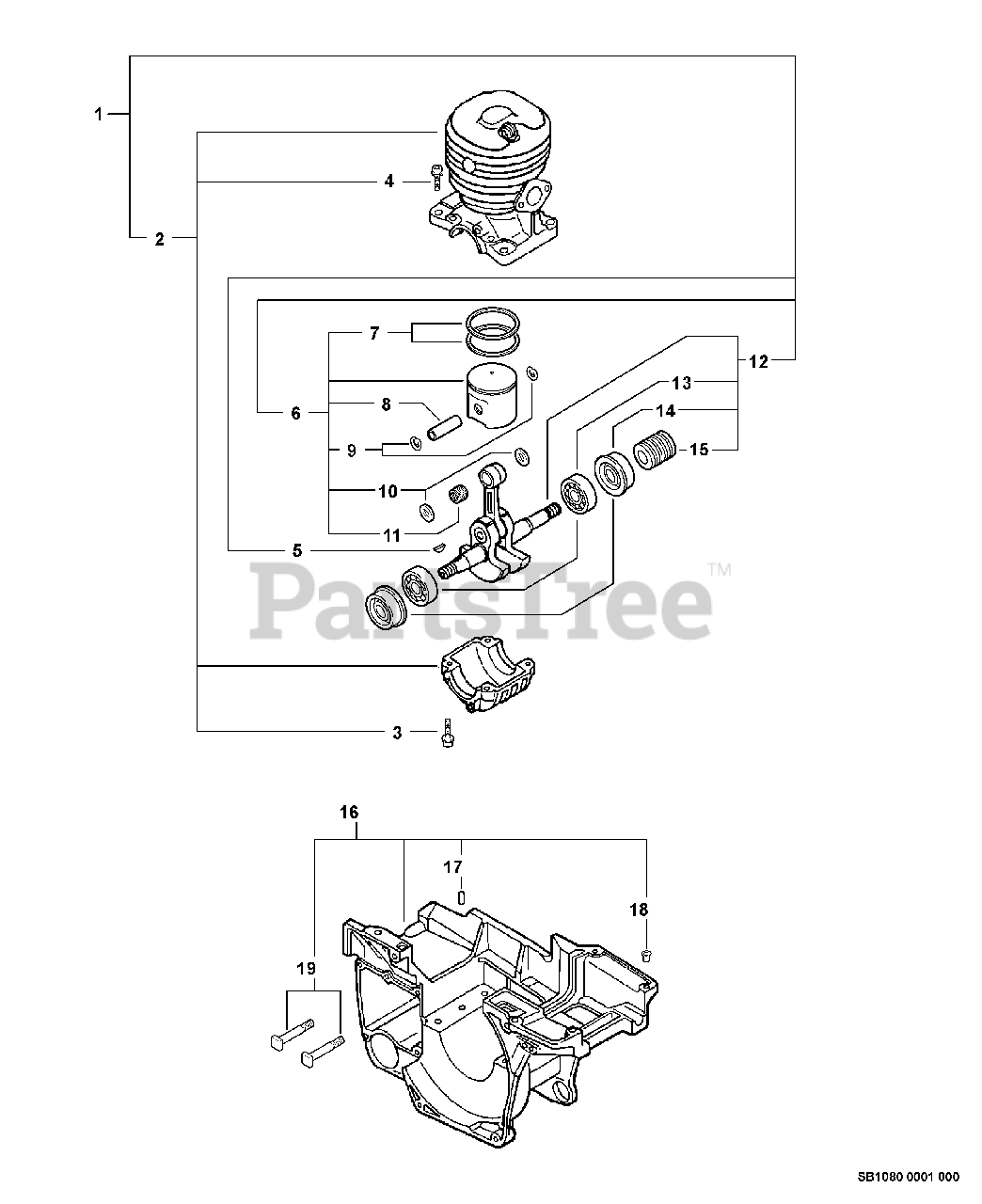

CS-520 - Echo Chainsaw (SN: C09312001001 - C09312999999) Engine, Short Block -- SB1080, Engine Cover Parts Diagram

Chainsaw

Engine, Short Block -- SB1080, Engine Cover Parts Diagram

  • Title

1

Echo SB1080

SHORT BLOCK -- SB1080

Note: INCLUDES ITEMS 2-15

$324.99

$

Usually ships in 2-4 days

0

2

Echo P021006990

CRANKCASE KIT
(Superseded to P021006992)

Note: INCLUDES ITEMS 3-4

$297.99

$

Usually ships in 2-4 days

0

3

Echo 90010605020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

4

Echo V203000170

SCREW - 5X22

$0.99

$

Usually ships in 2-4 days

0

5

Echo 10014230830

KEY

$1.49

$

In Stock, Qty 18

0

6

Echo P021006150

PISTON KIT
(Superseded to P021006152)

Note: INCLUDES ITEMS 7-11

$74.99

$

Usually ships in 2-4 days

0

7

Echo 10001139731

RING, PISTON

$9.99

$

In Stock, Qty 12

0

8

Echo V609000000

PIN, PISTON

$5.49

$

Usually ships in 2-4 days

0

9

Echo 10001532330

RING, RETAINING

$0.99

$

In Stock, only 2 left!

0

10

Echo V308000000

SPACER, PISTON
(Superseded to V308000010)

$12.99

$

Usually ships in 2-4 days

0

11

Echo 10001232330

BEARING, NEEDLE

$13.99

$

Usually ships in 2-4 days

0

12

Echo P021007140

CRANKSHAFT ASSY
(Superseded to P021007141)

Note: Includes ITEMS 13-15

$187.99

$

Usually ships in 2-4 days

0

13

Echo 90081036202

BEARING, BALL - 6202

$9.99

$

In Stock, Qty 14

0

14

Echo V508000000

SEAL, OIL

$5.99

$

Usually ships in 2-4 days

0

15

Echo V652000000

GEAR - WORM
(Superseded to V652000080)

$14.99

$

Usually ships in 2-4 days

0

16

Echo P021003100

ENGINE COVER ASSY
(Superseded to P021003101)

Note: INCLUDES ITEMS 18-20

$158.99

$

Usually ships in 2-4 days

0

17

Echo 10021503930

PIN - LOCATING
(Superseded to 90033040080)

$0.99

$

In Stock, Qty 20+

0

18

Echo 43601838330

COLLAR

$0.99

$

Usually ships in 2-4 days

0

19

Echo 43301119831

STUD, GUIDE BAR

$2.99

$

In Stock, Qty 19

0
