CS-530 - Echo Chainsaw (SN: C02803001001 - C02803999999) Auto-Oiler, Oil Tank Parts Diagram

Chainsaw

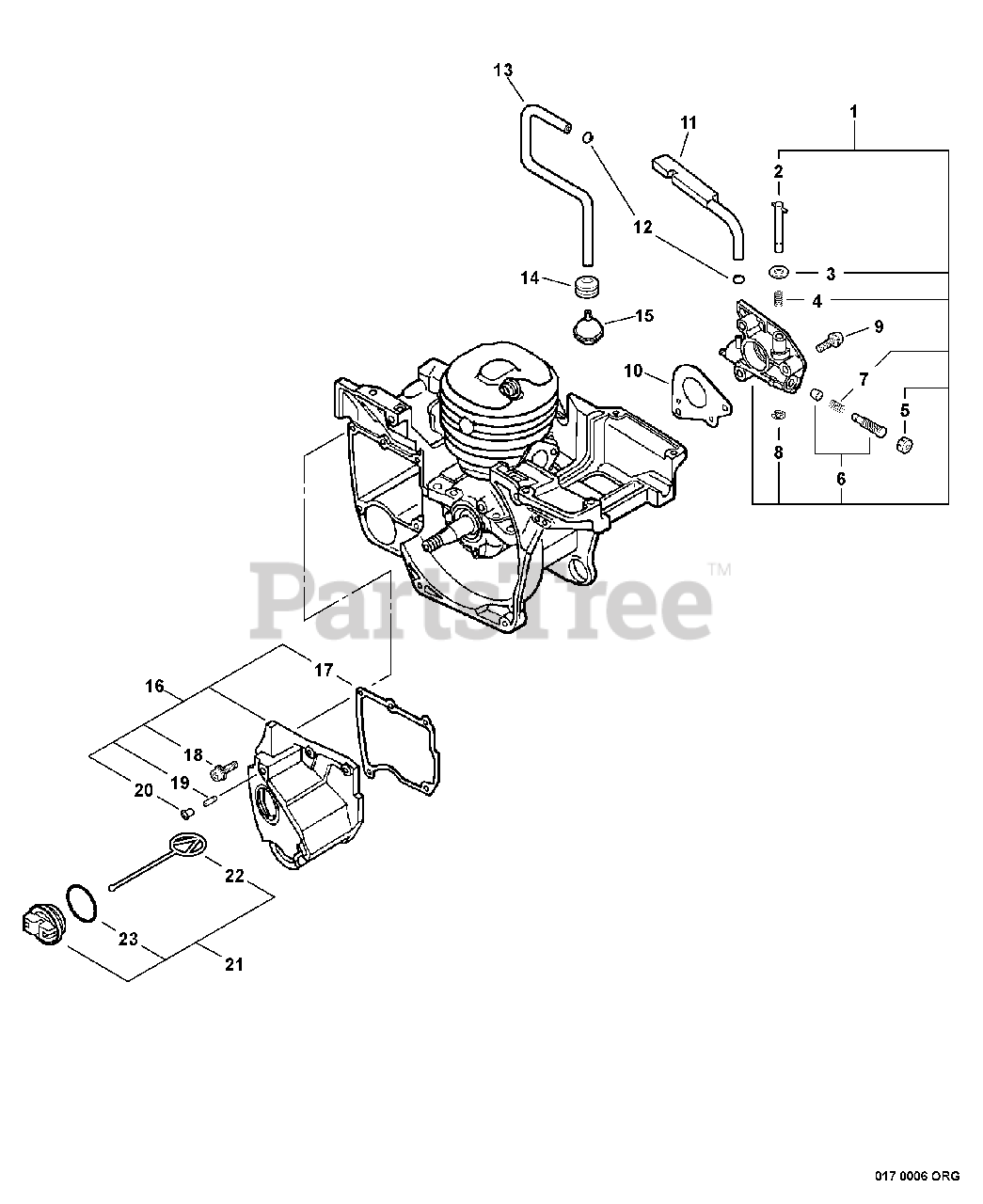

Auto-Oiler, Oil Tank Parts Diagram

  • Title

1

Echo 43700238330

AUTO-OILER ASSY

Note: Includes ITEMS 2-8

$61.99

$

In Stock, only 4 left!

0

2

Echo 43701638330

NEEDLE, ADJUST

$17.99

$

Usually ships in 2-4 days

0

3

Echo 43702937330

WASHER

$3.49

$

In Stock, only 1 left!

0

4

Echo 43701537330

SPRING

$4.49

$

Usually ships in 2-4 days

0

5

Echo 43706238330

CAP, OIL PUMP

$5.99

$

Usually ships in 2-4 days

0

6

Echo 43702437330

PLUNGER ASSY

$28.99

$

Usually ships in 2-4 days

0

7

Echo 43701938330

SPRING, PLUNGER

$4.49

$

Usually ships in 2-4 days

0

8

Echo 12312715030

RING, RETAINING

$0.99

$

In Stock, Qty 6

0

9

Echo 90022304016

SCREW - 4X16

$0.99

$

In Stock, Qty 20+

0

10

Echo 17531038330

SEAL, DUST

$1.49

$

In Stock, Qty 5

0

11

Echo 43722938331

PIPE - OIL

$

$

Not available

12

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

13

Echo 43721038330

PIPE - OIL
(Superseded to 43721038331)

$6.49

$

In Stock, Qty 6

0

14

Echo 13211512330

GROMMET

$1.49

$

In Stock, Qty 14

0

15

Echo 43620514730

FILTER, OIL

$10.99

$

In Stock, Qty 5

0

16

Echo P021012550

OIL TANK ASSY

Note: Includes ITEMS 17-20

$62.99

$

Usually ships in 2-4 days

0

17

Echo 43601938330

GASKET, OIL TANK

$2.49

$

In Stock, only 4 left!

0

18

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 7

0

19

Echo 43611413930

VENT, TANK

$7.49

$

In Stock, Qty 7

0

20

Echo 43601838330

COLLAR

$0.99

$

Usually ships in 2-4 days

0

21

Echo P021007630

CAP ASSY - BLACK

Note: Includes ITEMS 22-23

$12.99

$

In Stock, only 4 left!

0

22

Echo A365000050

CONNECTOR, CAP

$2.49

$

In Stock, only 2 left!

0

23

Echo 90072502025

O-RING - 25

$2.99

$

In Stock, Qty 7

0
